(4) Push the link arm in the direction of the arrow A, and turn the roller holder ASSY to
remove the boss.
(5) Slide the roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the roller holder ASSY.

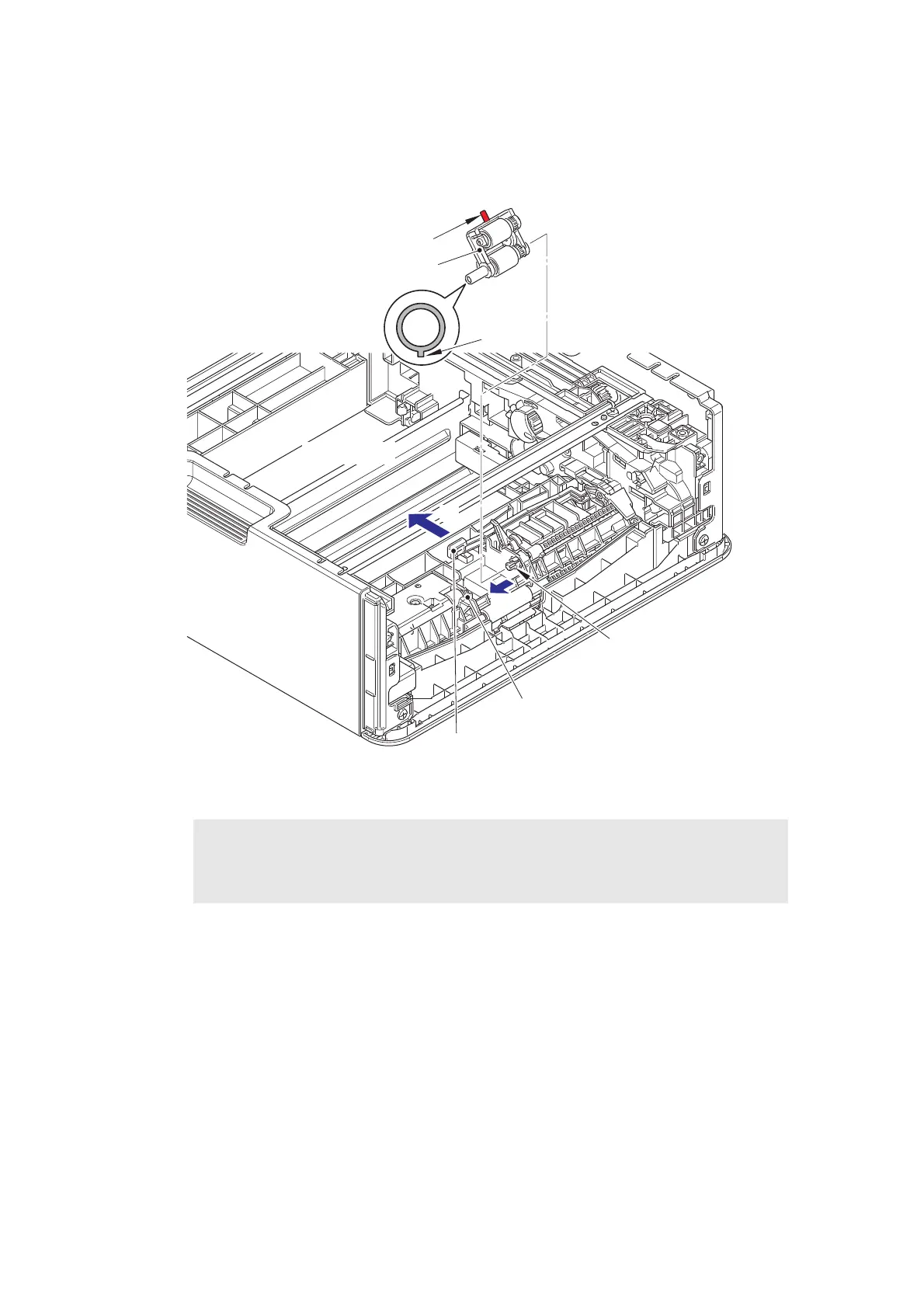

Fig. 7-24
Assembling Note:
• When attaching the roller holder ASSY, engage "A" on the shaft of the roller holder
ASSY with the hole on the feed frame ASSY, and insert the shaft into the hole.
Roller holder ASSY
Boss
Shaft
Link arm
A
B
<Bottom side>
"A"
Feed frame ASSY
<Front side>

Brother MFC-L6902DW Specifications

General

Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Display	4.85" Color Touchscreen
Paper Input Capacity	570 sheets
ADF Capacity	80 sheets
Functions	Print, Copy, Scan, Fax
Processor	800 MHz
Memory	1 GB
Scan Resolution	1200 x 1200 dpi
Fax Speed	33.6 Kbps
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	AirPrint, Google Cloud Print, Mopria, Brother iPrint&Scan
Print Speed	Up to 52 ppm - B/W (letter A)
