33

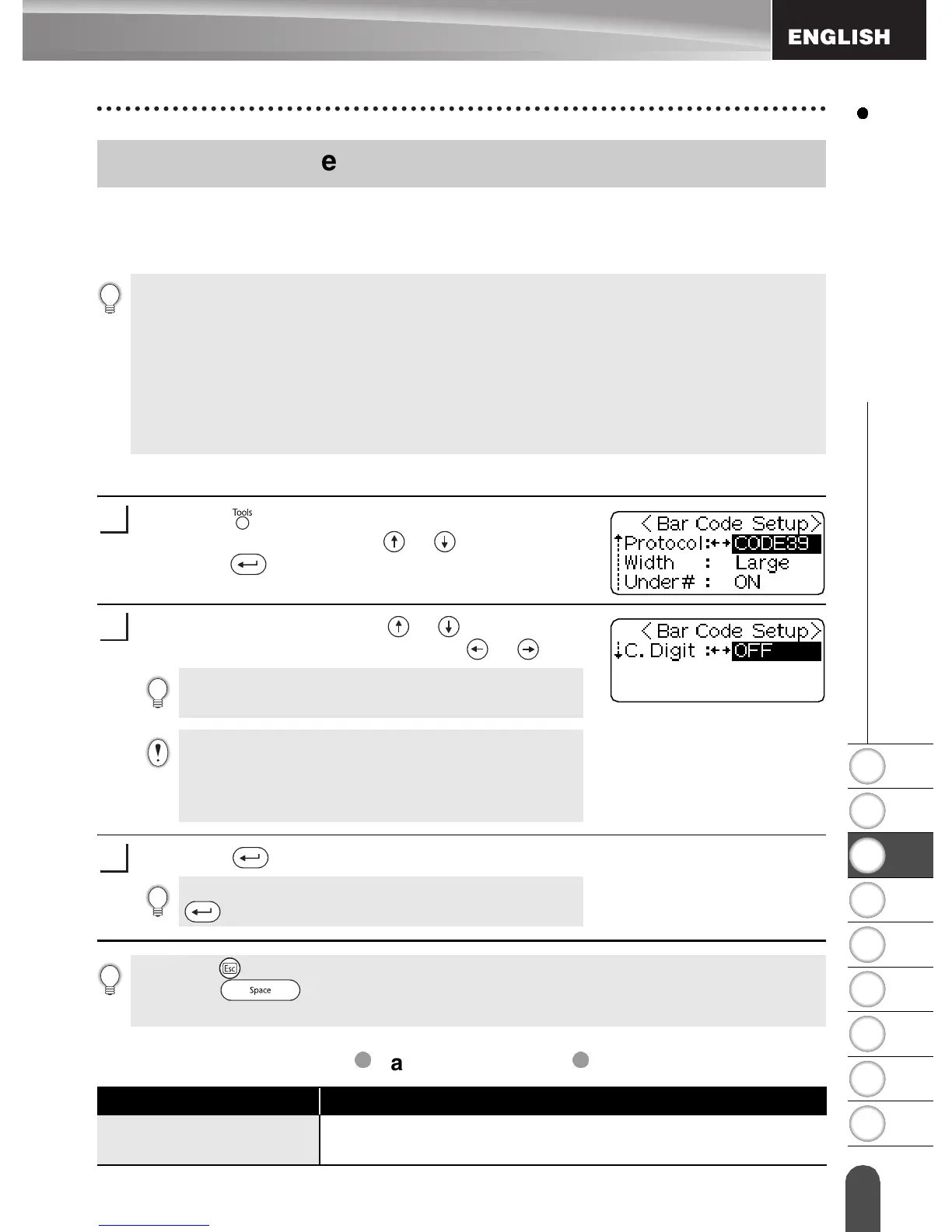

EDITING A LABEL
Creating a Bar Code Label
Using the Bar Code function you can create labels with bar codes for use with cash
registers, stock control systems or other bar code reader systems, or even asset control
tags used in an asset management system.
Setting Bar Code Parameters
Press the key to display the Tools menu, select
“Bar Code Setup” using the or keys, and then
press the key.
The Bar Code Setup screen is displayed.
Select an attribute using the or keys, and then
set a value for that attribute using the or keys.
Press the key to apply the settings.
Bar Code Settings
Creating a Bar Code Label
• The P-touch is not designed exclusively for creating bar code labels. Always check that bar
code labels can be read by the bar code reader.
• For best results, print bar code labels in black ink on white tape. Some bar code readers may
not be able to read bar code labels created using colored tape or ink.
• Use the “Large” setting for “Width” whenever possible. Some bar code readers may not be
able to read bar code labels created using the “Small” setting.
• Continuously printing a large number of labels with bar codes can overheat the print head,
which may effect printing quality.
1
The "C-Digit" attribute is only available for the
CODE39, I-2/5 and CODABAR protocols.
Characters may not appear below the bar code even
when "ON" is selected for "Under #", depending on the
tape width being used, the number of lines entered, or
the current character style settings.
2
New settings are NOT applied if you do not press the
key.
3
• Press the key to return to the previous step.
• Press the key to set the selected attribute to the default value.
• Refer to the Bar Code Settings table for a list of all available settings.
Attribute Value
Protocol
CODE39
, CODE128, EAN8, EAN13, EAN128,
UPC-A, UPC-E, I-2/5 (ITF), CODABAR
To Next Page
