MAINTENANCE PROCEDURES

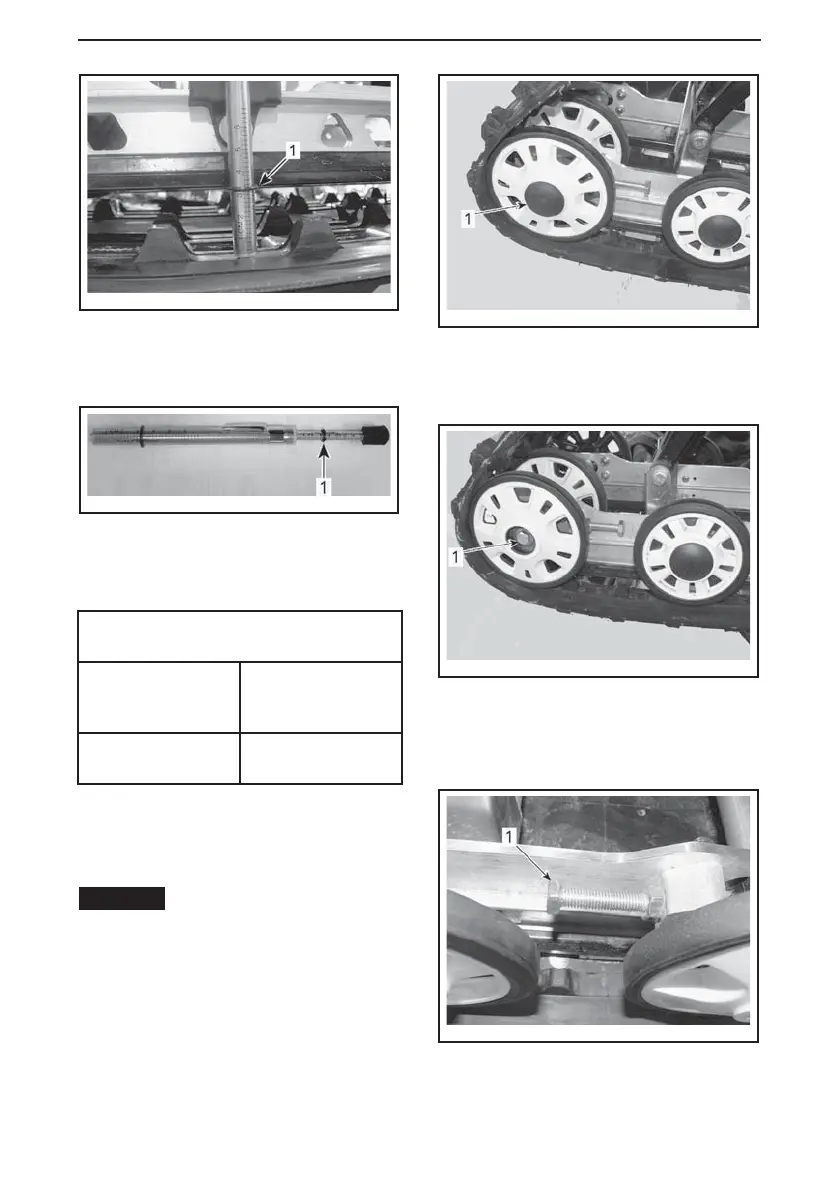

mmr2009-133-002_a
1. Deflection O-ring aligned with slider shoe
9. Read load recorded by the upper
O-ring on the tensiometer.
mmr2009-133-003_a
LOAD READING
1. Upper O-ring
10. Load reading must be as per the
following table.
TRACK ADJUSTMENT
SPECIFICATION
TRACK
DEFLECTION
SETTING
40 mm to 50 mm
(1.5 in to 2 in)
TRACK LOAD
READING
7.3 kgf (16 lbf)
11. If load reading is not in accordance
with the specification, adjust track
tension. Refer to
TRACK TEN-
SION ADJUSTMENT
.
NOTICE
Too much tension will
result in power loss and excessive
stresse on suspension components.
Track Tension Adjustment
1. Remove the tether cord cap from
engine cut-off switch.
2. Remove rear wheel caps (if so
equipped).
fmr2008-048-007_a
1. RH rear idler wheel cap
3. Loosen the rear idler wheel retain-
ing bolts.
fmr2008-048-008_a
1. RH rear idler wheel bolt
4. Tighten or loosen both adjustm ent
screws to increase or decrease
track tension.
fmr2008-048-009_a
1. RH adjustment screw
