MAINTENANCE PROCEDURES
fmo2016-003-012_b

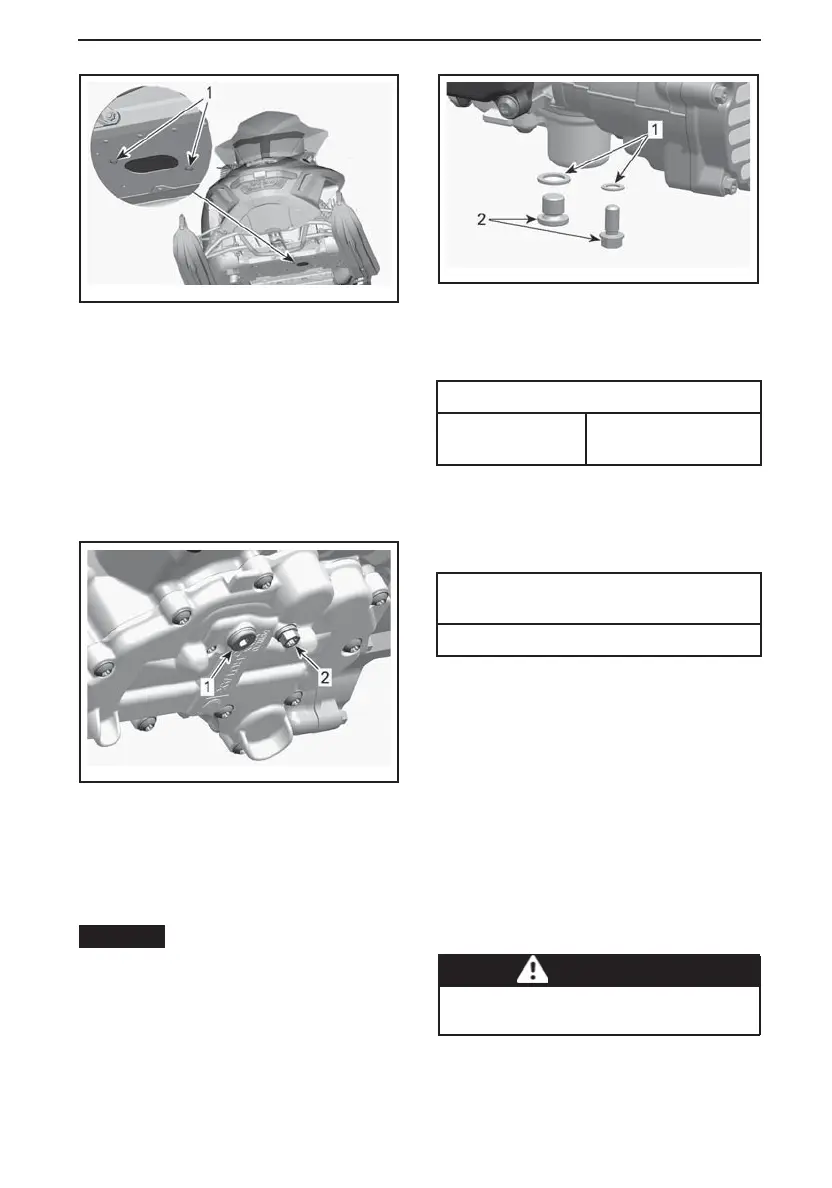

PIVOT THE ACCESS COVER
1. Retaining screws
5. Clean drain plug area.
6. Place a drain pan under the bottom
pan opening.
7. Remove engine drain plugs in the
following ord er.
7.1 Main drain plug.
7.2 Secondary drain plug.
mmr2011-070-053_a
UNDERNEATH THE ENGINE
1. Main drain plug
2. Secondary drain plug
8. Allow oil to drain completely.
9. Install NEW sealing washers on oil
drain plugs.
NOTICE
Never use a sealing
washer a second time. Always re-
place with a new one.
mmr2011-070-004_a
1. Sealing washer
2. Oil drain plug
10. Install drain plugs and tighten to
specification.
TIGHTENING TORQUE
Drain plugs
20 N•m ± 2 N•m
(15 lbf•ft ± 1.5 lbf•ft)
11. Replace
OIL FILTER
, see proce-
dure in this subsection.
12. Refill oil tank at the proper level
with the recommended oil.
APPROXIMATE ENGINE OIL
CAPACITY (WITH FILTER)
3.3 L (3.5 qt (U.S. liq.))
13. Reinstall dipstick in oil tank and
properly tighten it.
14. Start engine and let it idle for a few
minutes.
15. Ensure there are no leaks.
16. Stop engine and check oil level.
Refill if necessary.
17. Dispose oil and filter as per your lo-
cal environmental regulations.
Engine Oil Replacement
(1200 4-TEC)
WARNING
The engine oil can be very hot.
Wait until engine o
il is warm.
_______________
97
