MAINTENANCE PROCEDURES
4. Open the LH side panel, refer to
CONTROLS, INSTRUMENTS AND
EQUIPMENT
.
5. Remove the drive belt guard, refer
to
DRIVE BELT GUARD
.
6. Remove dipstick from the filler tube,
then wipe it clean.
7. Completely insert dipstick in the
filler tube.

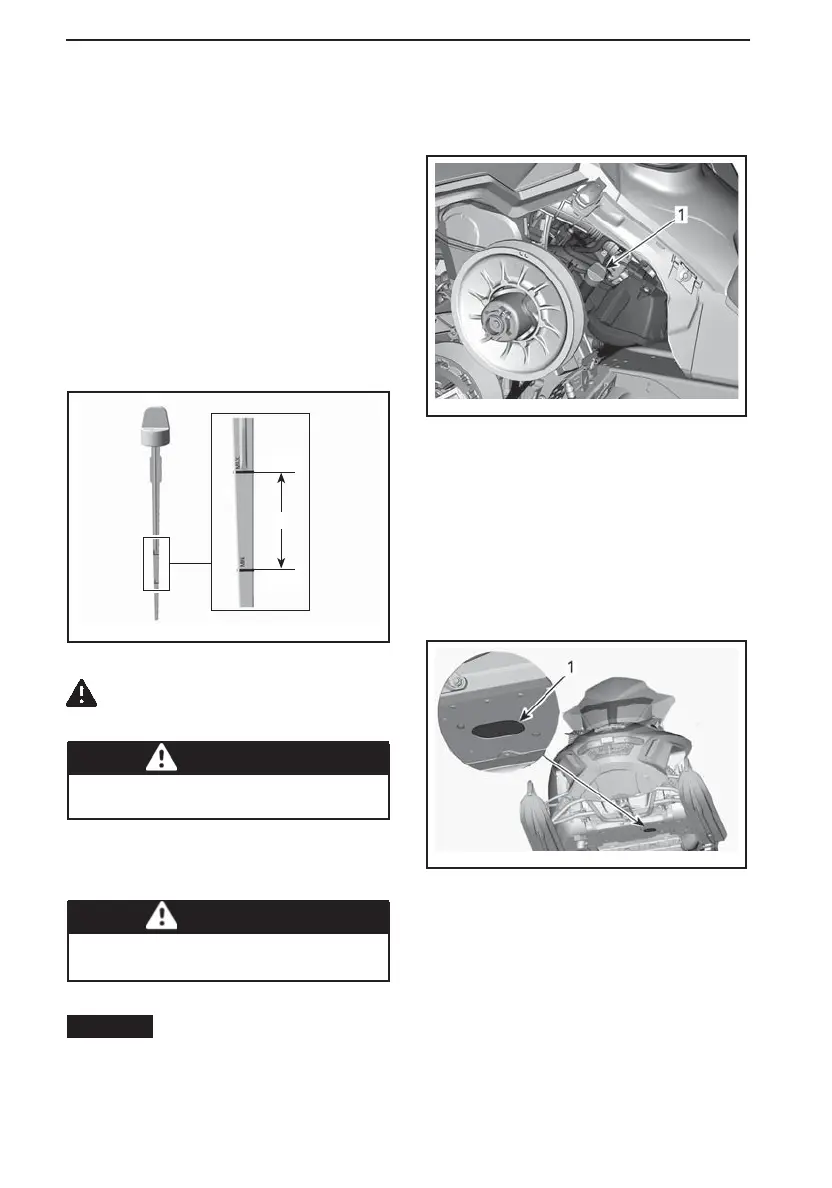

8. Remove dipstick and check the oil
level. Oil level should be between
the MIN and MAX marks as shown,
add if necessary.
1
MAX.
MIN.
mmo2009-005-027_a
1. Oil level between MIN. and MAX.
CAUTION Engine oil c an be
very hot.
WARNING
Wipe off any oil spills. Oil is highly
flammable when heated.
Engine Oil Replacement
(900 ACE)
WARNING
The engine oil can be very hot.
Wait until engine oil is warm.
NOTICE
Engine oil and oil filter
must be replaced at the sa
me time.
1. Place vehicle on a level
surface.
2. Remove the LH side panel.
3. Remove dipstick.
mmo2014-004-011_a
LH SIDE OF VEHICLE
1. Oil tank dipstick
4. From underneath the vehicle, ac-
cess the drain plug:
4.1 Remove one access cover re-
taining screw and loosen the
other.
4.2 Pivot the a ccess cover to clear
the bottom pan opening.
fmo2016-003-012_a
1. Drain plugs access cover
96
