CONTROLS, INSTRUMENTS AND EQUIPMENT
Passenger Seat Removal

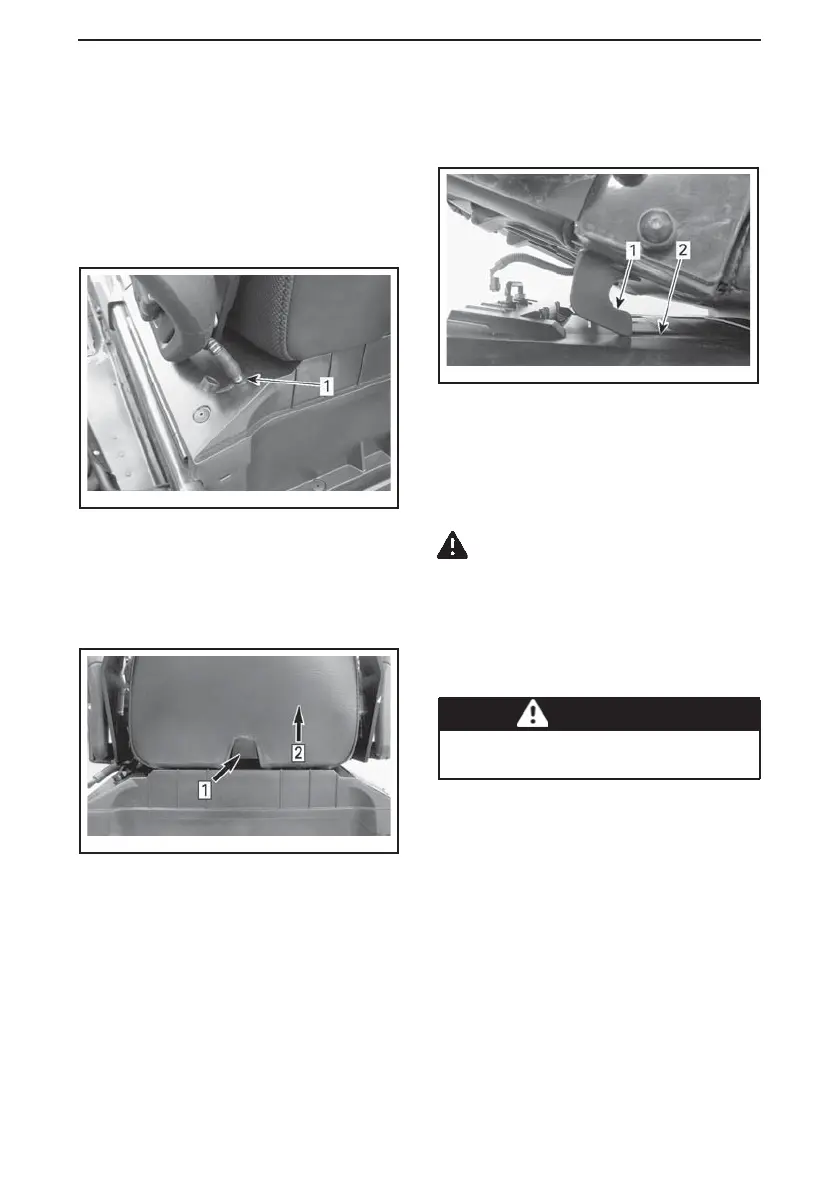

To remove the passenger seat, pro-
ceed as follows:
1. Disconnect the accessories con-
nector by pulling.
NOTE: The connector is located on the
LH side of the storage box.
fmo2014-003-010_a
1. Accessories connector
2. Install the rubber plug on the con-
nector.
3. Push the latch tab in and lift-up the
rear of seat.
mmo2009-004-017_a
Step 1: Pu sh tab
Step 2: Lift rear of seat
4. Slide seat rearward and set aside.
Passenger Seat Installation
To install the passenger seat, proceed
as follows:
1. Place the passenger seat facing for-
ward on the storage box lid.
2. Slightly incline the passenger seat
towards front and engage both seat
hooks in the storage box lid slots.
mmo2009-004-018_a
1. Seat ho ok
2. Slot
3. Push the passenger seat towards
the driver's seat and firmly push the
rear portion down to lock the pas-
senger seat in position.
CAUTION When closing lid
with the pas senger seat installed,
secure with the retaining strap.
NOTE: A d istinctive snap will be felt.
Double check that the seat is secure by
giving it a tug to confirm proper latch-
ing.
WARNING
Make sure seat is securely latched
before riding.
4. Connect the accessories connector.
15) Passengers Handholds
(If Equipped)
Commander Grand Tourer models
The handholds can be set at thre
edif-
ferent positions:
