TRIPOD MOUNTING BUSH:
WINDSCREEN:
TEST CONNECTOR:
A 1f4" UNC threaded bush located on the rear of the instrument for
tripod mounting.
Reduces wind
noise and protects the microphone against dust, con-
densation and light precipitation. It is recommended for all outdoor
measurements.

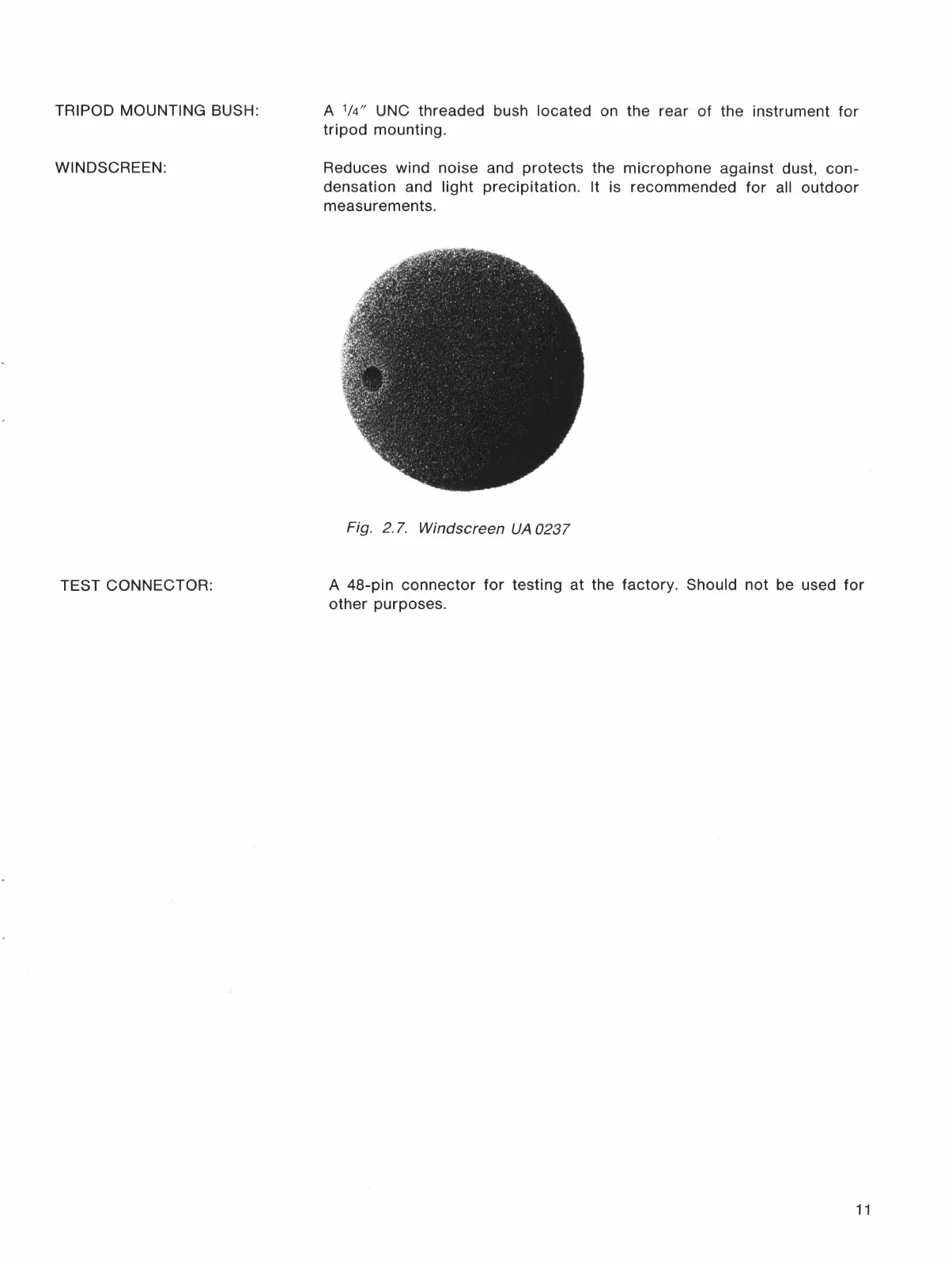

Fig. 2. 7. Windscreen UA 0237
A 48-pin connector for testing at the factory. Should not be used for
other purposes.
11
