MRI System Overview
2.1 Magnet
The ICON MRI system is equipped with a shielded permanent “always on” 1 Tesla (1 T)
magnet:

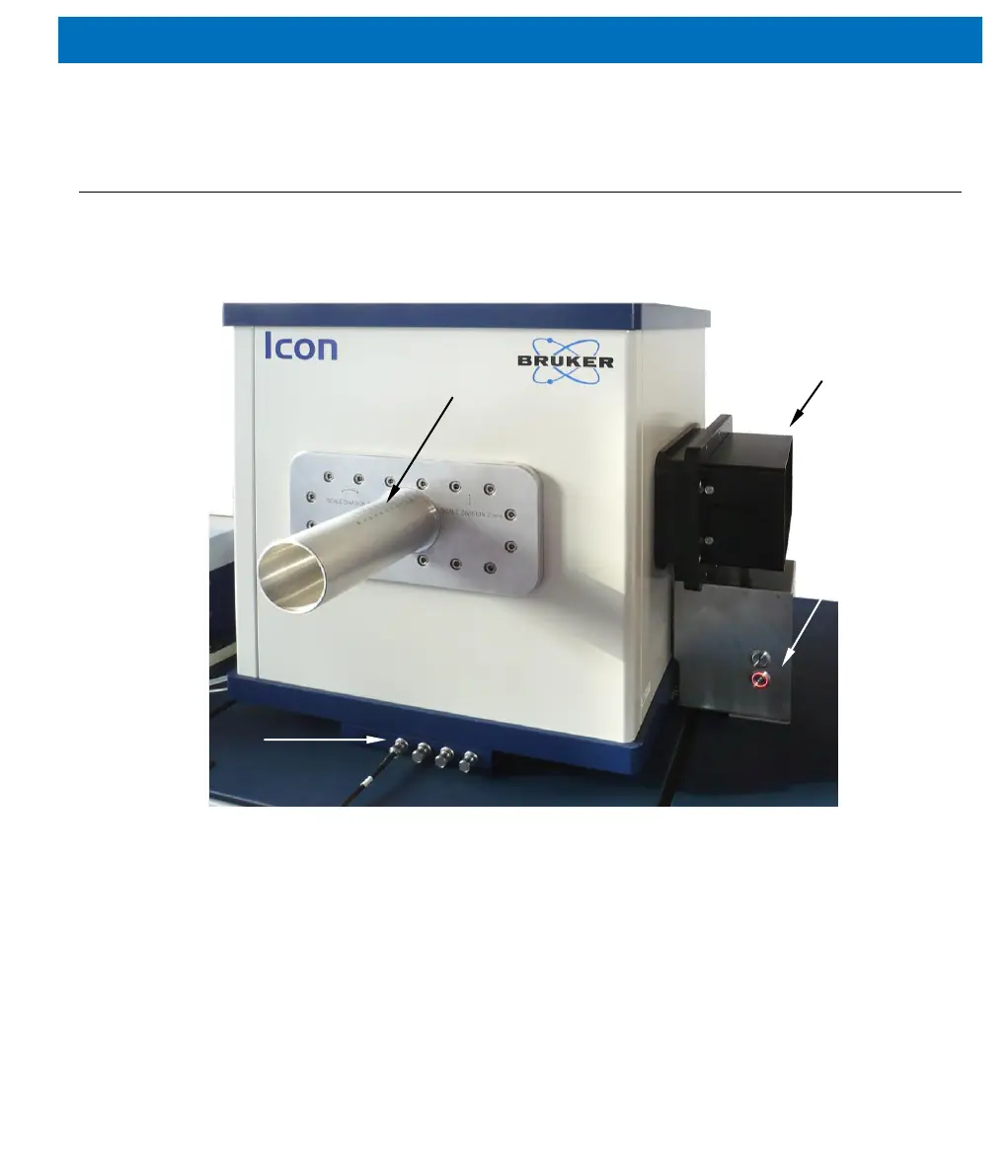

Figure 2.2: ICON permanent 1 T magnet. The main system switch for electronics (1) is located on
the right side of the magnet. Animals or placed in the magnet through the front flange (2). The
magnet has air-cooling fans on both sides (3, left fan not visible). RF Coils are attached at the
connector panel (4).
(2)
(1)
(3)
(4)
