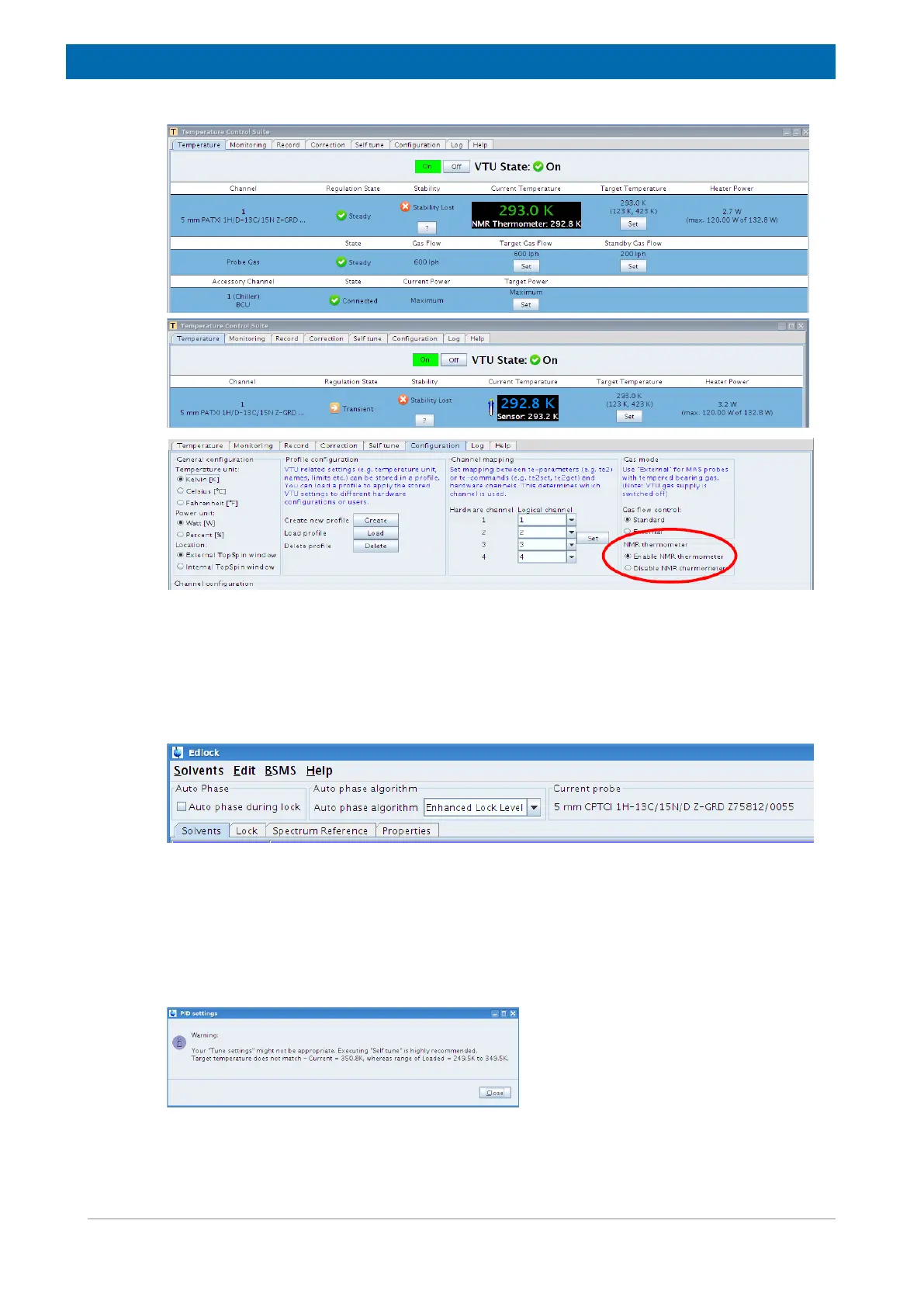

Figure 4.5: Edte Window: NMR Thermometer monitoring mode (disabled, top), regulation mode
(enabled, middle) and the selection of both modes in the Configuration menu of the edte window
(bottom).
Another important parameter is the lockphase, which can be optimized automatically by
starting autophase (BSMS display). The procedure used for autophase is selected in the
edlock window (Lock Level Default, Spectrum, and Enhanced Lock Level in the figure below).
Figure 4.6: Selection of the Auto Phase Algorithm.
To prevent saturation, the Lockpower and lockgain for both lock channels should be
optimized as well.
Since the NMR Thermometer contains both the lock and the temperature regulation
components, the PID values for the temperature regulation need to be adjusted for each by
using selftune. You will be notified by the system if a selftune is recommended:
Figure 4.7: Selftune warning about PID parameters misfit.
