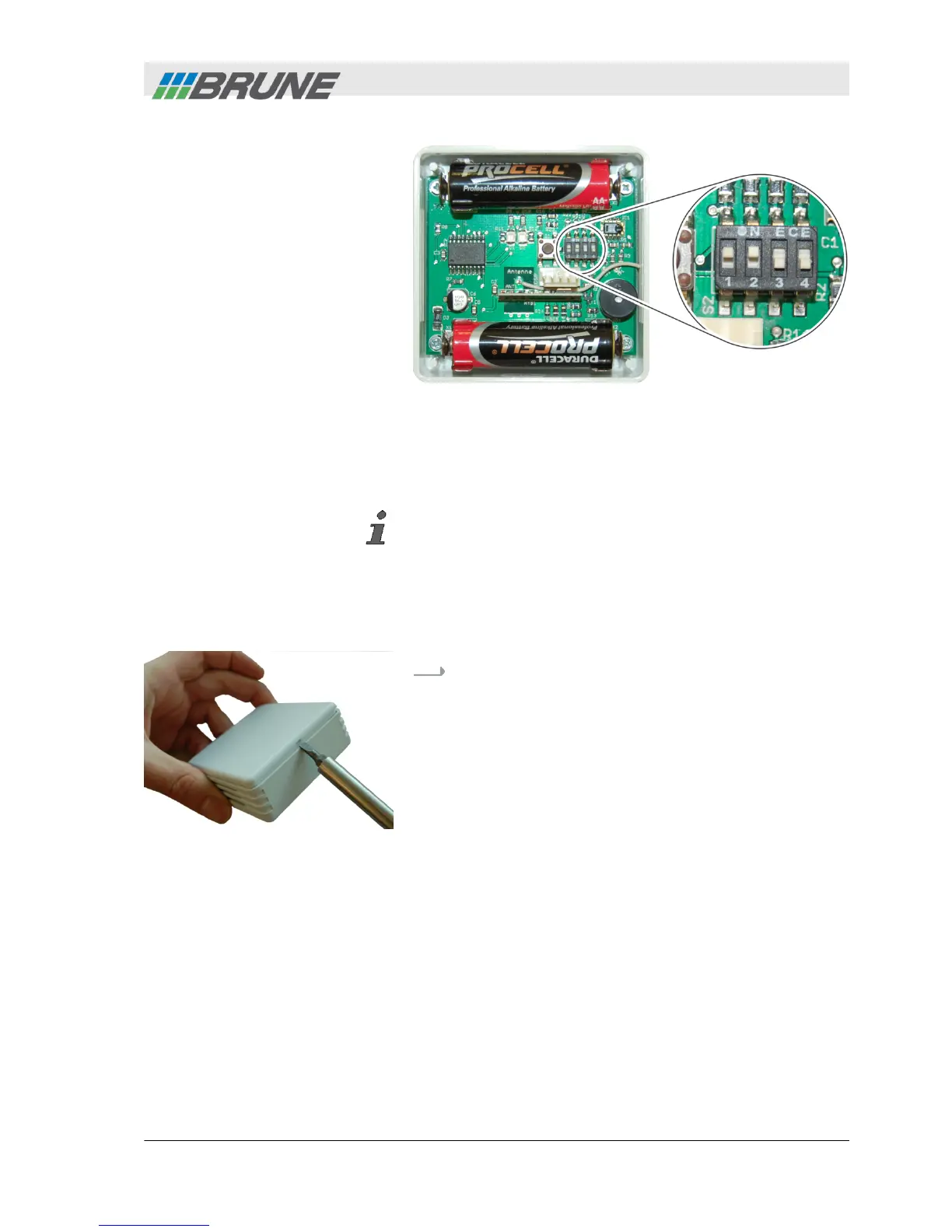

Fig. 15: Slide controls for coding
The slide controls for coding are located on the respec-
tive boards of the devices. Per slider there are only the
positions "ON = top" and "OFF = bottom". Accordingly
there are 16 different coding versions.
The coding of the humidifier and the associated wire-
less sensor system must match exactly. Otherwise
functioning is not ensured.
Personnel:
n
Operator
1.
NOTICE! The electronics of the wireless sensor
system are very sensitive. Ensure that you do
not touch the electronics and do not damage
any components.
Carefully lift and remove the cover plate of the
wireless sensor system using a small screwdriver
(Fig. 16).
Coding the wireless sensor
system
Fig. 16: Open cover
Commissioning
2013-11-04 Evaporation Humidifier B500 Professional 33
