6.
L WARNING! Toxic mercury vapors can
escape, if the UV lamp inside the stainless steel
pipe is damaged!
Remove Y-piece made of plastic (Fig. 67/1) from
the stainless steel pipe and carefully clean with
cleaning brush.
7.
Reattach the pump hoses to the stainless steel
pipe.
Ensure tight and proper fit of pump hoses. Oth-
erwise water could leak out.
1.
The lime transforming cartridge (Fig. 68/1) is
located on the right-hand side between the water
supply and the center plate. To remove the car-
tridge, remove first the evaporation filter from the
retaining lugs (Fig. 68/3) and tilt to the side.
2.
Take off pump hoses (Fig. 68/ 2) and remove lime
transforming cartridge.

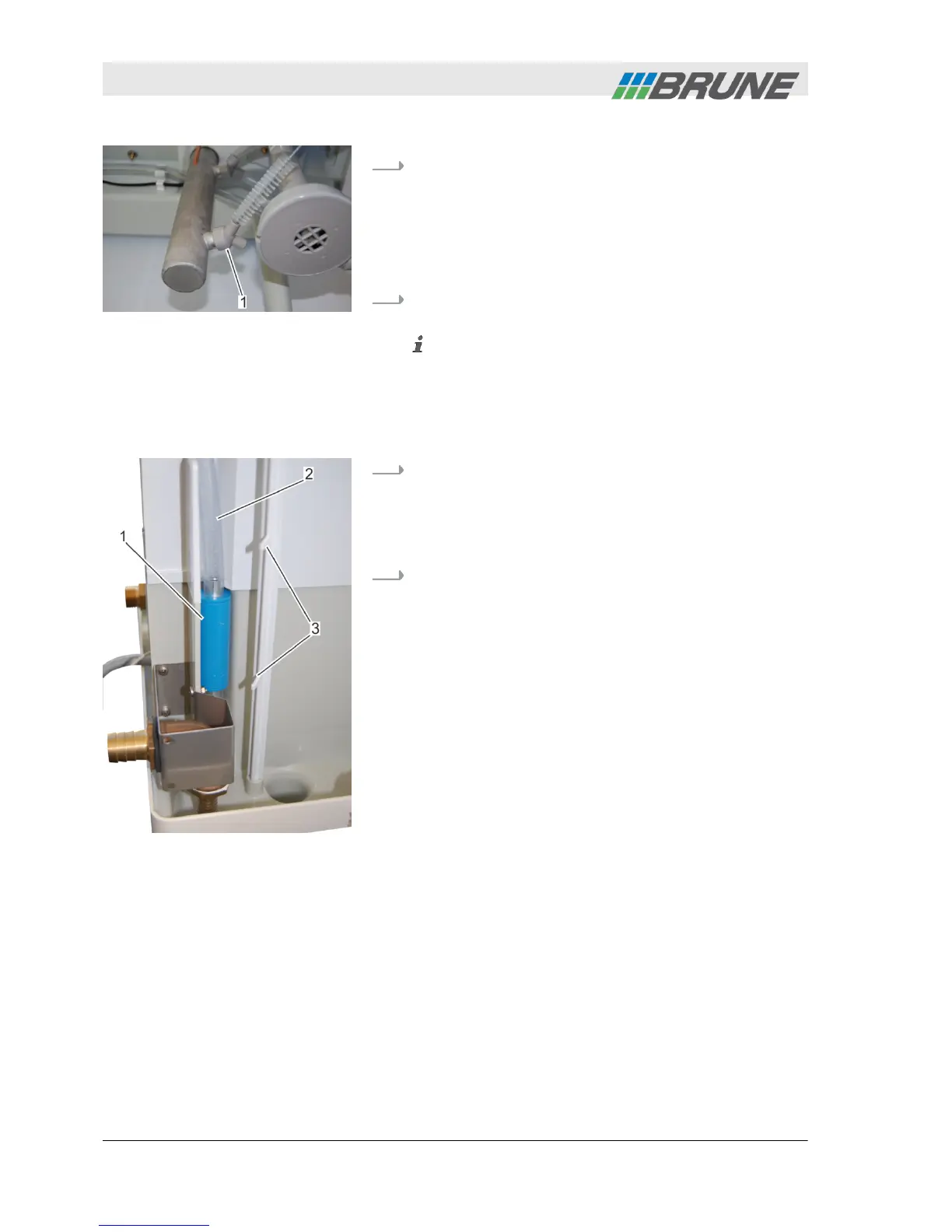

Fig. 67: Cleaning the stainless
steel pipe
Cleaning the lime trans-
forming cartridge
Fig. 68: Lime transforming car-
tridge
