10 ADJUSTING OF COMBUSTION AIR
Fireplace inserts have an opening in the floor area through which the
required combustion air flows in. The air is either supplied via an outside
air connection (air connection box) or directly from the room.
During combustion, the combustion air volume is adjusted by a control air
lever on the fireplace. ("air slider").
For fireplaces with electronic combustion control, please refer to the
instructions supplied with the electronic control unit.
Position 1 (100 % OPEN)
Lighting fire in a cold fireplace and maximum burning power.
Position 2 (75-50 % OPEN)
Main combustion phase in
- Position 2
max
with maximum wood volume (75 % open)
- Position 2
min
with maximum wood volume (50 % open)
Position 3 (CLOSED)
Glow position
All air openings are closed
CAUTION: Risk of deflagration! Set the 'Glow' position only after the
fire has burned down completely
Respect the ventilation requirements for simultaneous operation with
other fireplaces. Pay particular attention to the requirements for operation
together with ventilation systems.

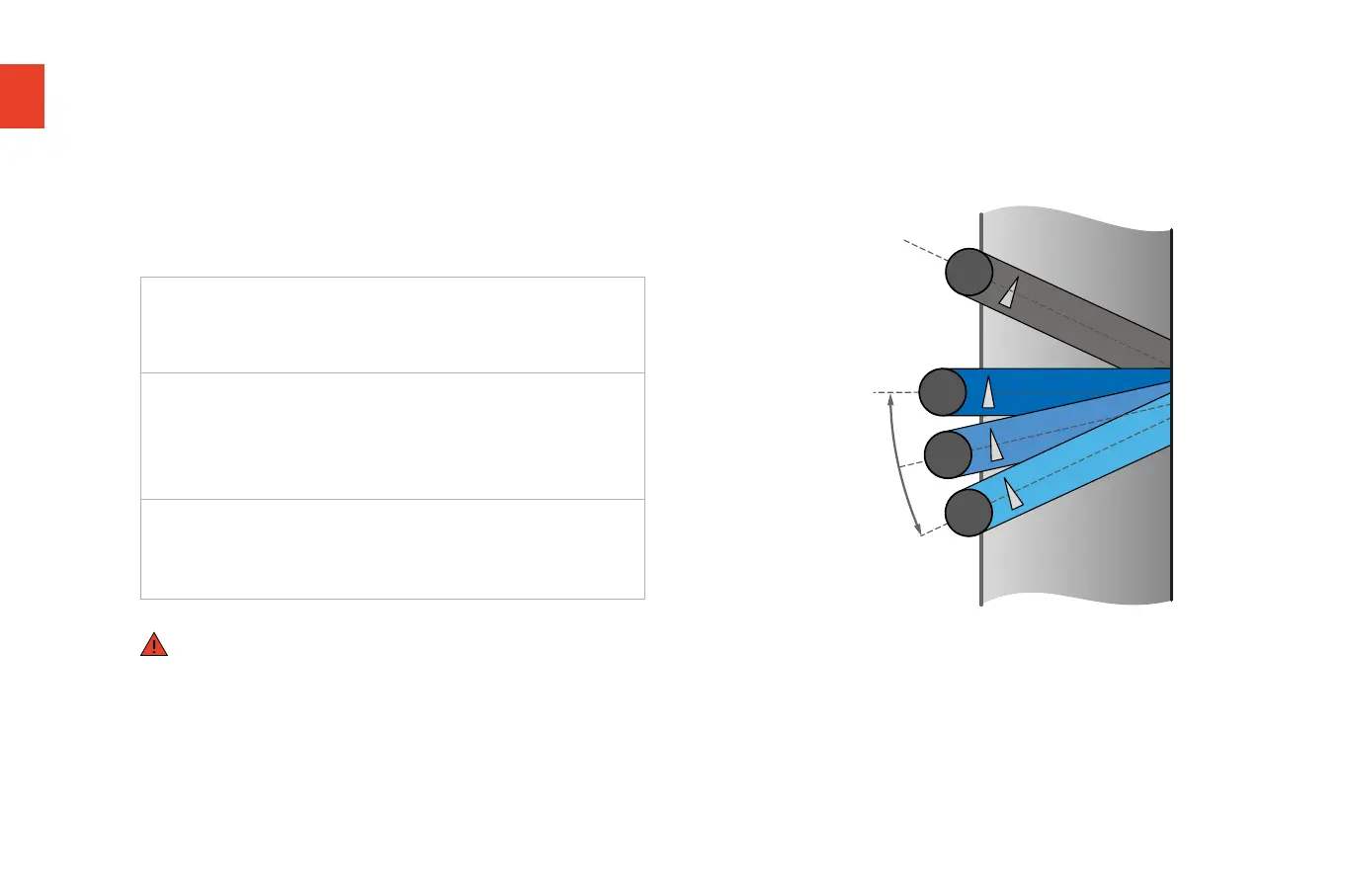

3. Gluthaltung
Glow position
2. Hauptabbrand
für min. und max.
Füllmenge
Main combustion
phase
for min. and max.
filling quantity
1. Anheizen
max. Feuerungsleistung
Lighting up
max. heating power
3
2
min
2
max
1
You will find this graphic on a scale of 1:1 as a "template" on the last
cover page.
