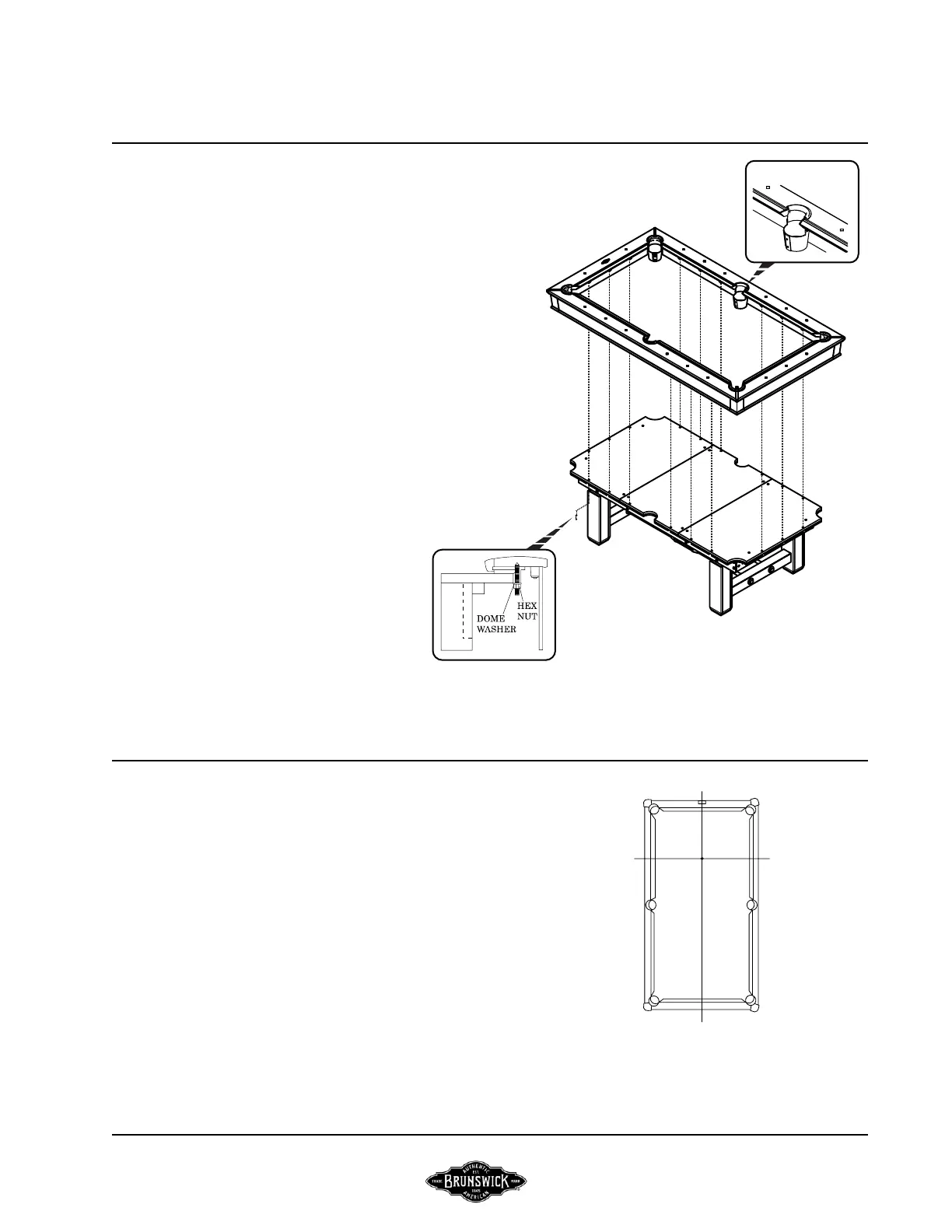

FIGURE FOUR
Step #11: Carefully turn the rail and apron assembly over
and lower over the table.
Step #12: Align the 18 machine studs with the 18 clearance
holes through the slate and lower the assembly onto the
slate.
Step #13: Thread the hex nut and dome washer onto the
machine stud (three places) at the ends of the table and
tighten securely.
Step #14: Making sure the side rails are in a straight line as
sighted down the length of the table (cushion side), fasten
the side rails securely with remaining nuts and dome wash-
ers.
Step #15: Position the two side pockets and four corner
pockets in their respective pocket openings. Fit and attach
using four nails per pocket.
FIGURE FOUR
FIGURE FIVE
Step #16: Thoroughly brush the area on which the bed
spots are to be applied. Position the bed spot and rmly roll
a ball over the spot to achieve good adhesion.
NOTE: Bed spots are self adhesive.
FIGURE FIVE
RAIL & APRON ASSEMBLY
(CONTINUED)
CANTON
BRUNSWICK INSTALLATION MANUAL PAGE 13
USE 4 NAILS
PER POCKET
HEAD
FOOT
HEAD SPOT
