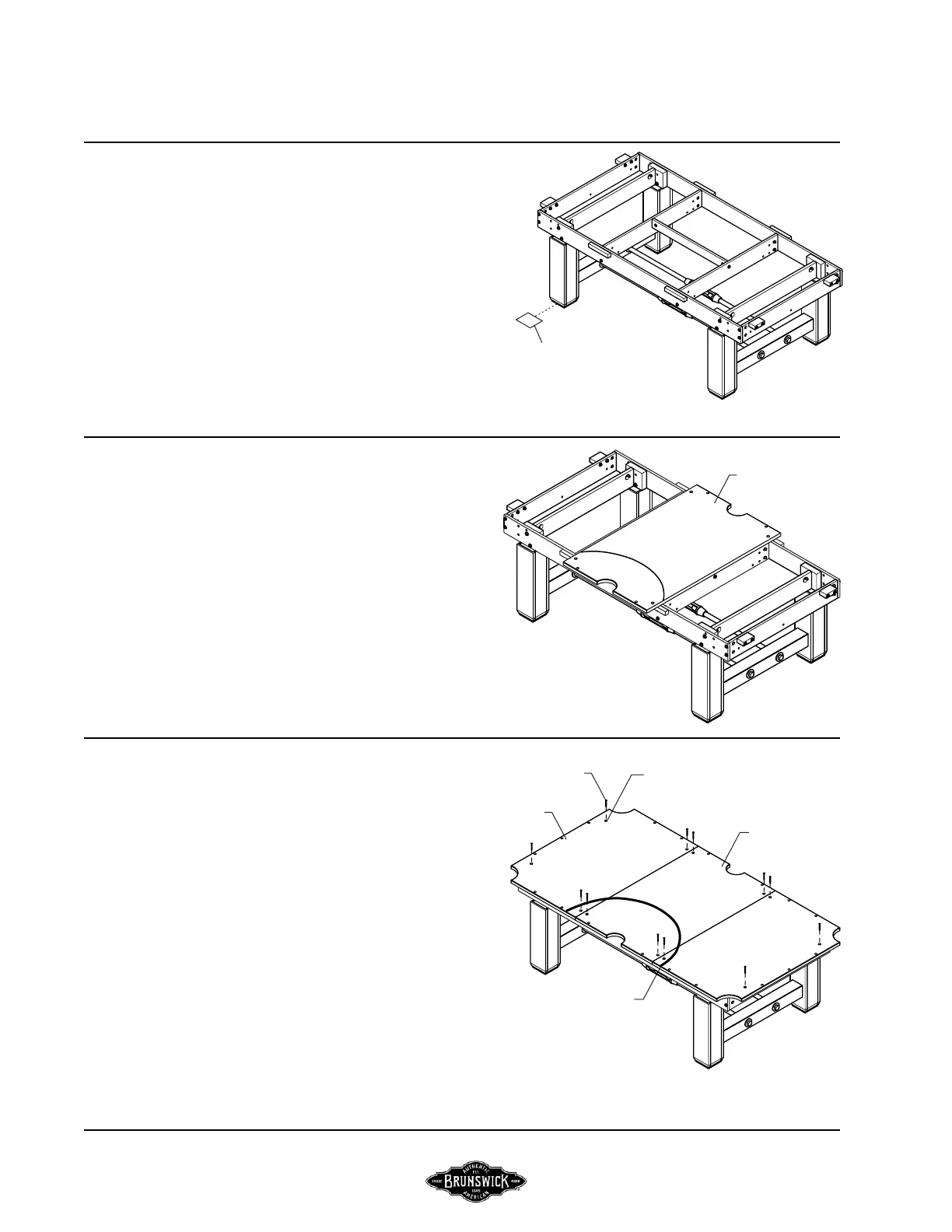

SLATE ASSEMBLY AND LEVELING
FIGURE ONE
Step #1: Place a good level on top of the baseframe and de-
termine the highest corner. Level the table by positioning
shims under the other three legs until the table is level. Be
sure that all four legs have positive bearing against the oor.
NOTE: Make top surfaces absolutely ush. Add or remove
wood if neccesary to accomplish this.
FIGURE ONE
FIGURE TWO
FIGURE TWO
FIGURE THREE
Step #3: Position the two end slate sections on the base
frame as shown. Be sure that the penciled arc forms a radius
as shown.
Step #4: Recheck to be sure the slate has an equal amount
of overhang around the base frame.
Step #5: Using the 12 countersink holes in the slate as a
template, pilot drill 5/32” diameter holes into the mounting
cleats.
Step #6: Securely fasten the end slate sections at both ends
of the table with 1/4 x 1-3/4” at head screws for UN-
FRAMED slate or #14 x 2-1/2” at head screws for FRAMED
slate.
FIGURE THREE
CANTON
SHIM
Step #2: With baseframe level and placed in its permanent
location, position the center slate selection evenly between
the two cross supports as shown, with an equal amount of
overhang at each side of the baseframe.
PAGE 6 BRUNSWICK INSTALLATION MANUAL
CENTER SLATE
SECTION
END SLATE
S E C T I O N
#14-3 X 2-1/2”
PHILLIPS HEAD
SCREWS
USE THE 12 COUNTERSUNK
H O L E S A S T E M P L A T E
TO DRILL 5/32” HOLES IN
MOUNTING CLEAT
PENCIL
ARC
CENTER SLATE
SECTION
