Bryant 352MAV - Page 39

A00279

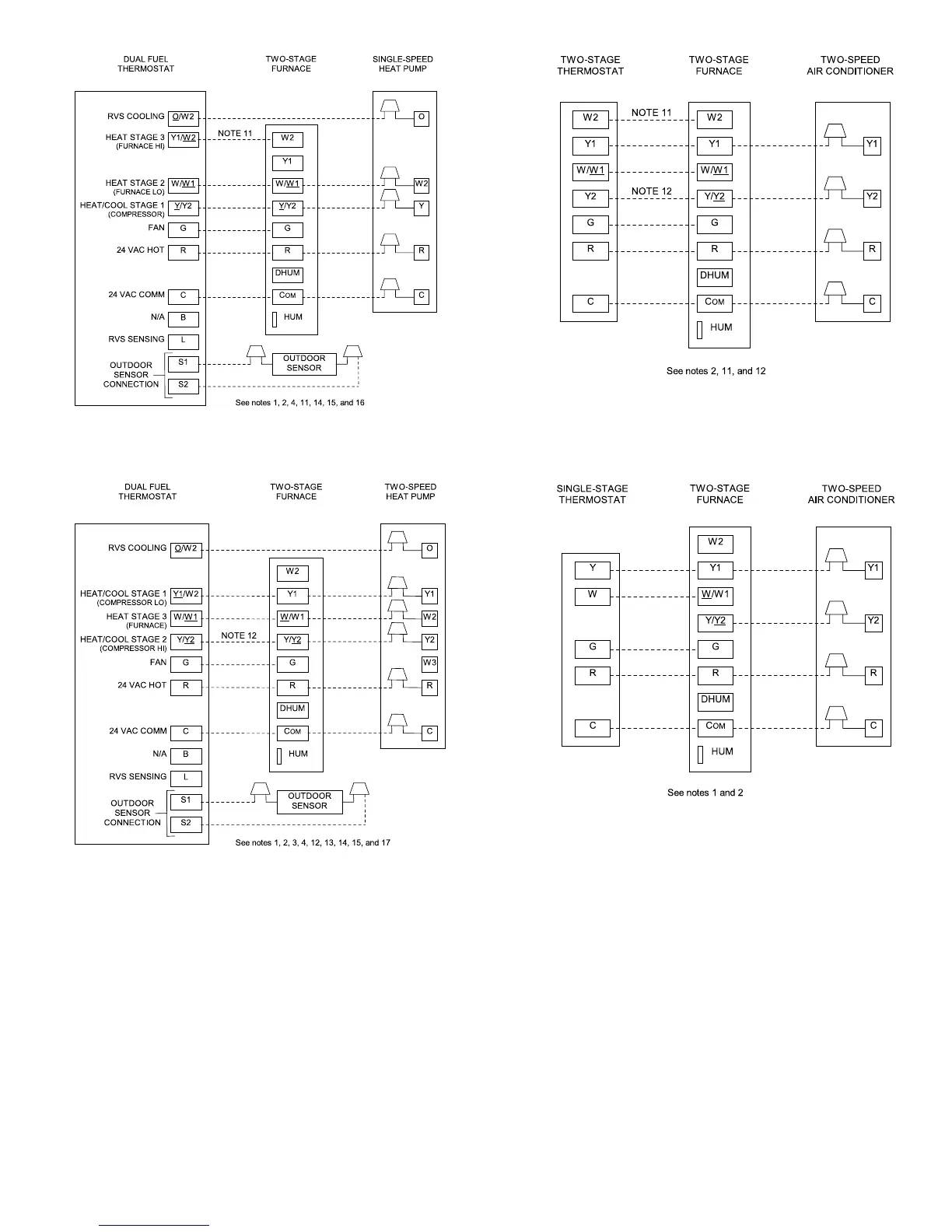

Fig. 52E—Dual Fuel Thermostat with Two-Stage
Furnace and Single-Speed Heat Pump
A00281
Fig. 52G—Two-Stage Thermostat With Two-Stage Furnace
and Two-Speed Air Conditioner
A00280
Fig. 52F—Dual Fuel Thermostat With Two-Stage
Furnace and Two-Speed Heat Pump
A00282
Fig. 52H—Single-Stage Thermostat With Two-Stage
Furnace and Two-Speed Air Conditioner
—39—
