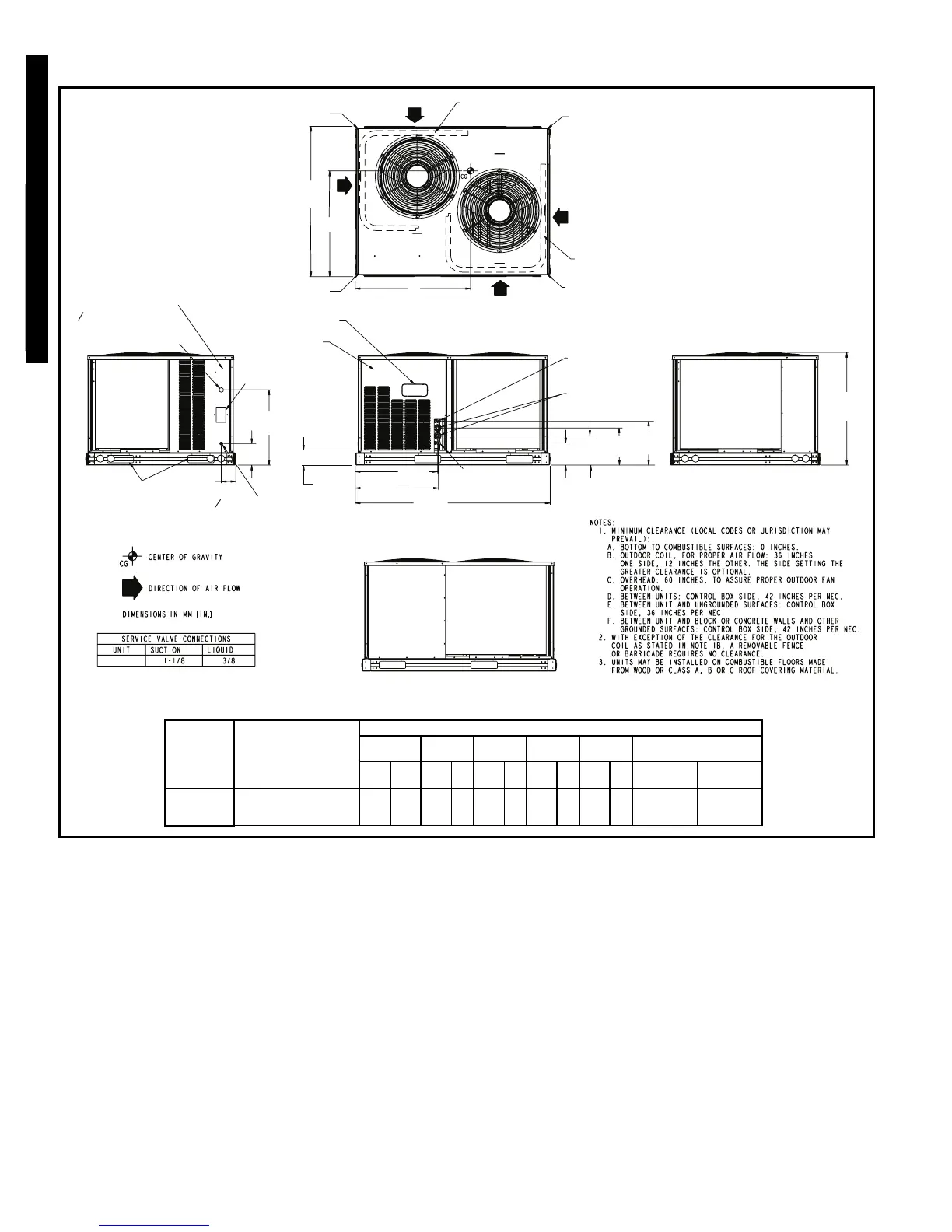

DIMENSIONS (cont)
CONVENIENCE
OUTLET LOCATION
ELECTRICAL DISCONNECT
LOCATION
CONTROL BOX
ACCESS PANEL
CORNER “D”
CORNER “A”
CORNER “B”
CORNER “C”
OUTDOOR COIL
OUTDOOR COIL
TOP VIEW
Y
1162.7
[45.78]
X
LEFT SIDE VIEW
OUTDOOR
COIL
OUTDOOR
COIL
OUTDOOR
COIL
OUTDOOR
COIL
ACCESS PANEL
O 34.5 [1.36]
POWER ENTRY
WITH 50.0/58.0/65.0 K.O.
RIGHT SIDE VIEW
FORK TRUCK SLOTS
(3 SIDES ONLY)
REAR VIEW
FRONT VIEW
COMPRESSOR
ACCESS PANEL
ACCESS
PANEL
872.8
[34.36]
582.5
[22.93]
167.5
[6.59]
111.7
[4.40]
O 22.0 [0.87] FIELD
ENTRY SERVICE PORT
BOTTOM
OF UNIT
116.7
[4.59]
SUCTION
CONNECTION
(SEE CHART
FOR SIZE)
LIQUID
CONNECTION
(SEE CHART
FOR SIZE)
LIQUID CONNECTION
(SEE CHART FOR SIZE)
637.9
[25.11]
1509.3
[59.42]
644.6
[25.38]
172.9
[6.81]
287.8
[11.33]
226.9
[8.93]
341.5
[13.45]
(in.)
(in.)
569F120
UNIT
ELECTRICAL
CHARACTERISTICS
ALUMINUM COIL
Std. Unit
Wt.
Corner
A
Corner
B
Corner
C
Corner
D
Center of
Gravity
lb kglbkglbkglbkglbkg
X
mm [in.]
Y
mm [in.]
569F120
208/230-3-60,
400/460-3-50/60,
575-3-60
488 221 102 46 143 65 139 63 104 47
873.8
[34.4]
591.8
[23.3]
569F120
50TFQ004-012
569D072-120, 576C120, 569F120
