36

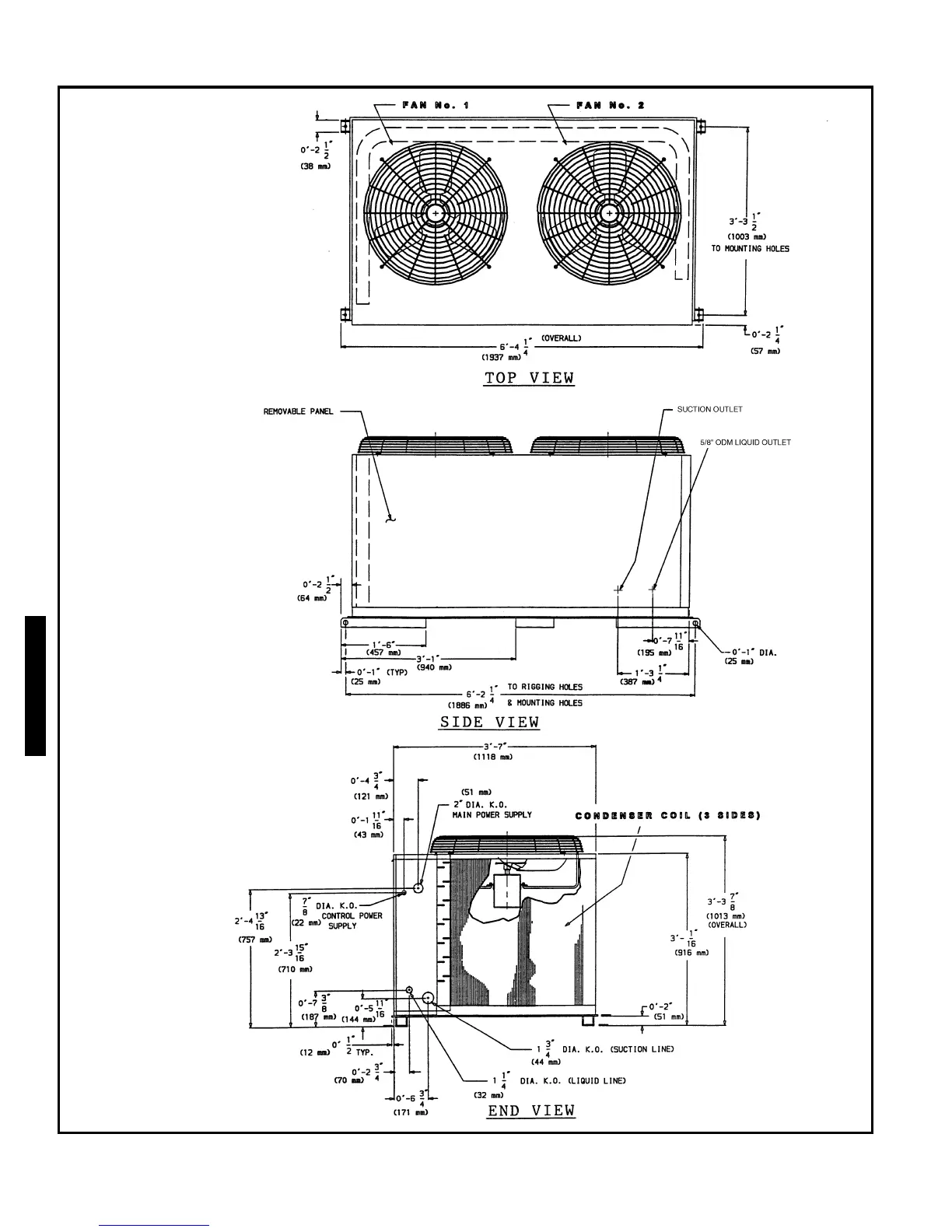

DIMENSIONS
566D150-240
NOTES:
1. Service clearances are as follows:
Side (compressor) — 3
1
/
2
ft
Side (opposite compressor) — 3 ft
Ends—2ft
Top—5ft
2. See page 38 for corner weights and
unit center of gravity.
50TFQ004-012
566D/E150-240
