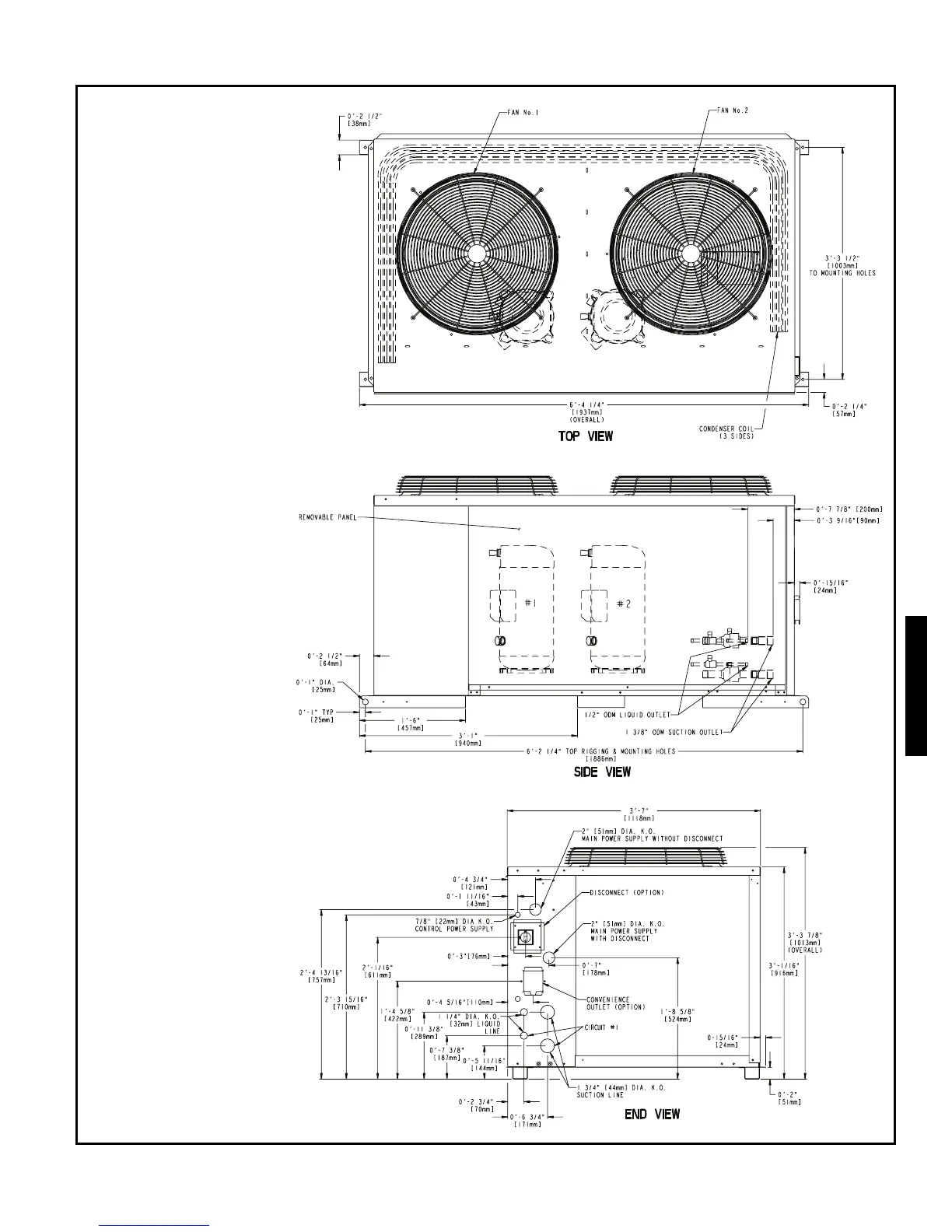

DIMENSIONS (cont)
NOTES:
1. Service clearances are as follows:
Side (compressor) — 3
1
/
2
ft (1067 mm)
Side (opposite compressor) — 3 ft (914 mm)
Ends — 2 ft (610 mm)
Top — 5 ft (1524 mm)
2. See page 38 for corner weights and unit
center of gravity.
566E150-240
50TFQ004-012
566D/E150-240
