13

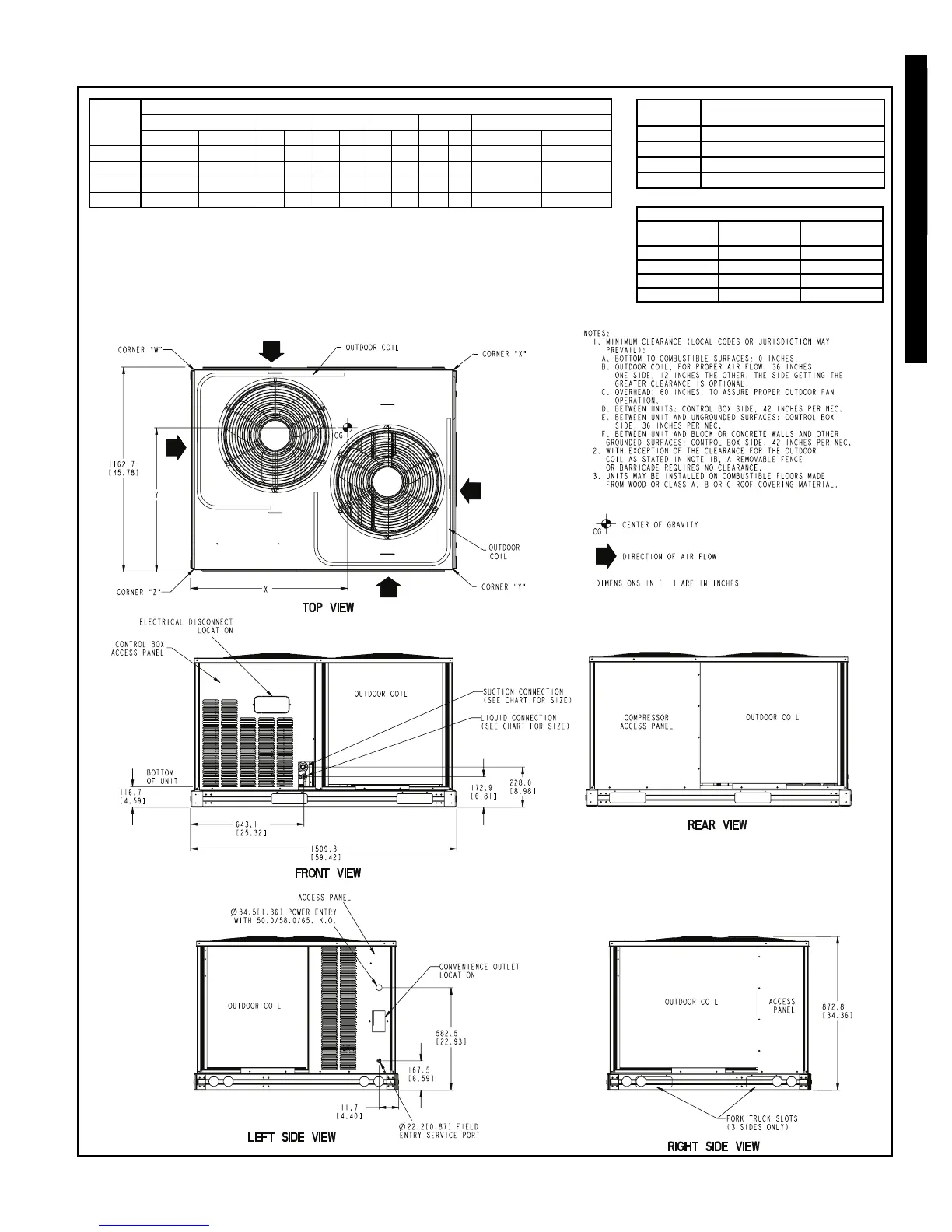

DIMENSIONS
569D072-120, 576C120
UNIT
ALUMINUM COIL
Standard Unit Weight Corner W Corner X Corner Y Corner Z Center of Gravity
lb kglbkglbkglbkglbkg X mm [in.] Ymm[in.]
569D072 300 136 62 28 103 47 62 28 72 33 831.9 [32.75] 641.4 [25.25]
569D090 383 174 86 39 123 56 85 39 89 40 822.3 [32.38] 635.0 [25.00]
569D120 430 195 84 38 166 75 66 30 114 52 812.8 [32.00] 676.3 [26.63]
576C120 575 261 55 25 265 120 88 40 167 76 927.1 [36.50] 647.7 [25.50]
UNIT
ELECTRICAL
CHARACTERISTICS
569D072 208/230-3-60, 460-3-60, 575-3-60
569D090 208/230-3-60, 460-3-60, 575-3-60
569D120 208/230-3-60, 460-3-60, 575-3-60
576C120 208/230-3-60, 460-3-60, 575-3-60
SERVICE VALVE CONNECTIONS
Unit
Suction
mm [in.]
Liquid
mm [in.]
569D072 28.6 [1
1
/
8
]9.5[
3
/
8
]
569D090 28.6 [1
1
/
8
]9.5[
3
/
8
]
569D120 34.9 [1
3
/
8
] 12.7 [
1
/
2
]
576C120 34.9 [1
3
/
8
] 12.7 [
1
/
2
]
50TFQ004-012
569D072-120, 576C120, 569F120
