64

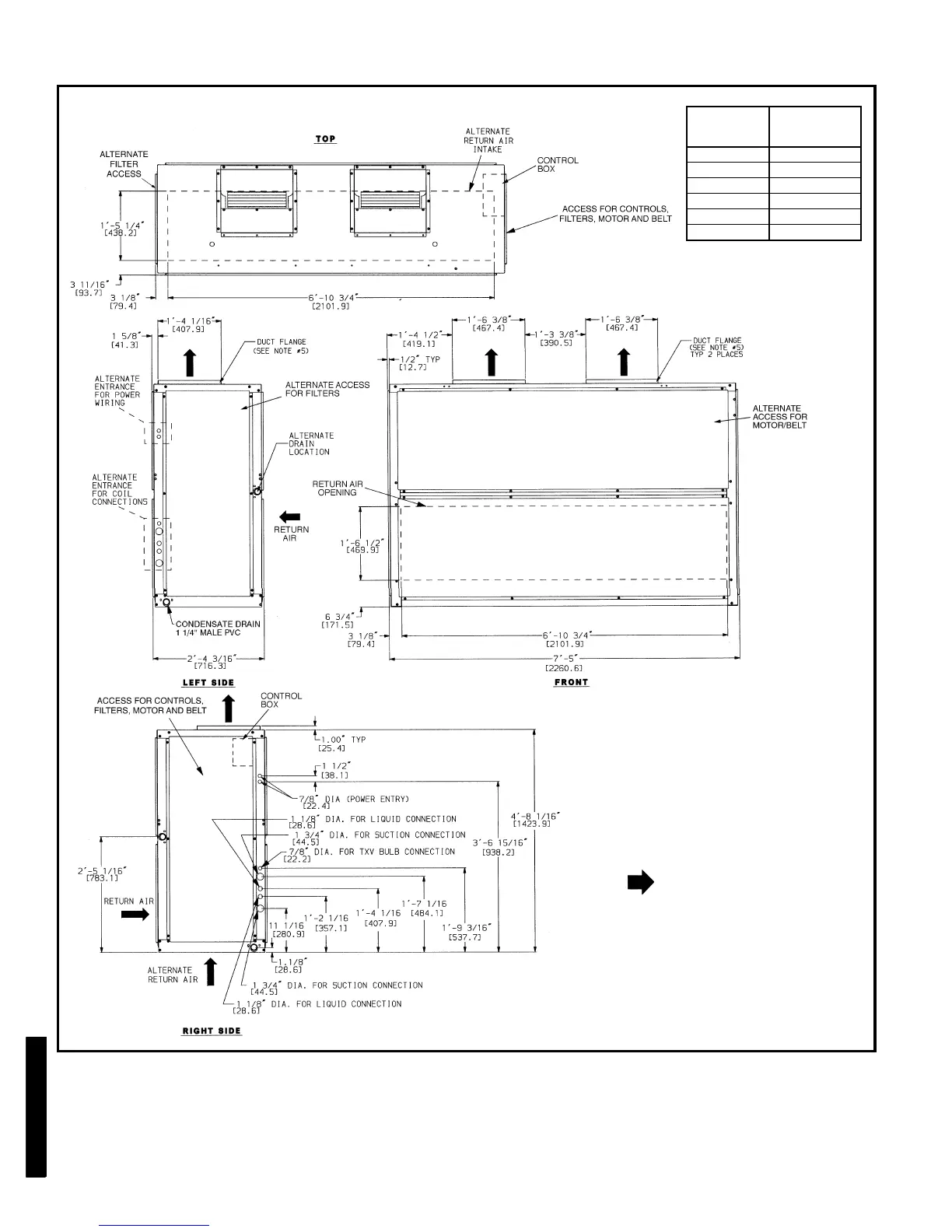

DIMENSIONS (cont)
524A-B,C150-240
.
UNIT
524A
UNIT
WEIGHT
(lb)
B150 670
B180 685
B240 690
C150 695
C180 713
C240 730
LEGEND
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Recommended clearance:
• Rear: 3″ (76.2 mm) (2′-6″ [762 mm]
with electric heat accessory)
• Front: 2′-6″ (762 mm)
• Right Side: 2′-6″ (762 mm)
• Left Side: 2′-6″ (762 mm)
• Local codes or jurisdiction may prevail.
4. Liquid piping not supplied by Bryant.
5. Duct flange is factory supplied and field
installed.
TXV—Thermostatic Expansion Valve
50TFQ004-012
524A072-300
