: Advanced Installation and Configuration Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
10

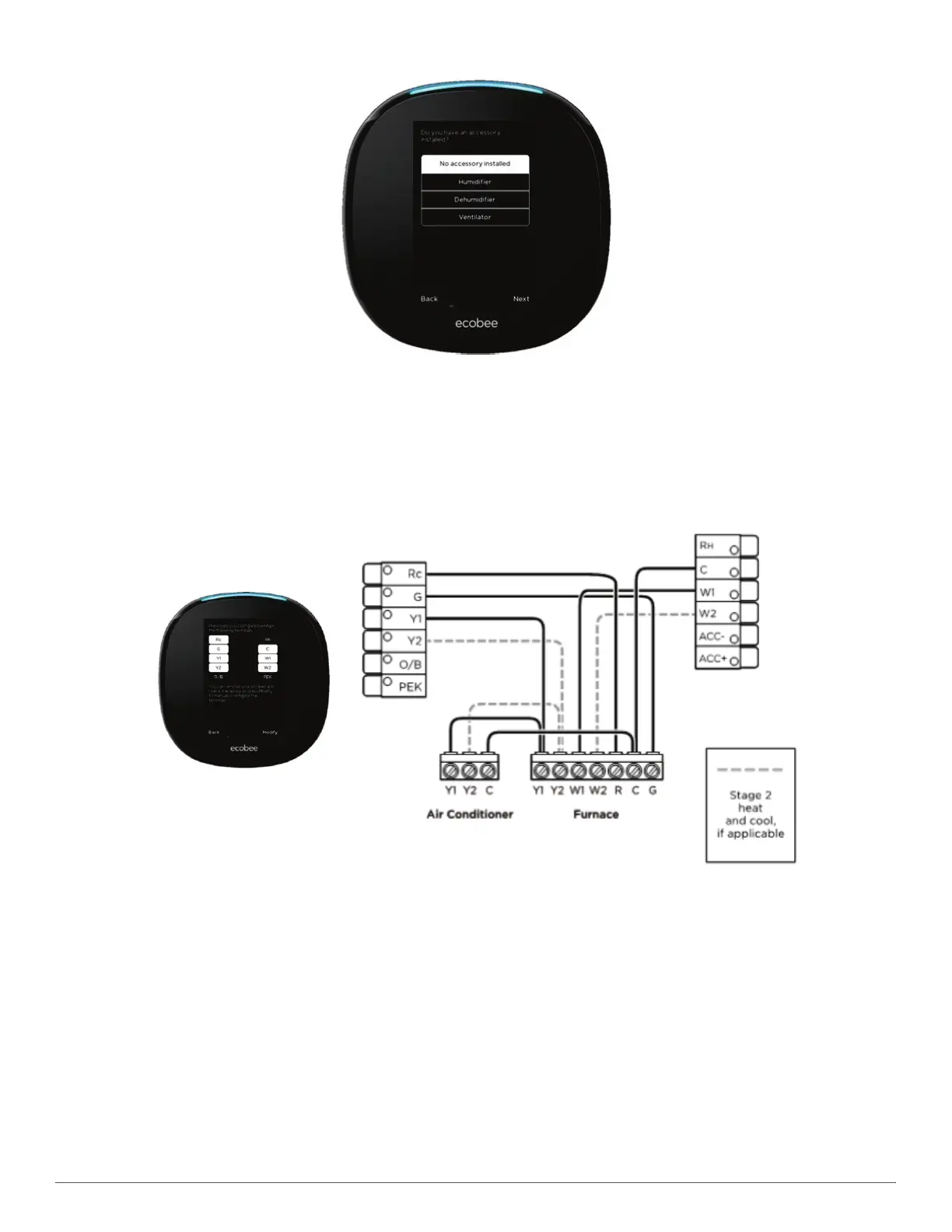

Start-Up –> Wiring -> Accessory
A200468
If an accessory is wired to the ACC terminals, the type of accessory must be selected. The screens that follow will depend on the selection made here.
Start-Up –> Dehum for Fan Coil or Furnace
Initial Start-Up –> Wiring -> Standard
A200469
During installation, the thermostat will automatically detect which terminals have wires connected. If something is incorrect, check the terminations at
the thermostat backplate and at the equipment.
In rare cases, the thermostat will not be able to detect certain wires. In this case they will need to be manually Modified on the screen. Select Modify
and then select the wires that are connected. An example of this would be if a Venstar Add-A-Wire Kit is installed.
To Next Page
