Bryant PREFERRED T6-NAC User Manual

56
WIRING DIAGRAMS(cont.)
Thermostat Furnace Air Conditioner
W2
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W1
W/W1
Compressor Y/Y2
Y/Y2
Y
Not Used Y1
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM COM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Outdoor Sensor *
Remote Room
Sensor *
* Indicates connection may not be required/available.
A09159

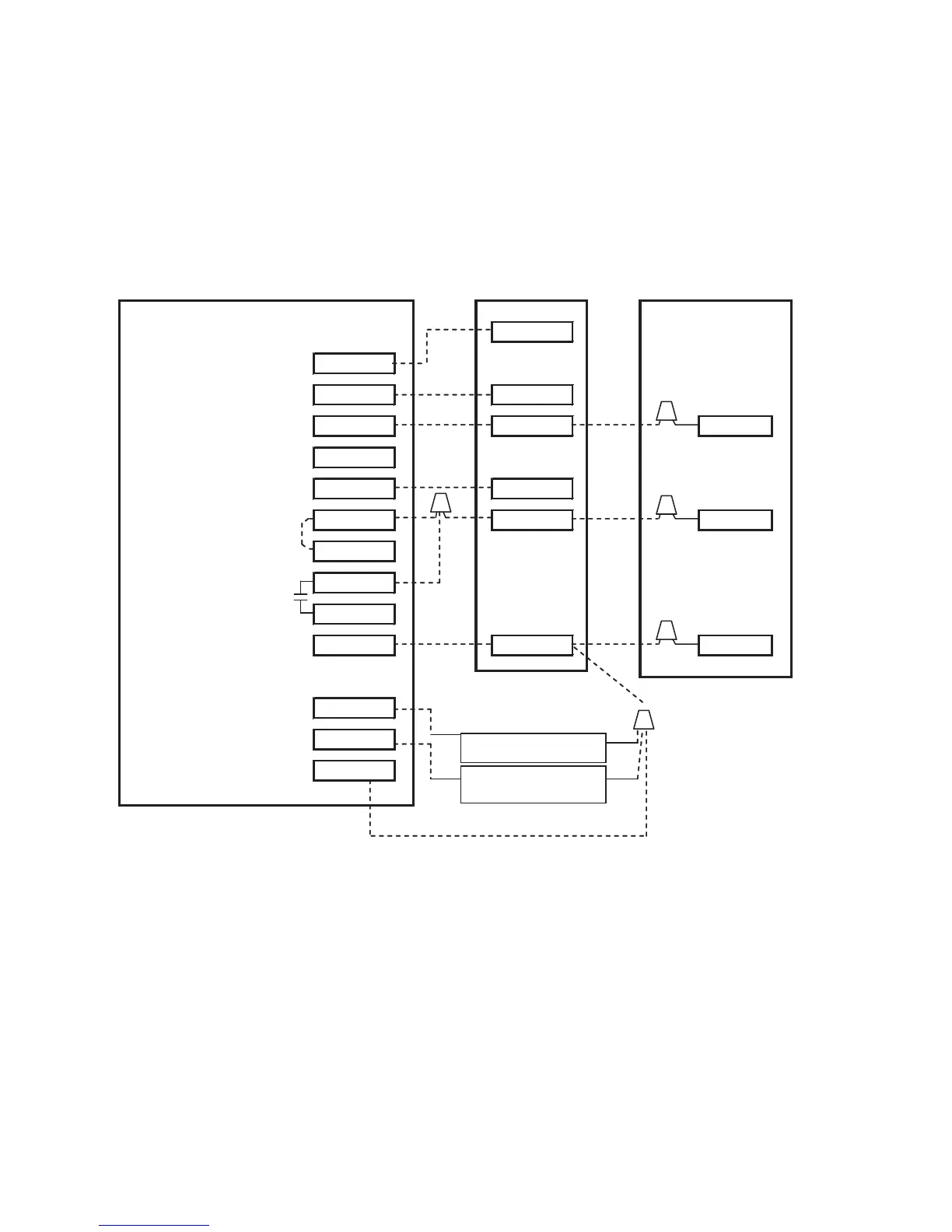

Fig. 24 − 2−Stage Furnace with Air Conditioner
(HP Thermostat Configured as AC)

Bryant PREFERRED T6-NAC Specifications

General

Wi-Fi Connectivity	Yes
Programmability	7-Day Programmable
Connectivity	Wi-Fi
Geofencing	Yes
Energy Reports	Yes
Humidity Control	Yes
Dehumidification	Yes
Air Filter Monitor	Yes
Display	Touchscreen
Product Type	Thermostat
Voice Control	Amazon Alexa, Google Assistant
Remote Access	Yes, via App
Alerts	Yes
Type	Smart Thermostat
