6
Wiring
Wire length should be no more than 250 ft (76m). Use 22 AWG for normal
wiring applications. Continuous wire lengths over 100 ft (30.5m) should use 20
AWG or larger.
INSTALLATION
Carton contains the following components. See Fig. 2 for programmable models
or Fig. 3 for non−programmable models.
A07756

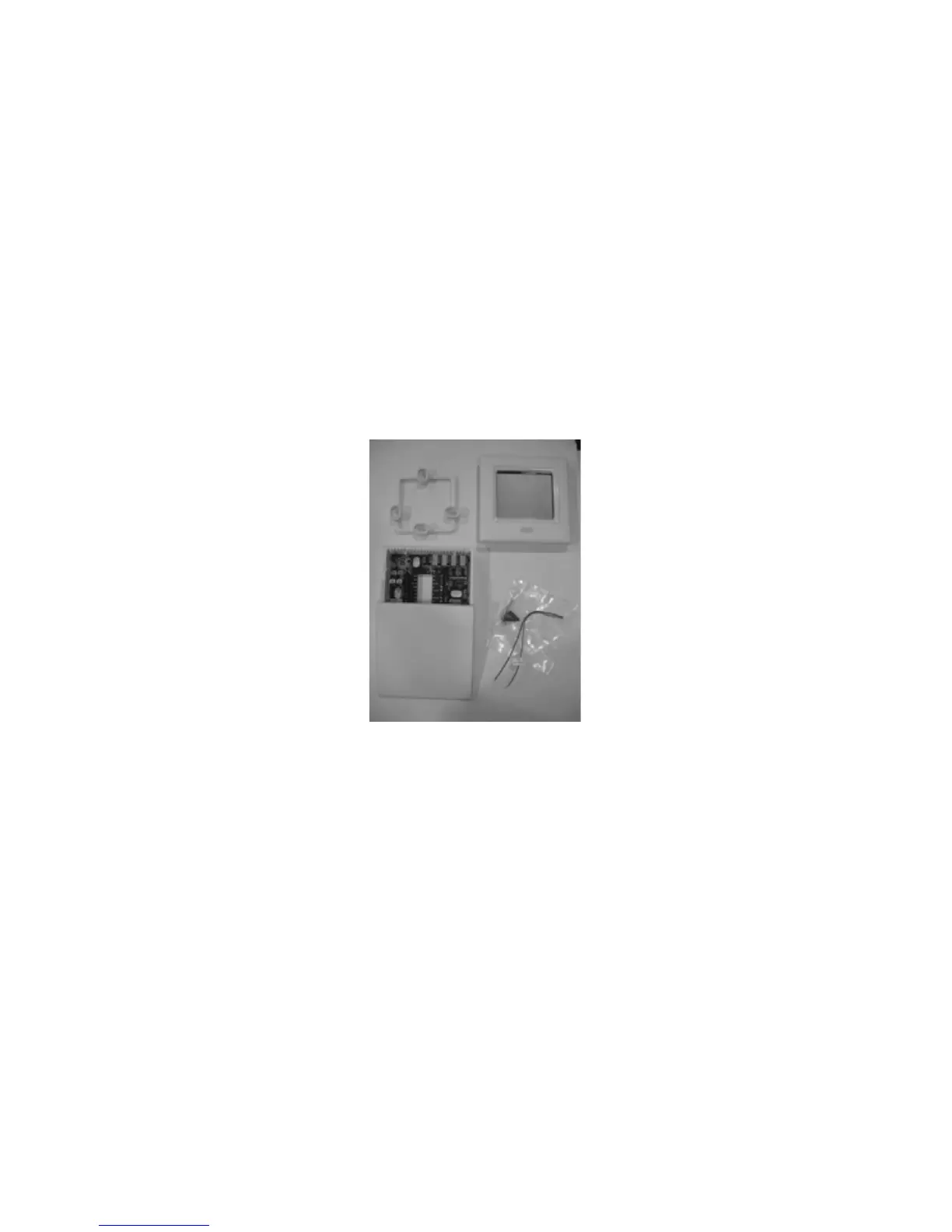

Fig. 2 − T6−PAC / T6−PHP Carton Contents
1. Display Module
2. Stand−off for Equipment Control Module
3. Screws and pig tail
4. Equipment Control Module
