Bryant PREFERRED T6-NAC - AC;HP Control Location

7
A07757

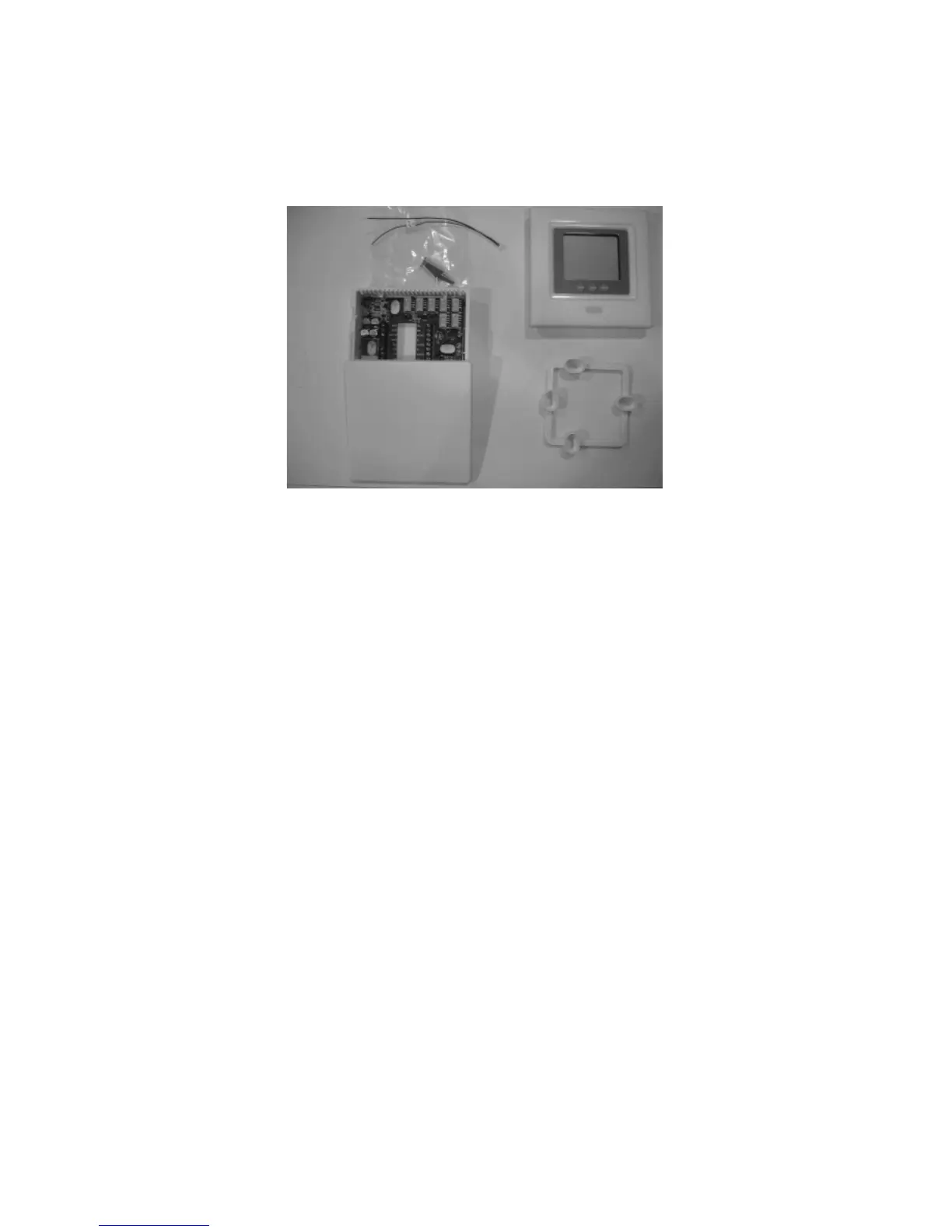

Fig. 3 − T6−NAC / T6−NHP Carton Contents
1. Display Module
2. Stand−off for Equipment Control Module
3. Screws and pig tail
4. Equipment Control Module
AC/HP Control Location
AC/HP Control should be mounted:
 Approximately 5 ft (1.5m) from floor.
 Close to or in a frequently used room, preferably on an inside parti-
tioning wall.
 On a section of wall without pipes or duct work.
