Bryant PREFERRED T6-NAC User Manual

4
A07052

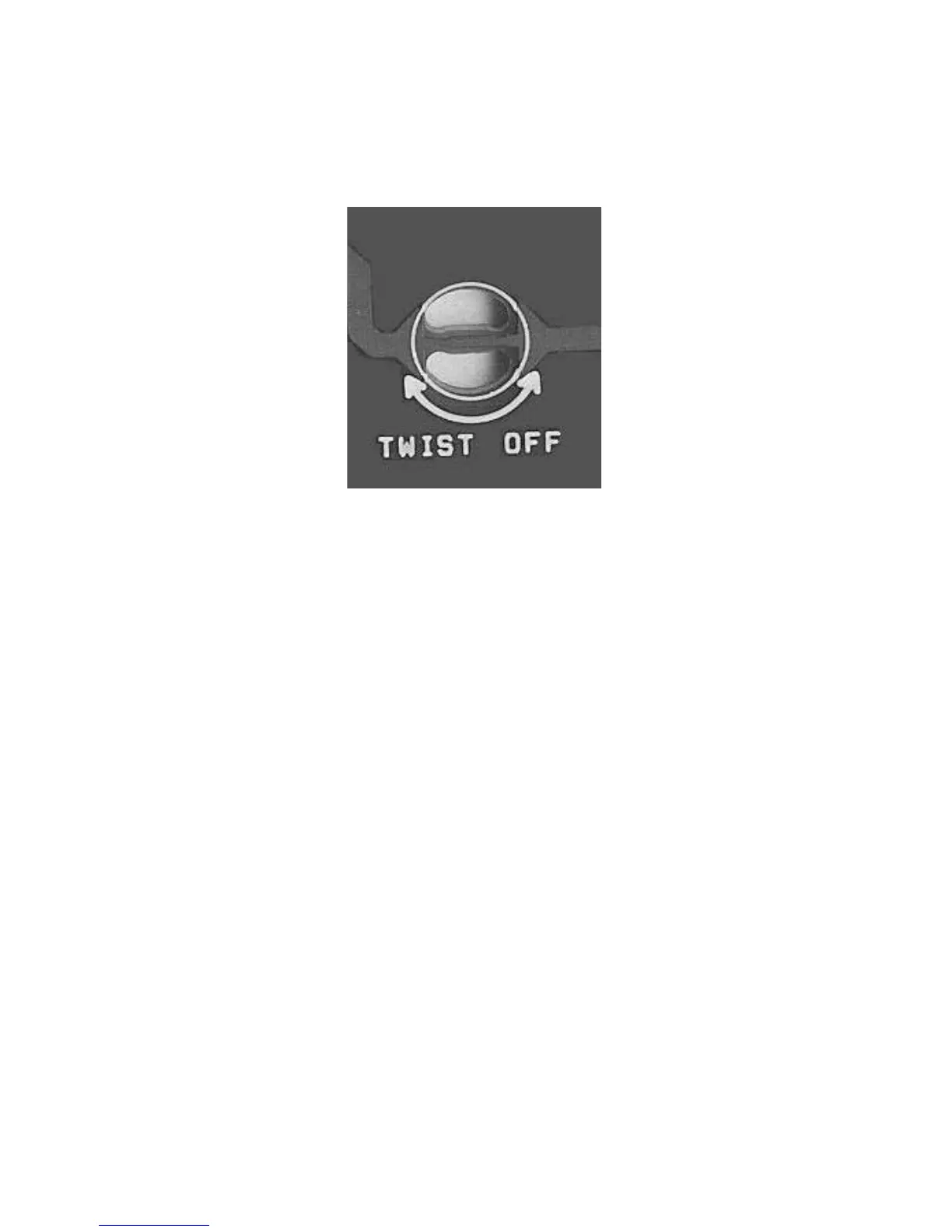

Fig. 1 − PCB Breakout Jumper
Models
There are programmable and non−programmable models for all applications.
They can be configured for AC or HP installations, allowing it to be used in
place of all Bryant thermostats. Programmable thermostats may be configured as
non−programmable if user desires.
Outdoor Temperature Sensor
The outdoor air temperature sensor is not included with the AC/HP Control. It is
available as an accessory, part number TSTATBBSEN01−B. Optimum
performance is obtained when an outdoor temperature sensor is used with the
AC/HP Control. Plan installation so that 2 wires can be run from Equipment
Control Module to an outdoor location, preferably on the north side of the house
or refer to Installation Instructions included with the outdoor temperature sensor
for simplified connection. Sensor can be mounted to outdoor unit and existing

Bryant PREFERRED T6-NAC Specifications

General

Brand	Bryant
Model	PREFERRED T6-NAC
Category	Thermostat
Language	English
