9BSST FIVE CHANNEL POWER AMPLIFIER
6
Rack Mounting Instructions
Removing the channels makes rack
mounting far easier as the chassis will
be much lighter. Before removing any
screws from the 9BSST be sure the
power cord is removed from the unit.
Remove the screws indicated on the
top and bottom views plus the ones
described on the sides.Pull gently on
the channel handle to remove the chan-
nel. Be prepared to use both hands to
handle the channel. It should not be
necessary to remove the power input
module.Install 9BSST chassis in rack.
Carefully reinstall the channels.
REMOVE ALL 6-32 SCREWS ON
THE BOTTOM.
The removal of the feet should not
be necessary as clearance below the
amplifier MUST be at least 1U
when rack mounting.
REMOVE 4
6-32 SCREWS
FROM THIS
SIDE
REMOVE 3
3-32 SCREWS
FROM THIS SIDE
The 9BSST 19” version may be rack mounted with or without the ability to remove the channels. If removal of the chan-
nels is desired then the shipping screws securing the channels need to be removed.

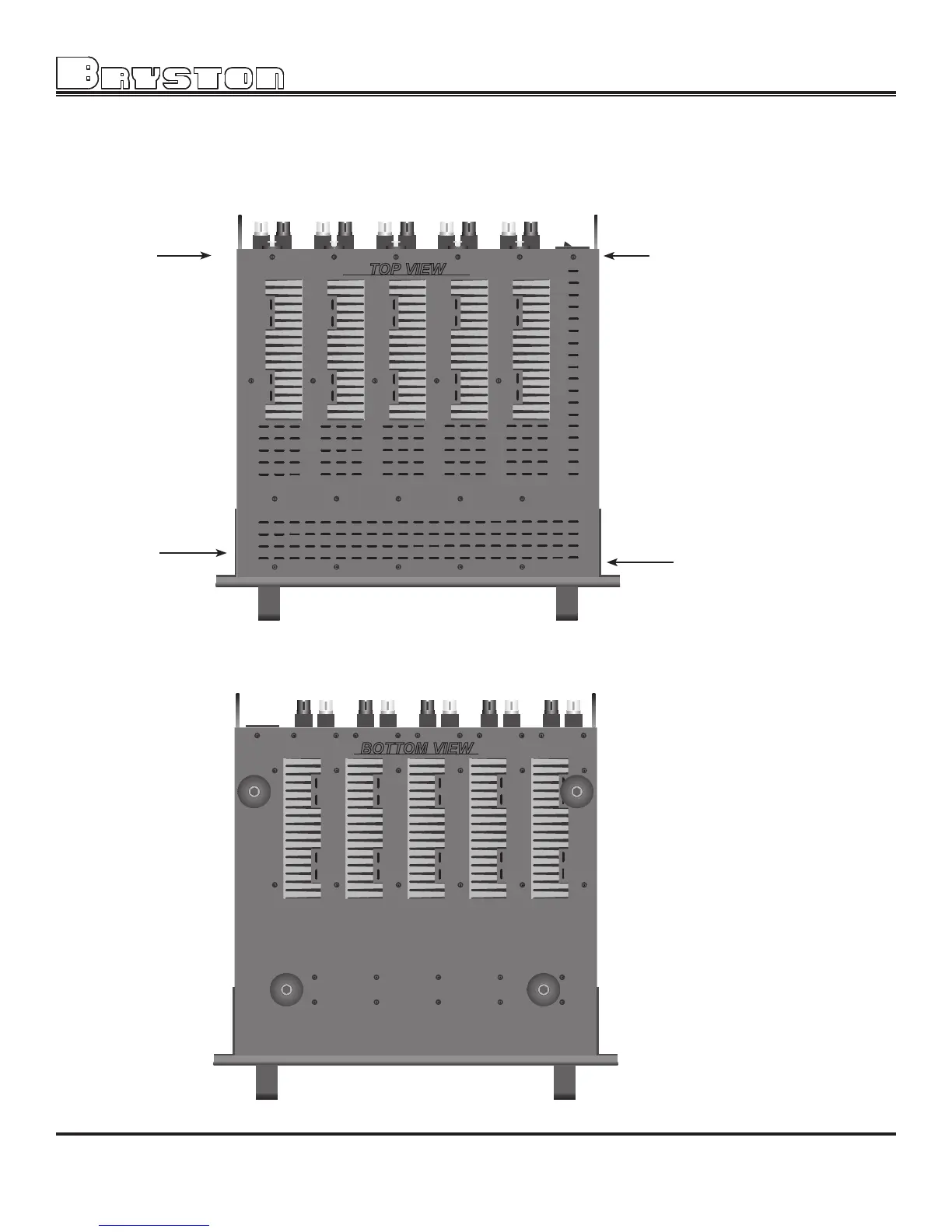

TOP VIEW
BOTTOM VIEW
DO NOT REMOVE
SCREWS FROM
RACK MOUNT
BRACKET
DO NOT REMOVE SCREWS FROM
RACK MOUNT BRACKET
REMOVE ALL 6-32
SCREWS ON THE
TOP
