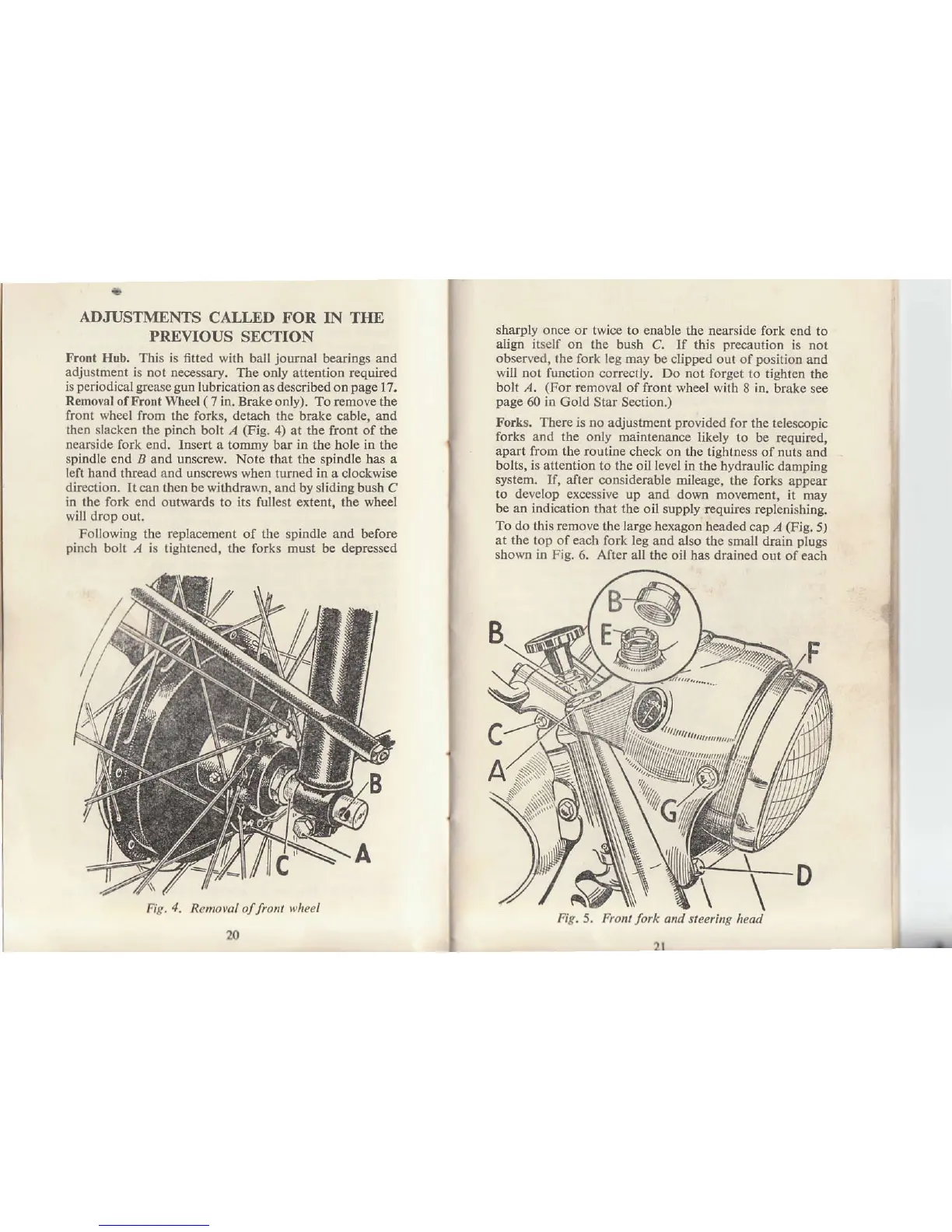

ADJUSTMENTS
CALLED FOR IN TIIE
PREVIOUS SECTION
F.ont H$b.
This
is
fitted with bau
journal
beaxings
and
adjustment is not necessary.
The only attention required
is
periodical
grease gun
lubrication as described on
page
17.
Removal ofFront
Wheel
(
? in. Brake only). To iemove the
front wheel
from the forks, detach the brake cable, and
then slacken the
pinch
bolt ,4
(Fig.
4) at the front of tle
nea$ide
fork
end.
Insefi a tommy bar in the hole in the
spindle end.a
and unscrew. Note that the spindle
has
a
left hand thread and unscrews when
tumed
in å
clockwise
direction. It can then be withdrawn, and by sliding bush
C
in the fork end outwards to its
fullest
extent, the whe€l
llill drop out.
Following the rcplacement of the spindle and before
pinch
bolt ,{ is tightened, the forks must be depressed
Fir!.
4.
Rcnoral offront nheel
20
I
sharply once or twice
to enable the nearside fork
end to
alien
itself on the bush
C.
If
this
p.ecaution
is not
obsewed,
the fork leg may
be
clipped
out ofposition and
will not
function cofiectly. Do not
forget to tighten
the
bolt .4.
(For
removal of lront wheel
with 8
in.
brake s€e
page
60
iD
Cold Star Secrion.)
Fo*s. There is no
adjustment
provided
for the telescopic
forks and the only maintenance
likely to
be requircd,
apart from the routine
check on the tightness of
nuts and
bolts, is
attention to the oil level in the
hydraulic damping
system. If,
after considerable mileåge,
the forks
appear
to develop excessive
up and down movement,
it may
be an indication
that
the
oil supply rcquircs
replenishing.
To do this remove
the
large
hexagor
headed cap A
(Fig.
5)
at the top of each
fork leg and also the
small drain
plugs
shown in Fig.
6. After all the oil has drained
out of each
Fig.5. Front
fork
and steering
head
