8000302 | Instructions for use RUCK Podiatry Couch MOON | REV 04 |
Revision status 08/09/2023
26
Transport and start-up

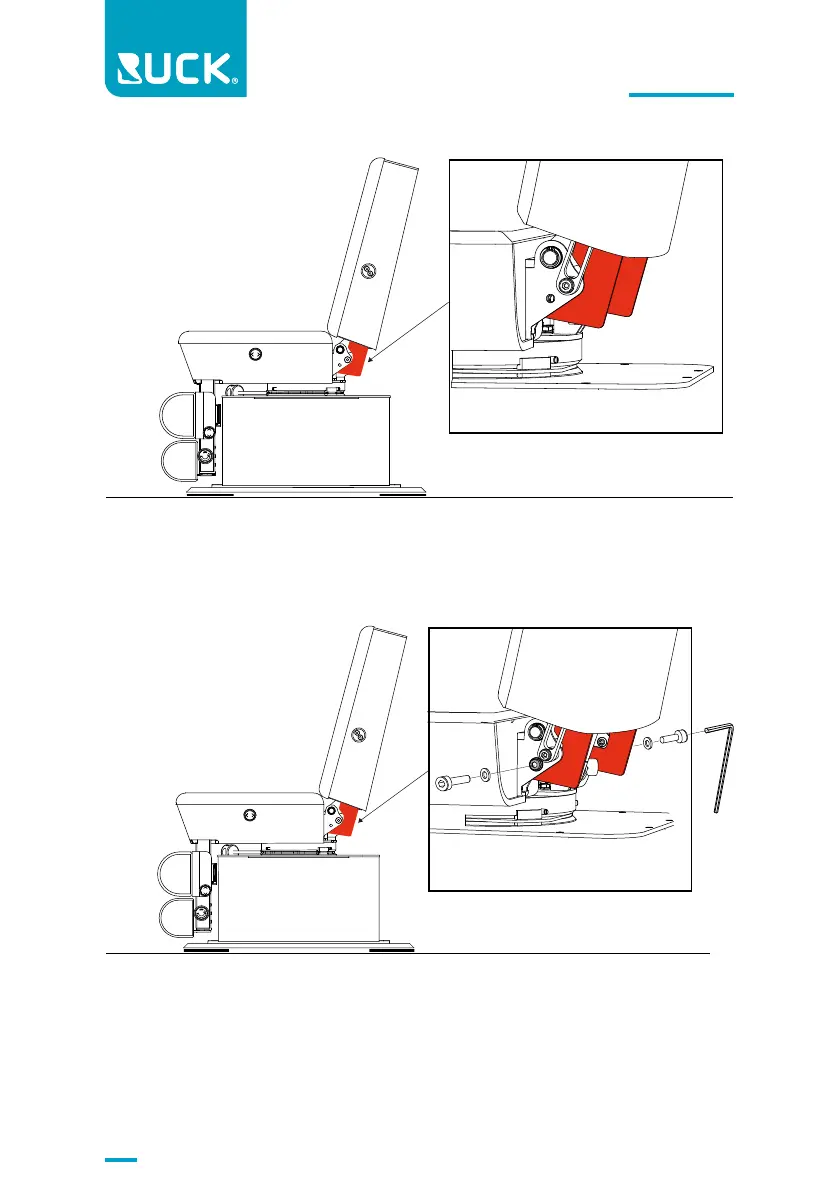

8. The two red transport locks must be removed before commissioning the
podiatry couch. Failure to do so may mean that the backrest cannot be
tilted, the drive and/or seat and backrest may thereby be damaged.
9. Before starting to remove the transport lock, protect the wood cover of
the lift cladding and the oor plate of the podiatry couch. Use an Allen
key to loosen the hexagon socket screw on the right/left and remove
with the corresponding washer.
