10. Antennas
The following illustrations show examples of the most common antenna setups. Transmission
distances may vary due to many factors such as, terrain, trees, brush, or various types of radio
frequency interference.

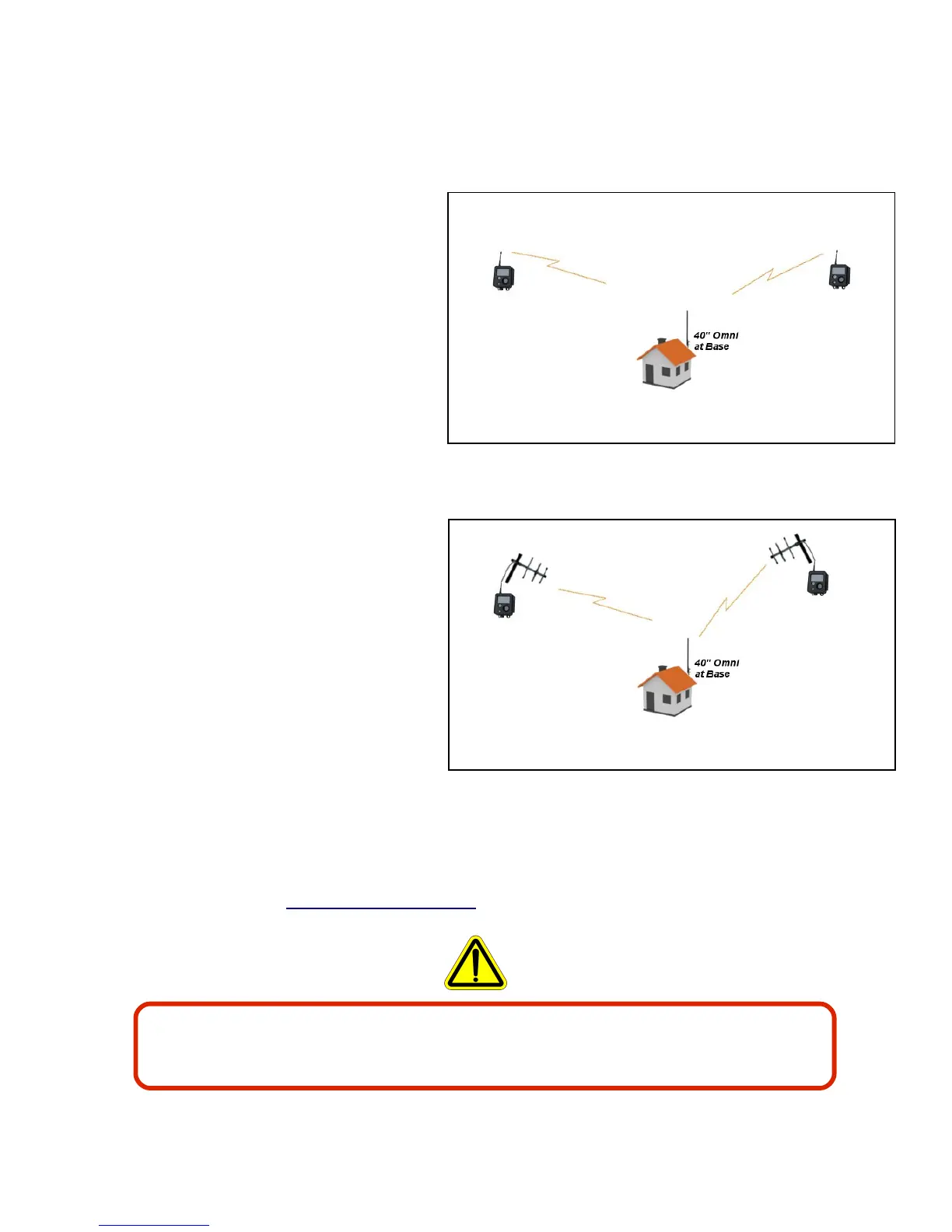

40” Omni at Base, Standard at Cameras
● Most common antenna upgrade
● Mount Omni as high as possible
● Use 400 series cable
● Typical transmission range up to 2 miles
40” Omni at Base, Yagi at Cameras
● Mount Omni as high as possible
● Use 400 series cable
● Mini Yagi or 56” Yagi at cameras
● Point Yagi antennas to the Base
It may be possible to increase transmission distance to many miles. This will usually require an
advanced antenna setup. For assistance in selecting the right antenna for your application,
contact Buckeye Cam at www.buckeyecam.com or by phone at 866-325-8172.
X80 Wireless Camera User's Manual v2.0 23 of 35
Installing antenna masts may present a serious life threatening risk due to
potential falls or contact with power lines. Installation should only be done
by a qualified professional in accordance with all appropriate codes.
