10. Antennas
10. Antennas
The standard antennas provided with X80 cameras are small omnidirectional antennas that attach
directly to the camera. The type of wireless transmission used is radio frequency (RF) line-of-
sight. Generally speaking, this means that you need to have a limited amount of obstructions
between the transmitting and receiving devices in order to get an acceptable transmission signal.
Standard antennas WILL transmit through:
● Most types of trees
● Wood frame walls
Standard antennas WILL NOT transmit through:
● Think pine trees (conifers)
● Metal buildings or structures
● Earth or large hills
For many applications, the standard antennas will work well. The transmission distance with
standard antennas may be up to 1-2 miles under ideal conditions (i.e. very few obstructions).
For applications where a good signal to the Base cannot be obtained using the standard antennas,
two options are available: high gain antennas and/or using cameras as repeaters. This chapter will
discuss high gain antennas.

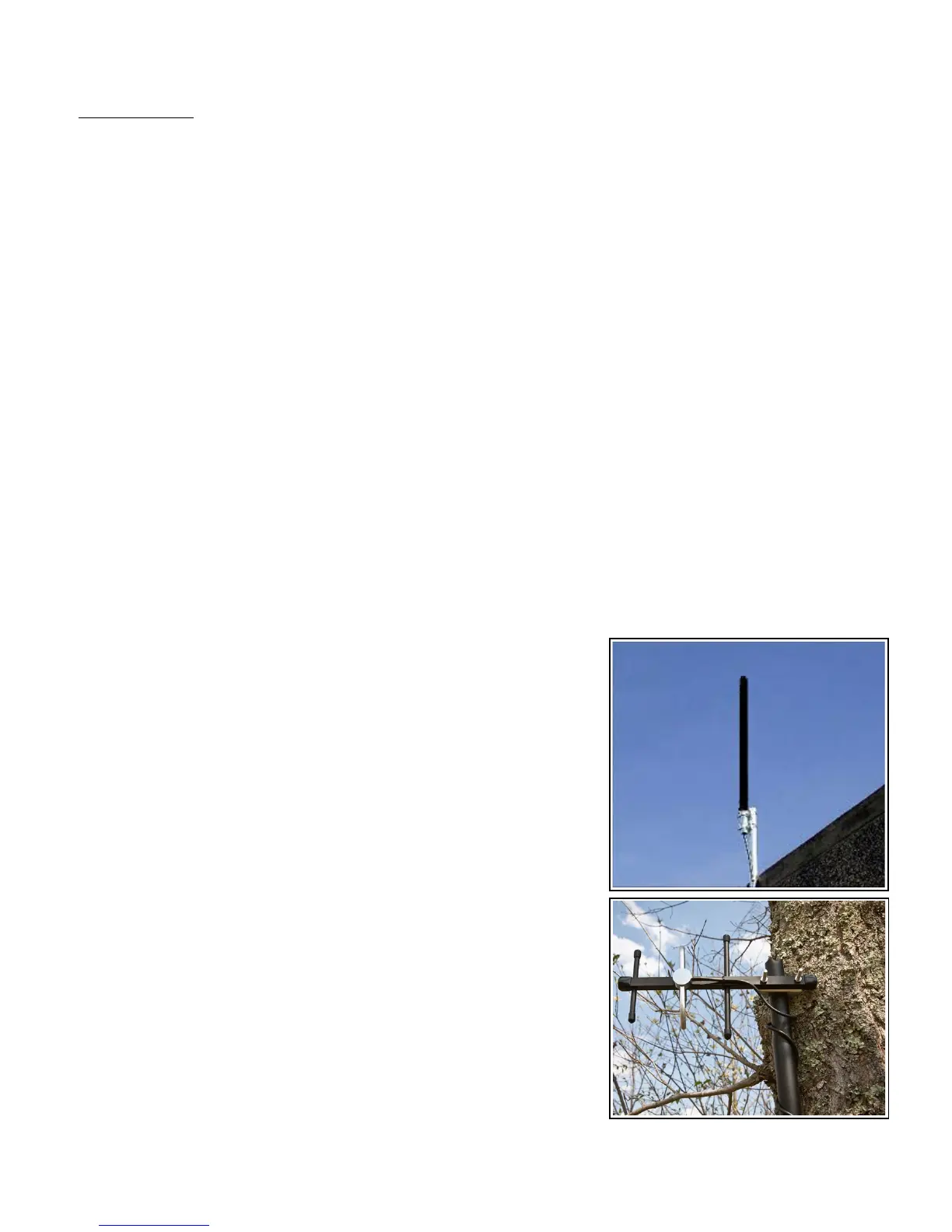

Two types of high gain antennas are available: omnidirectional and directional (Yagi).
High Gain Omnidirectional Antennas
● T
ransmit and receive equally in all directions (i.e. 360°)
● S
hould be mounted vertically.
● Mount high to avoid obstructions
Typical Uses for Omnidirectional Antennas
● Base antenna (typically, 40” Omni)
● Repeater camera antenna (26” Omni)
High Gain Yagi (Directional) Antennas
● T
ransmit and receive mostly in one direction
● S
hould be pointed at the receiver
● Mount high to avoid obstructions
● Provides the highest gain
Typical Uses for Yagi (Directional) Antennas
● Camera antenna for improved signal (Mini Yagi)
● Camera antenna for very long distances (56” Yagi)
● Camera antenna when transmitting through trees or brush
X80 Wireless Camera User's Manual v2.0 22 of 35
