FINISHING YOUR FIREPLACE (ZC)
There is a wide variety of finishing material
available for your fireplace from formal wall
treatments with marble and mantels, to rustic
wood paneling, stone or brick.
IT IS IMPORTANT THAT BLACK FACE OF
FIREPLACE NOT BE COVERED WITH ANY
TYPE OF COMBUSTIBLE MATERIAL.
Non-combustible facing materials such as
marble, brick or ceramic tile may overlap
black face of fireplace up to opening on
either side of fireplace. Seal all joints
between black fireplace face and wall
covering with a heat-resistant material such
as rock wool insulation or mortar. Be sure to
use high temperature adhesive or mortar
when anchoring brick, stone or tile to face of
fireplace. Check to see whether man-made
brick and stone are made of non-combustible
materials before using them on the face of
fireplace. Some of these products contain
combustible materials. Combustible wall
coverings such as paneling or wallboard may
not overlap black face of fireplace. The
space between wall covering and fireplace
should be sealed with a heat resistant material
such as rock wool insulation or mortar.
NOTE: An “L” shaped steel lintel must be
installed across top of firebox opening where
facing materials such as brick or stone is used
on face of firebox. It acts as a support/
firestop. It should be attached to face of
fireplace with screws and sealed to t fireplace
with a heat-resistant sealer.
CLEARANCES (ZC)
To ensure a safe installation, following must be
carefully observed.
1. Sidewall Clearances: Clearances from side of
fireplace opening to any adjacent combustible
wall should not be less than 7"right side and 7”
left side. See Figure 4
2. Ceiling Clearances: The ceiling height
should not be less than 42" from the top of
fireplace opening.
3. Mantel Clearances: We have provided
3
different situations to position your mantel.
See Figure 5, page 8.
Non-Combustible materials used in this
installation such as slate, tile, marble, etc.
must be at least 1/2" thick.
4. Floor Clearances: No clearance is
required if appliance is installed per these
instructions.

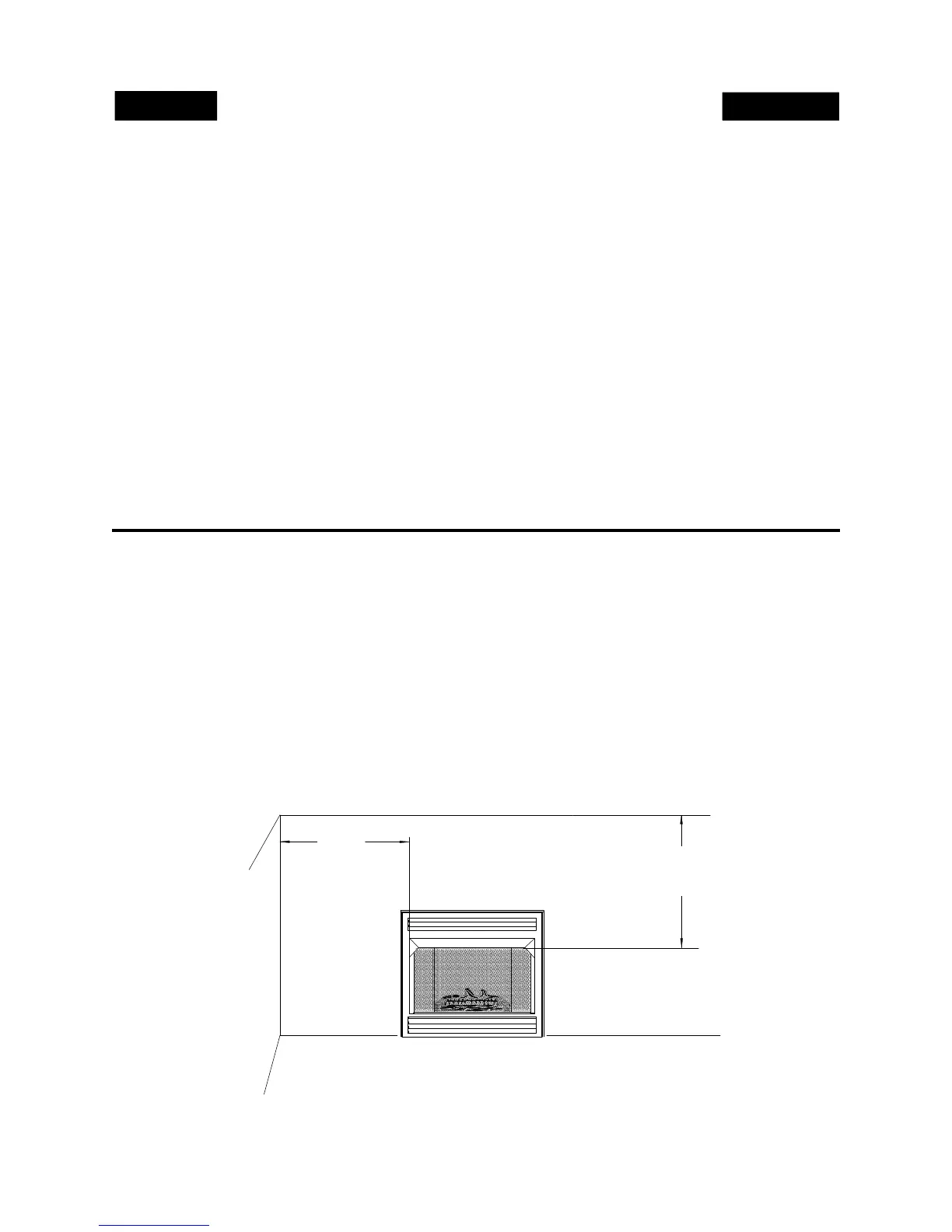

42" MIN.
CLEARANCE
TO CEILING
7" MIN.
FIGURE 4
SIDE WALL
CLEARANCE
FROM FIREPLACE
OPENING TO SIDE WALL
FRONT
LEFT
SIDE
RIGHT
SIDE
