Page 32

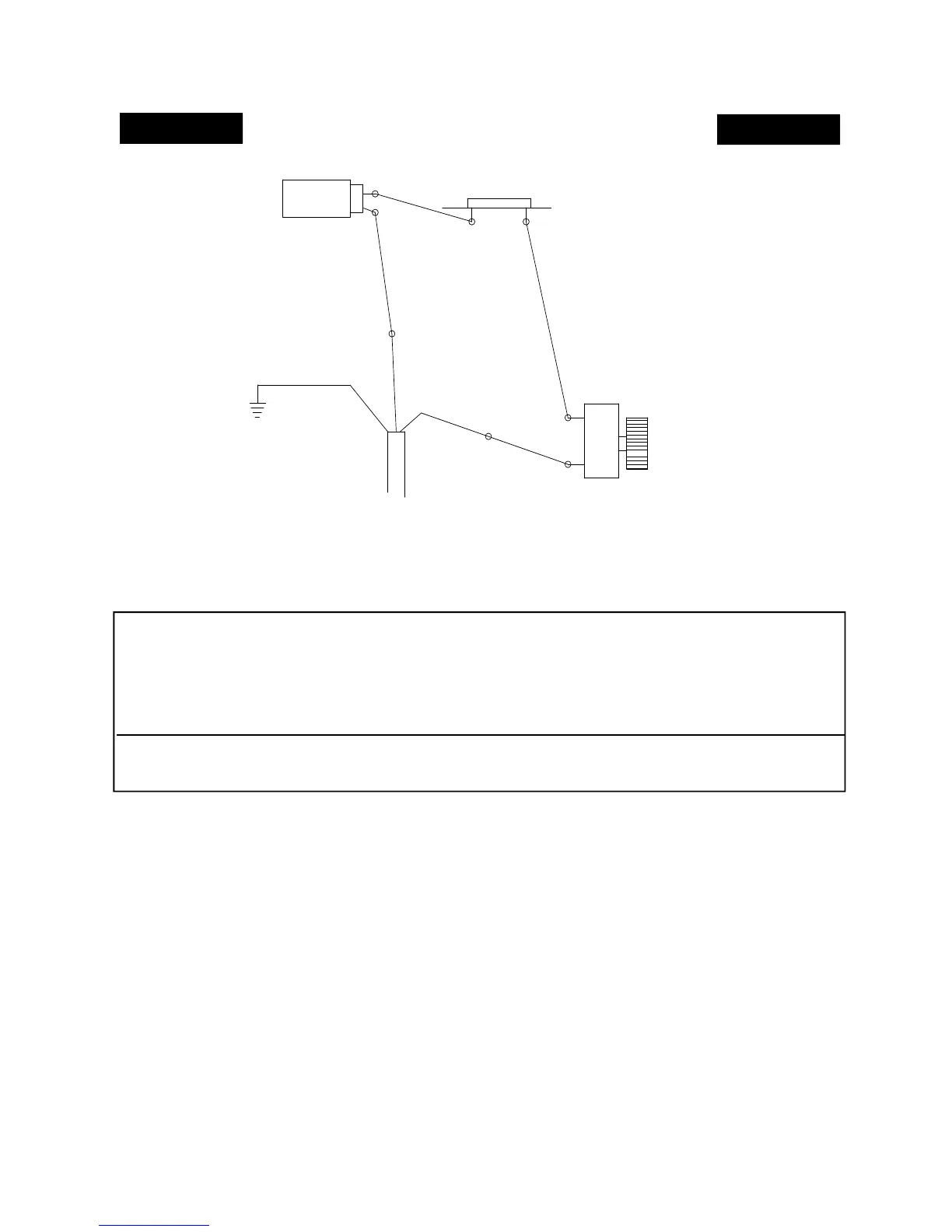

WIRING DIAGRAM
NOTE: “If any of original wire as supplied with gas appliance must be replaced,
it must be replaced with a wire of at least a 105
o
C. temperature rating.”
NOTE: Installation and repair should be done by a qualified service person.
This heater should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint
from carpeting, bedding material, etc. It is imperative that control compartments
and circulating air passageways of heater be kept clean.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation.
Verify proper operation after servicing.
MOTOR
RHEOSTAT
THERMOSTAT
GREEN
JUMPER
WHITE
BLACK
BLACK
JUMPER
JUMPER
POWER CORD
Figure 16
WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO
HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO
AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN THEY ARE IN SAME ROOM WITH
APPLIANCE
WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE
MATERIAL ON OR NEAR APPLIANCE.
