NOTE: The fireplace screen must be in place when the appliance is in
operation. The screen must have openings for introduction of combustion air
unless other provisions have been made.
FLAME CHECK
A periodic check of flames should be made. The pilot flame should always be present when gas logs
are in operation. See Figure 15.
Rear Flames: The flames at rear or at either side of top log should be very similar, yellow in color,
and should be about 3" to 4" above large rear log for natural gas logs and about 6" for propane
(LP) gas log sets.
Front Flame: The flame should be 1-1/2" to 2" high and touch back of front log. This will produce a
red glow on this log.

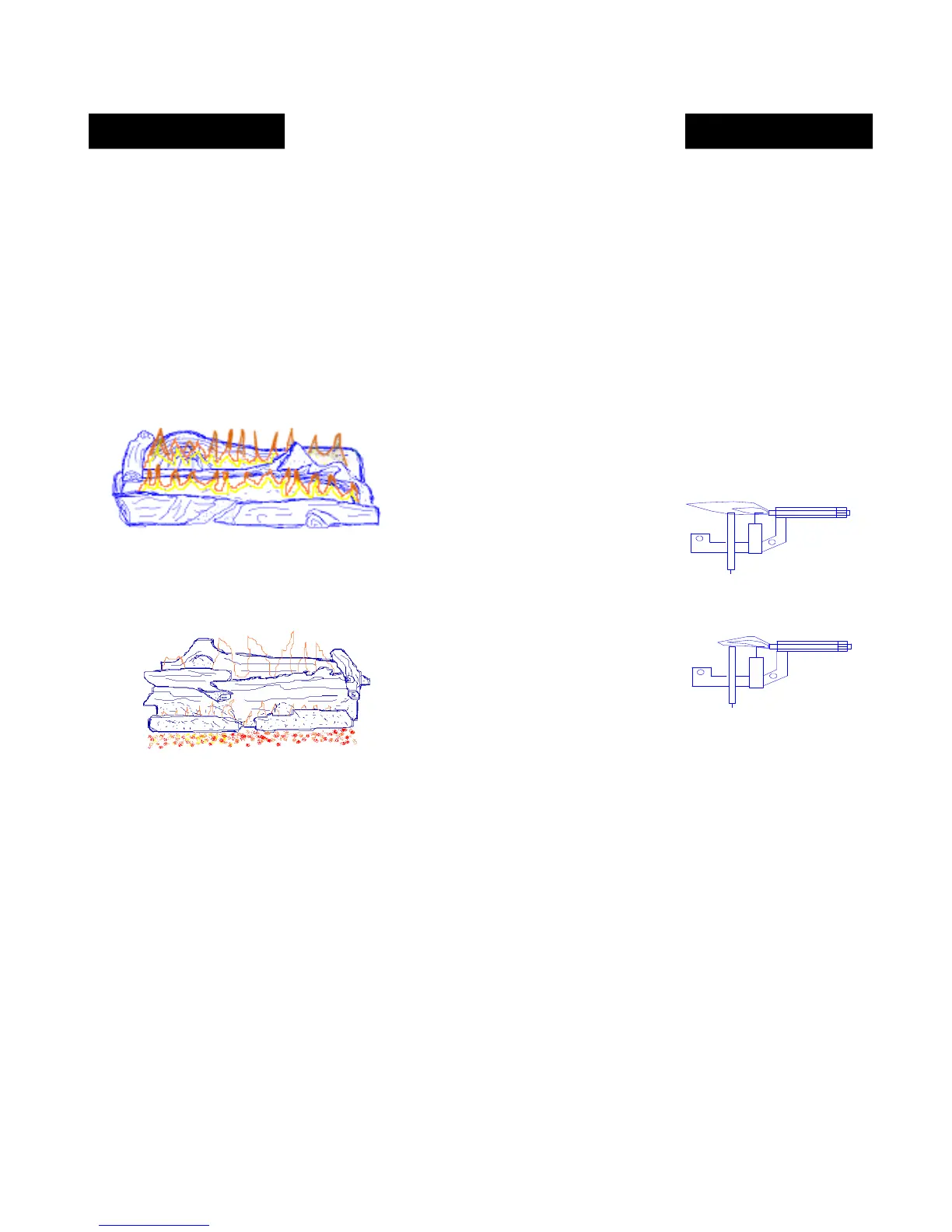

CR3329 LOG SET
E.S.B. LOG SET
Figure 15
Natural
Propane
PILOT
PILOT
