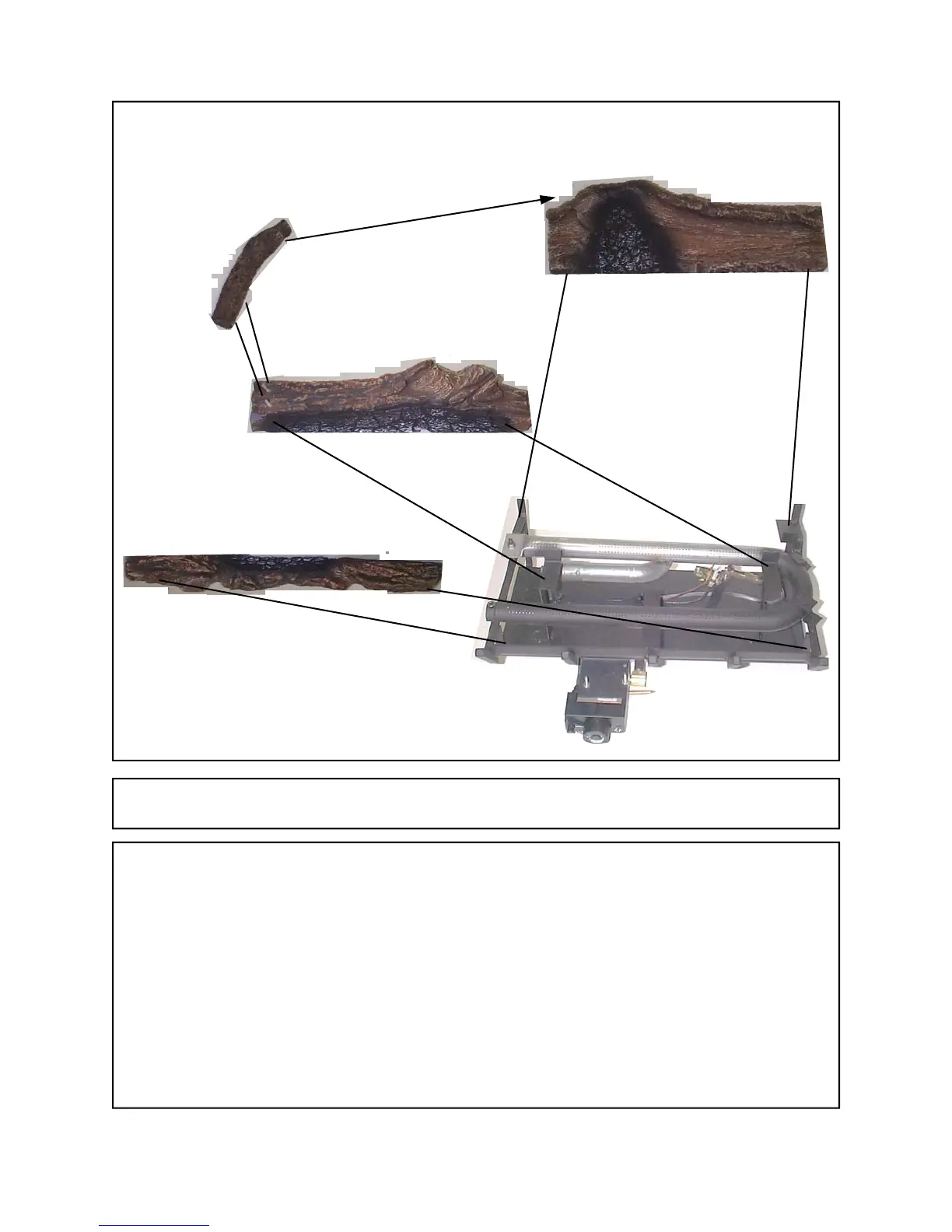

CR3329 CERAMIC LOG SET PLACEMENT
(1)
(2)
(4)
(3)
WARNING: Failure to position parts in accordance with these diagrams or failure to use only
parts specifically approved with this heater may result in property damage or personal injury.
(1) Front Log #1 (Slim Log wrapped in cardboard box) . Place log between front portion of burner
and log grates.
(2) Middle Glow Log #2 . Place rear of log on top of middle log supports located in open center por-
tion of burner base. Front of log should rest slightly behind rear line of burner holes on front
portion of burner. Align the notch on left front bottom side of log over the existing hold down
nut of burner. This should align log at right position from left or right on burner.
(3) Rear Log #3. Place log in rear log supports center from left to right.
(4) Left Top Log #4. Log has two (2) holes in bottom front side. Align holes with the two (2) pins
located on left top of log #2. Rear of log #4 should rest on left top end of rear log #3.
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).
