Page 18

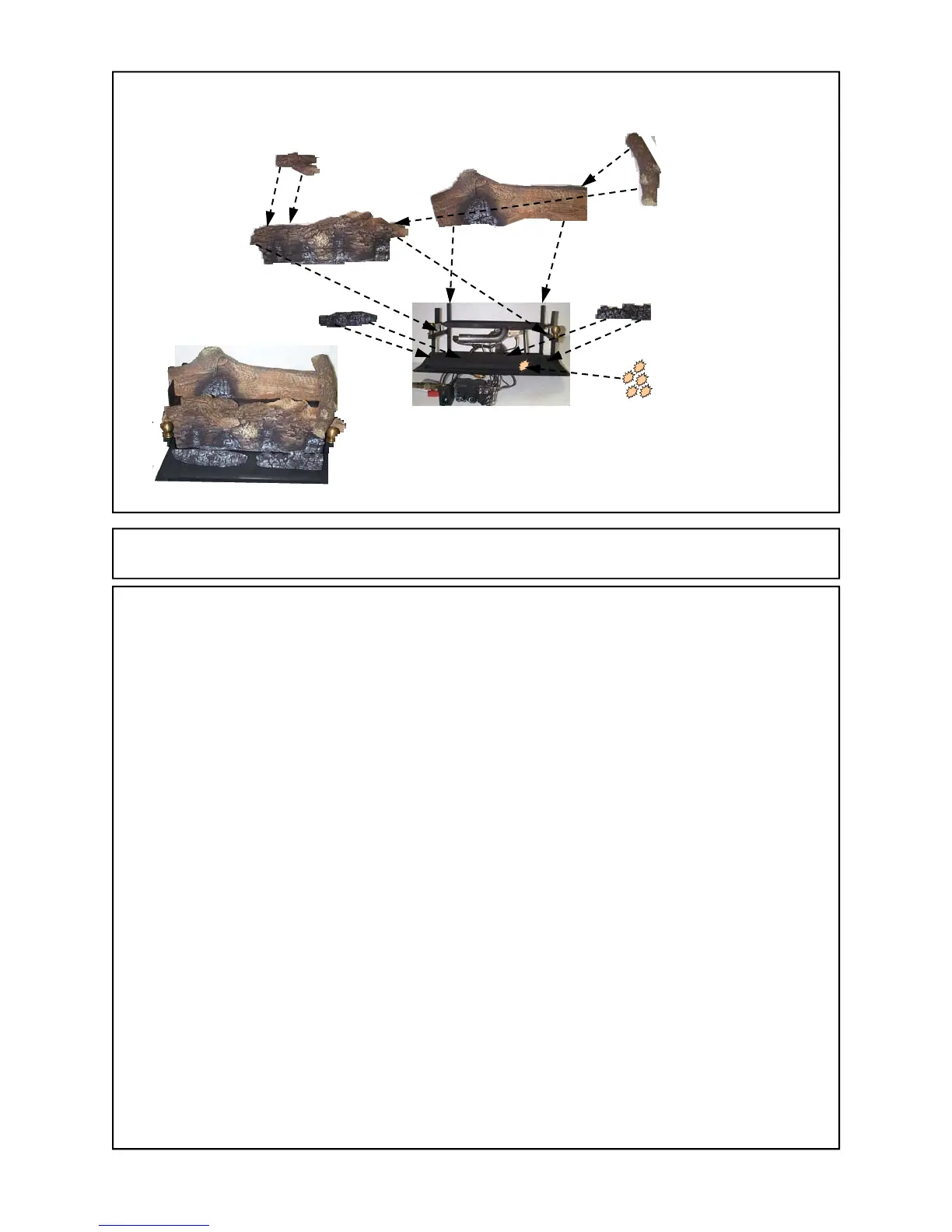

E.S.B. LOG SET PLACEMENT FOR MODEL 36
MODEL E.S.B: (1) Rear Log, (2) Middle Log, (3) Left Top Middle Log, (4) Right Top Mid-
dle Log (5) Left Front Log (6) Right Front Log (7) Glowing Embers in front of 5 & 6 logs.
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (See Figure 2).
1) Place rear log #1 on rear log supports. The log has alignment notches on each rear corner.
2) Place Middle log #2 in front of rear burner tube and then move log forward. The log should seat
just behind the brass knobs, located in middle section of base between rear burner tube and front
burner pan.
3) Place Left Top Middle log #3 on pins located on left top section of Middle log #2.
4) Place Right Top Middle log #4 on pin located on right top section of Middle log #2 and a line
notch on right side #4 with side shield on right.
5) Place Left Front log #5 on locator pins located on left middle section of front burner pan.
6) Place Right Front log #6 on locator pins located on right middle section of front burner pan.
7) Provided with your log set is a package of Glowing Embers (rock wool). Open package and tare
off small pieces of wool material and place it over small holes (ports) located on front burner
pan in front of logs #5 and #6. Cover entire section of holes (ports). *Replacement of loose
(Glowing Embers) must be purchased from original manufacturer and application of ex-
cess loose material may adversely affect performance of heater.
NOTE: “Wash your hands immediately after coming in contact with wool material. The wool
can cause slight itching or burning in some cases, avoid any contact with eyes.”
“WARNING: All previously applied loose material must be removed prior to replacement.”
WARNING: Failure to position parts in accordance with these diagrams or failure to use only
parts specifically approved with this heater may result in property damage or personal injury.
WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).
1
2
3
4
5
6
7
“MILLIVOLT ONLY”
