Product Description
Logalux SM300/1 - SM400/1 - Technical specifications are subject to change without prior notice.
5
2.5 Product Packaging
Solar hot water tank consists of:
– Tank shell with corrosion protection
– The cathodic corrosion protection consists of hygienic
Buderus Thermoglaze Duo-Clean and a magnesium
anode protection system.
– Tank insulation made from non FCKW insulation
material.
– SM300/1: direct attached to tank shell.
– SM400/1: Insulation must separately be installed.
– 2 Smooth high output heat transfer coils [11]
– The smooth surface coil transfers the energy from
the solar and/or heating system to the domestic
water inside the tank shell. The water volume is
evenly heated with the coil areas.
– Dry well for installation of DHW tank temperature sen-
sor.
– The DHW temperature control of the boiler system
controls the DHW temperature.
– Dry well for installation of tank temperature sensor.
– The solar control is controlled by the tank tempera-
ture sensor (lower port) which operates the solar
system based on collector sensor.
– Hand hole cover for service and maintenance access
– Dual magnesium anodes [5; 10]
– Jacket cover [8]
–B-Kit (US) (Æ Fig. 2, page 6)

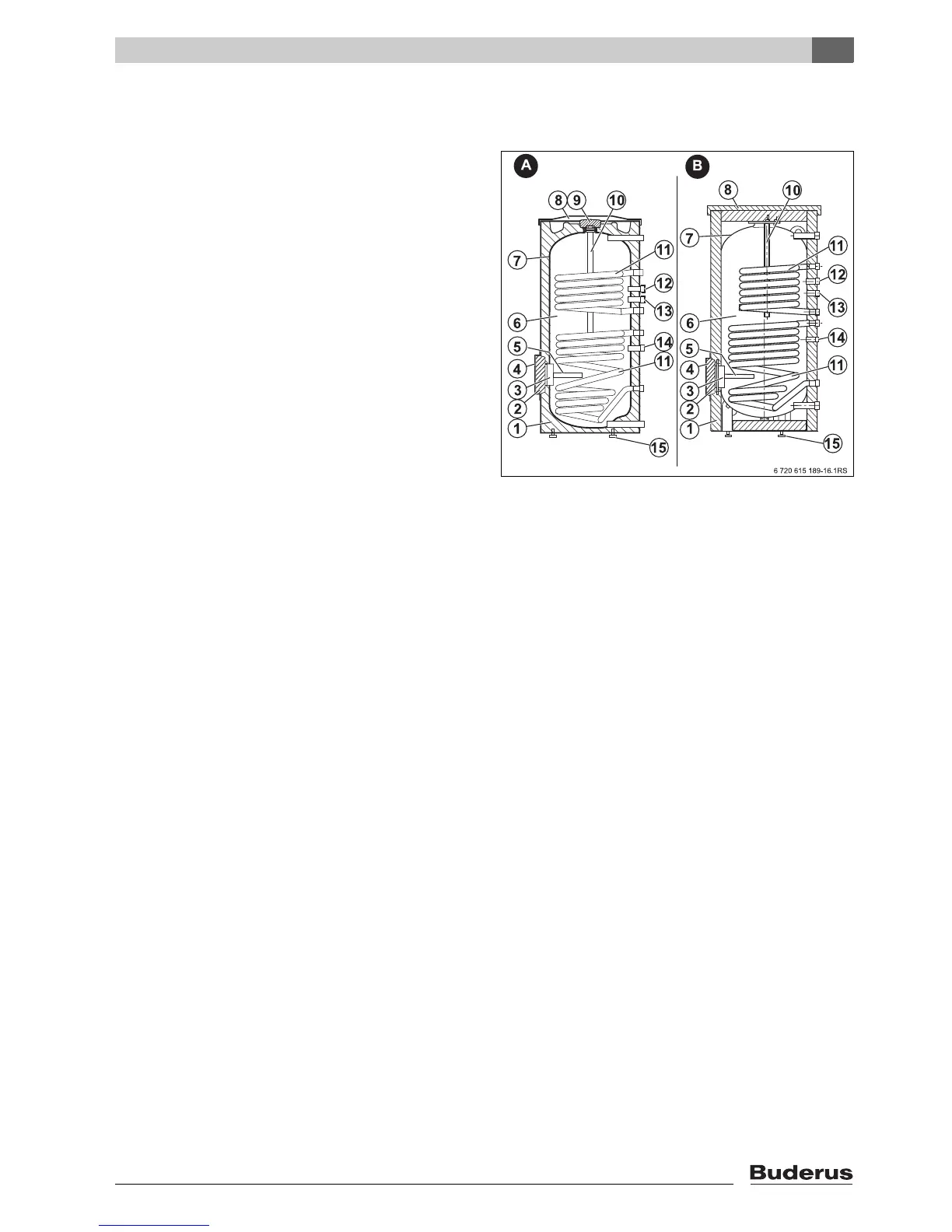

Fig. 1 A: SM300/1
B: SM400/1
1 Insulation
2 Clean-out cover insulation
3 Inspection opening
4 Inspection opening cover
5 Magnesium anode rod
6 Tank shell
7 Thermoglaze Duo Clean
8 Top tank cover
9 Insulation disc for SM300/1 tank
10 Magnesium anode rod
11 Smooth coil heat exchangers
12 Dry well sensing port for heating system control
13 Dry well sensing port for solar
14 DHW Recirculation connection
15 Tank feet
