Installation and maintenance instructions Logano G124X II/SP special gas-fired boiler • Issue 04/2005
Installation of Logamatic boiler water sensor
9. Trace boiler water capillary package wiring under
the front boiler cover to the measuring point
(immersion well).
10. Remove all spacers from the immersion well.
11. Remove carefully the copper sleeves from the
Logamatic capillaries and slide Logamatic
capillaries together with Honeywell capillary into
boiler immersion well.
12. Press sensor clip (included with control) from the
side or from above to the head of the immersion well.
13. Carefully roll up unnecessary wiring and capillaries
and stow in the Logamatic 2107 control.
Power connection and connections of additional
components
Connect to the power supply as specified by the local
code.
14. Route all wiring to the control through the wiring
opening and connect as specified by the circuit
diagram.
Install strain relief
Secure all wiring with wiring clips (included with control):
– Insert wiring clip with wiring from above into the slot
of the clip frame; the lever bar must point upwards
(step 1).
– Slide wiring clip down (step 2).
– Press (step 3).
– Move lever up (step 4).

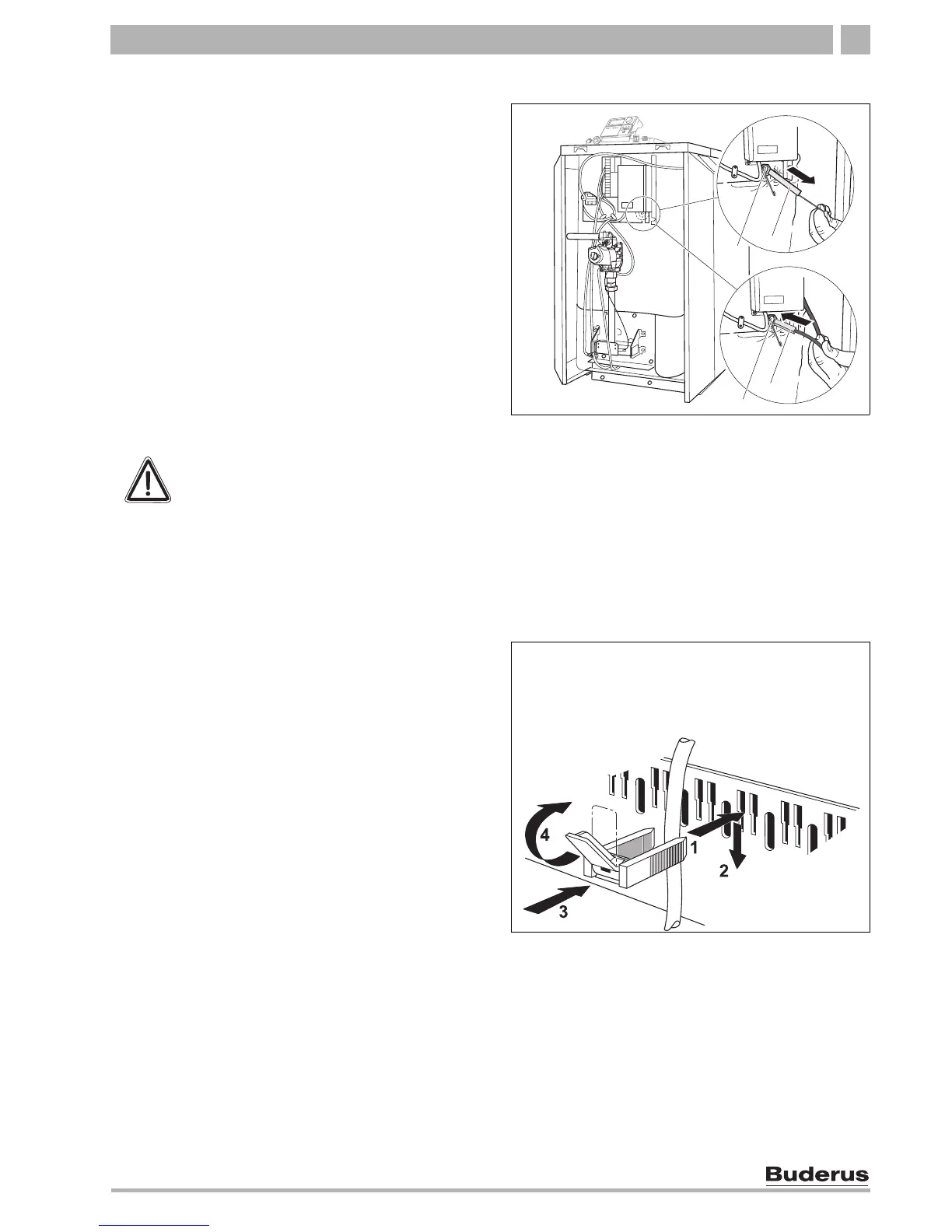

Fig. 16 Front of boiler
1 Measuring point (immersion well)
2 Spacers (blanking piece)
3 Boiler water sensor (Logamatic 2107 control)
1
2
3
1
WARNING!
FIRE DANGER
Hot boiler components may damage
electrical wiring.
z Make sure that all cables are routed in
the ducts or on the boiler insulation.
Fig. 17 Secure wiring with wiring clip
