20
Installation and maintenance instructions Logano G124X II/SP special gas-fired boiler • Issue 04/2005
We reserve the right to make any changes due to technical modifications.
Boiler installation7
Install panel components
15. Swivel display unit to the desired position.
16. Position terminal cover and screw to control.
17. Slide tabs of rear boiler cover under the front boiler
cover and press down at back.
18. Screw rear boiler cover to rear panel of boiler.

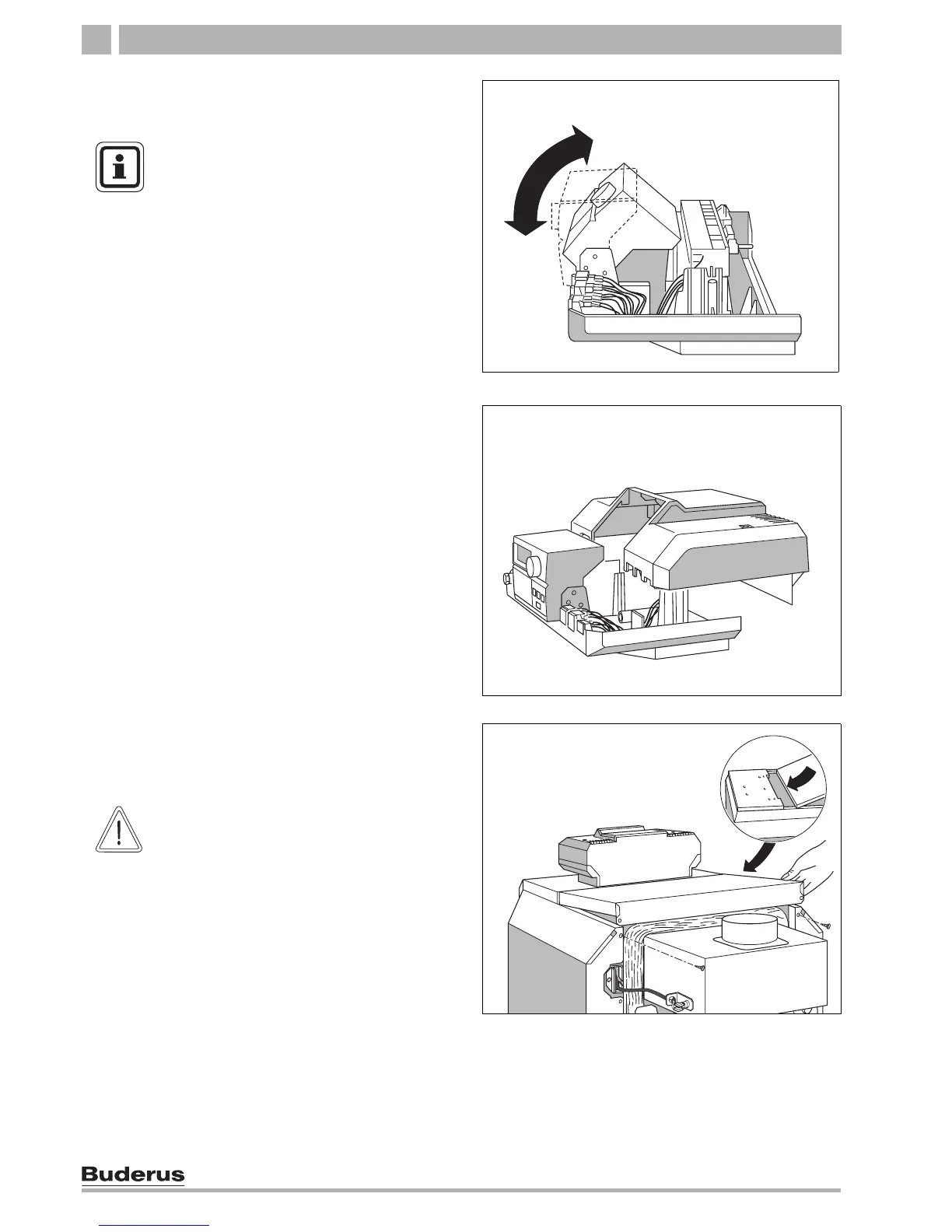

Fig. 18 Swivel display unit
USER NOTE
We recommend positioning the display
unit straight on combinations with an L-
tank.
Fig. 19 Positioning terminal cover
Fig. 20 Installing rear boiler cover
CAUTION!
SYSTEM DAMAGE
due to dirt.
If the boiler is assembled and not in use,
note the following:
z Protect the boiler connections from dirt
by closing the connections.
