2.4 Tools, materials and equipment
For the installation and maintenance of the boiler, you will
need the standard tools used for central heating and gas
and water systems plus set of a metric wrenches and
Allen wrenches
The following may also prove useful:
• Pipes for transport
• Wood battens
• Cleaning brushes and/or chemical cleaning agent for
wet cleaning
2.5 Disposal
B Dispose of boiler packaging in an environmentally-
responsible manner.
B All heating system components that have to be
replaced should be disposed of in environmentally-
responsible manner at an authorized disposal site.
2.6 Product description
The boiler is a low temperature gas-fired boiler.
The boiler consists of:
• Automatic ignition unit and aquastat
• Boiler casing and front wall of boiler
• Boiler block with thermal insulation
• Burner
• Logamatic 2000 control unit (accessory)
The automatic ignition, the aquastat and, if applicable, the
Logamatic 2000 control unit monitor and control all
electrical components of the boiler.
The boiler casing and the front wall of the boiler prevent
heat loss and reduce noise.
The boiler block transfers the heat generated by the
burner to the boiler water. The insulation prevents energy
loss.

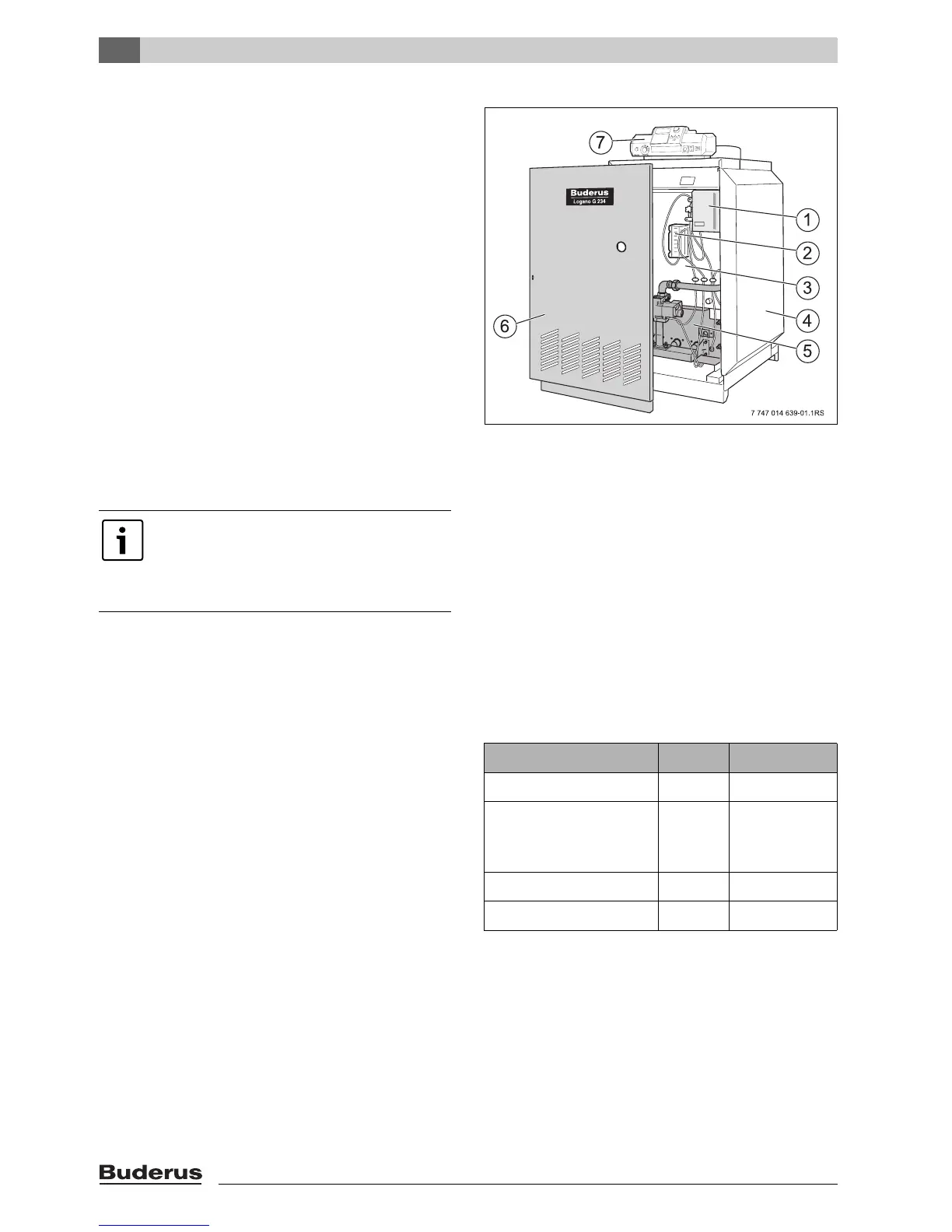

Fig. 1 G234X boiler
1 Aquastat
2 Burner control unit
3 Boiler block with thermal insulation
4 Boiler casing
5 Burner
6 Front wall of boiler
7 Logamatic 2000 control unit
2.7 Package Contents
B After delivery, check all packaging for perfect
condition.
B Check the delivery for completeness.
The boiler is supplied in one packing unit with the
mounted boiler casing, gas burner and gas fitting, and
technical documentation.
All accessories can be ordered optionally from Buderus:
• Logamatic 2000 control unit
• Heating pump
•Cleaning brush
The boiler is fully functional with the factory-
installed aquastat. A Logamatic 2000 control
can be installed in addition to the aquastat.
The control unit can be ordered as an
accessory from Buderus.
Component Qty Packaging
Boiler 1 Pallets/box
• 90°-elbow (¾ " NPT)
• Safety valve
• Drain valve (¾ ")
1Box
Vent Damper 1 Box
Technical documentation 1 Foil package
Tab. 2 Package Contents
