2
Product description
Logano G234X - Technical specifications are subject to change without prior notice.
7
2.8 Dimensions and specifications
2.8.1 Logano G234X dimensions

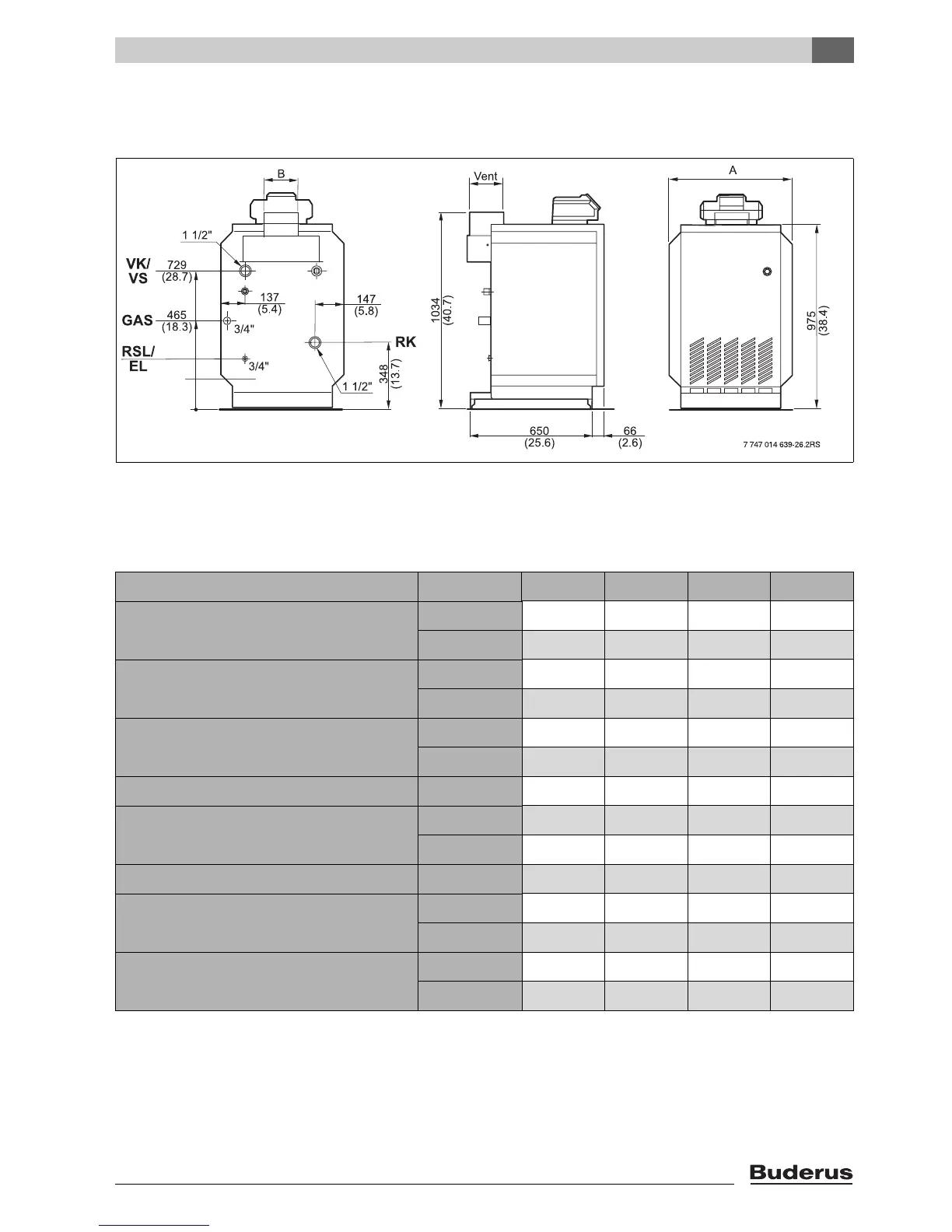

Fig. 2 Connections and dimensions for Logano G234X, dimensions in mm (dimensions in inches)
VK/VS Boiler supply/Storage tank supply
GAS Gas connection + main isolating valve
RK Boiler return
RSL/EL Return safety line/draining
Boiler capacity Unit 38 45 55 64
Ignition heat load
MBtu/hr 160 187 228 266
kW 46.9 54.8 66.8 78.0
Nominal output
MBtu/hr 130 154 188 219
kW 38 45 55 64
Dimension A
Inches 25.6 25.6 29.1 32.7
mm 650 650 739 831
Vent Inches 7778
Minimum capacity of the safety relief
valve
lb/hr 130 153 188 218
kg/h 59 69 85 99
Number of burner rods Qty 3 3 4 4
Water volume
US gal. 6.1 6.1 7.1 8.2
l 23 23 27 31
Dry weight
lbs 487 487 562 684
kg 221 221 255 310
Tab. 3 Dimensions
