Moving the boiler 5
11
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Gas Boiler Logano GC124 II/SP • Issue 07/2006
z Set the boiler cart or dolley on the front side of the
boiler and put a piece of cardboard between the two
to prevent scratches.
z Secure boiler on the boiler cart.
z Move boiler to desired location.
z Place the boiler at its final postion.
5.2 Lifting and carrying the boiler
The boiler can be picked up at the both long sides of the
boiler as shown.

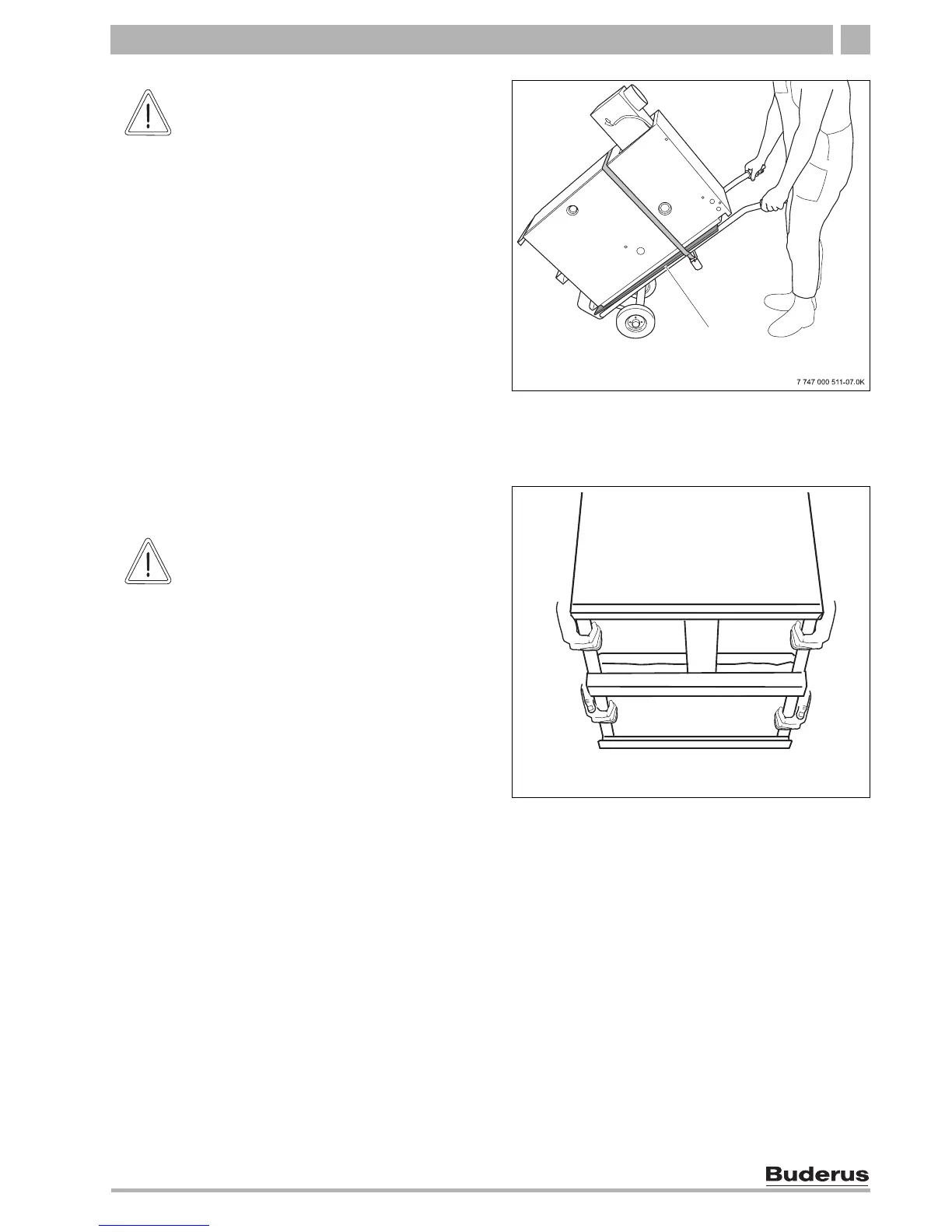

Fig. 5 Moving the boiler with dolley or boiler cart.
1 Additional card board for protection.
1
CAUTION!
RISK OF INJURY
due to improper securing of the boiler dur-
ing transport.
z Use a boiler coart or dolley and strap
for moving the boiler
z Secure boiler on the boiler cart.
z Remove the front door during lifting or
transport to prevent unintentional open-
ing.
Fig. 6 Lifting and carrying the boiler
7 747 000 511-04.0K
CAUTION!
RISK OF INJURY
due to carrying heavy loads.
z Lift and carry the boiler with at least four
people at the designated side panel lo-
cations.
