Installation and maintenance instructions Gas Boiler Logano GC124 II/SP • Issue 07/2006
We reserve the right to make any changes due to technical modifications
Dimensions and Connections3

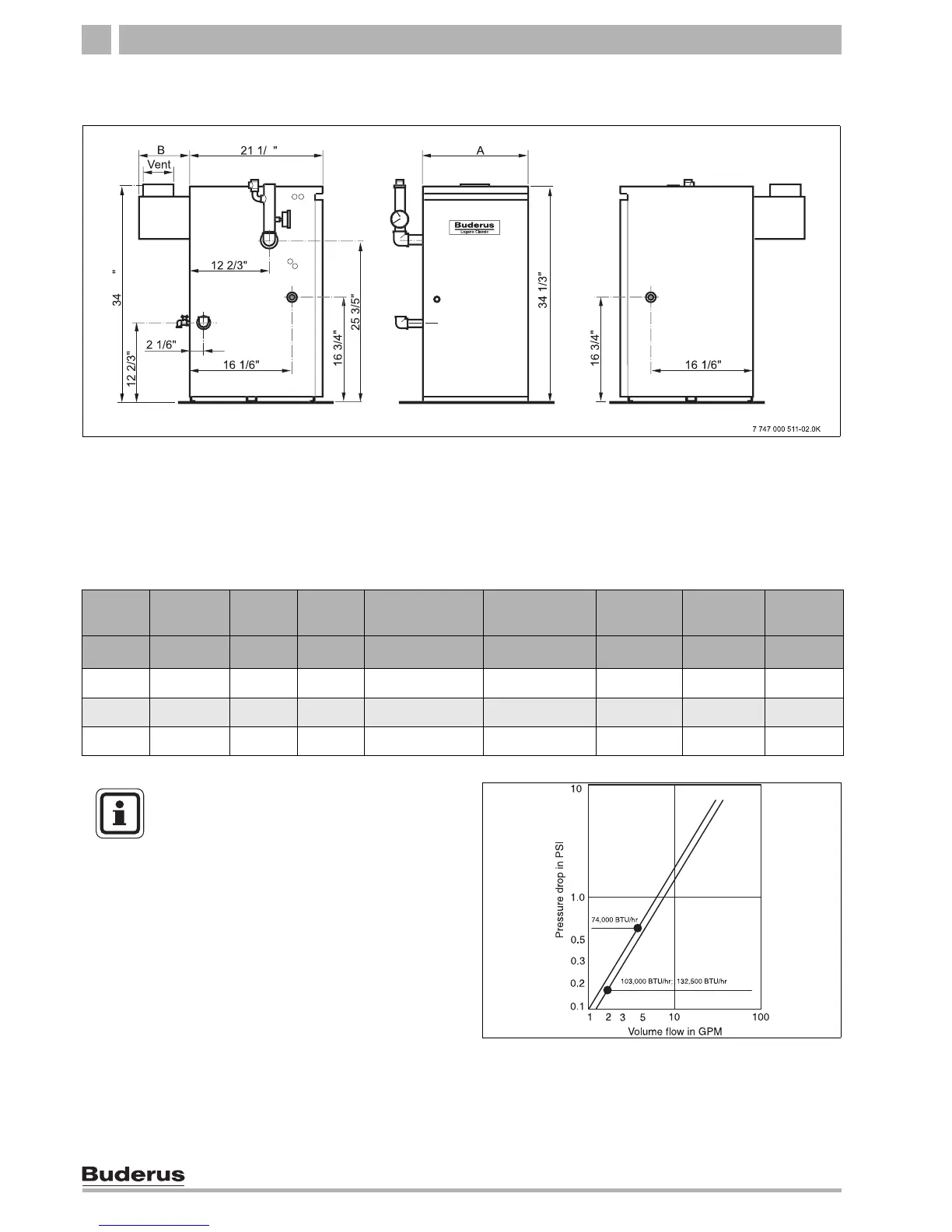

3 Dimensions and Connections
Tab. 1 Dimensions/specs for GC124 II and GC124 SP
Fig. 2 Back, side and front view, measurements in inches
* optional connection
2
3/8
RK 1¼"
VK 1¼"
GAS ½"
EL ¾"
(GAS ½")*
Connections (measurements see the following tables):
VK = Boiler supply
RK = Boiler return
EL = Boiler drain
GAS = Gas connection
Boiler
size
Boiler
input
A B Vent connection
II/SP
Min. relief valve
capacity
Number of
Orifices
Water
volume
Dry
weight
Btu/hr Inches Inches Inches lb/hr Qty. US Gal. lbs
18/3 74000 13 1/8" 8" 5" 62 2 2.4 228
25/4 103000 16 3/4" 8 2/3" 5" 86 3 2.9 287
32/5 132500 20 3/8" 9 1/2" 6" 110 4 3.4 349.5
Fig. 3 Pressure drop/boiler
USER NOTE
For the size and dimensions of the main
gas orifices, refer to Î Chapter 18,
page 79.
