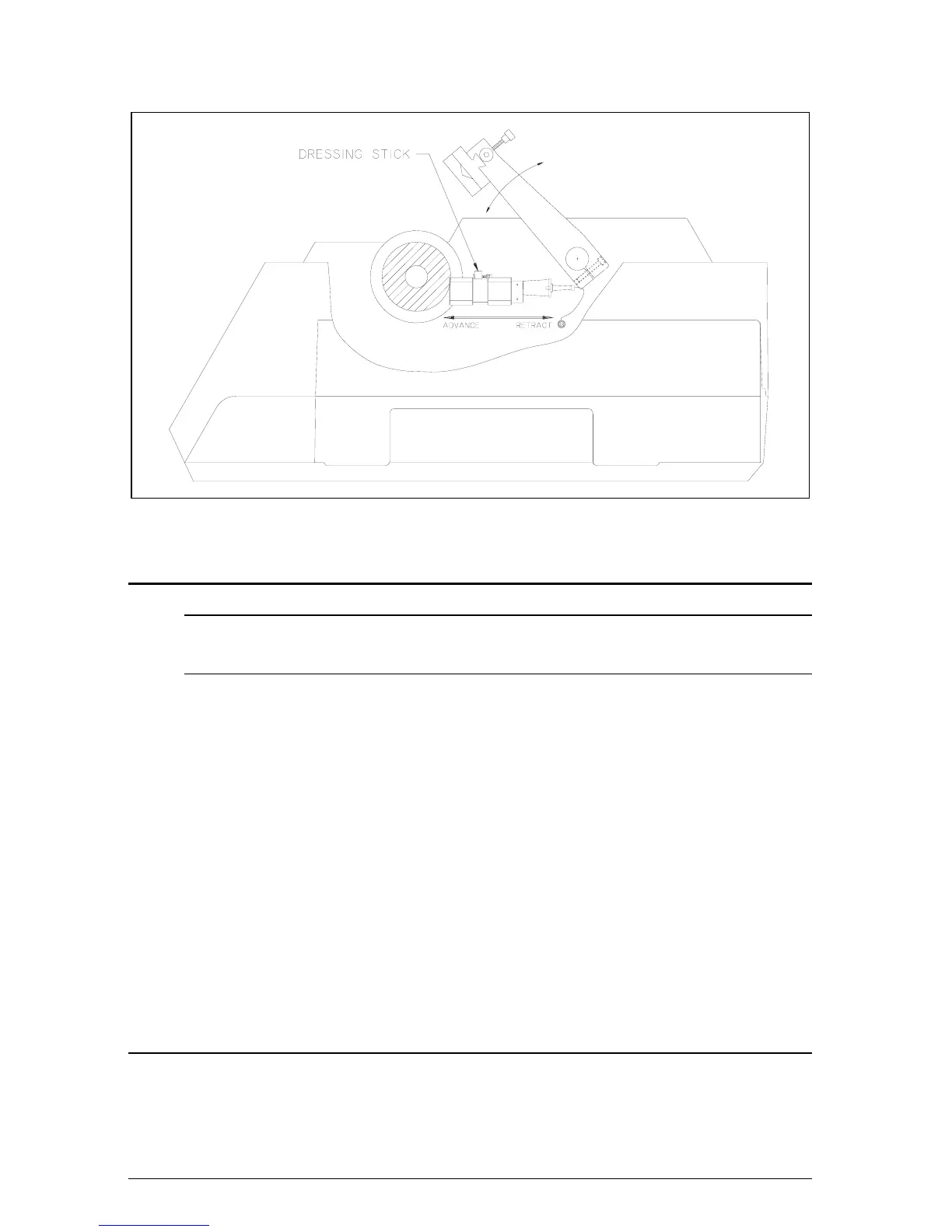

Figure 7 Dressing Chuck and Blade Dressing
Maintenance
General Specification:
1. Sound level is 77dBA maximum.
Internal Coolant/Lubricant Recirculating System
When Coolant/Lubricant is contaminated with abrasive residue or swarf, it
should be discarded and replaced.
1. To drain coolant; turn off unit, lift the hood, remove the blade and
flanges.
NOTE Retract arm to the far left position.
2. DISCONNECT THE POWER CORDS FROM THE CABINET.
3. Remove the Dressing Chuck Bracket and Coolant Assembly, and
Screen.
4. Lift the Coolant Tank at the handle and pull so that the tank slides
horizontally.
5. Thoroughly clean the Coolant Pump, Specimen Screen, Dressing
Chuck and Coolant Tank.
6. Slide the Coolant Tank back into the cabinet.
7. Place the components back into the tank as shown in Figure 8.
Connect the power cords into the correct connectors.
Cleaning the Unit
The ISOMET™ 2000 Precision Saw should be cleaned periodically to
prevent build-up of cutting residue and cutting fluids. Exterior painted
surfaces including the cutting chamber may be cleaned with non-abrasive
household cleaners.
11
