Oil Exhaust Blower
Page 33 of 37
• Remove Left Side Panel
o Loosen the two screws (if your side
panel is slotted) or remove the two
screws (if your side panel has
holes) at the back of the left side
panel of the stove (left as you are
looking at the stove from the front)
that hold the left side panel in
place.
o Open the burn chamber door and
heat exchanger door about half
way (45 degrees).
o Pull the back of the left side panel
away from the stove 1” to 2”.
o Push forward on the side panel
(toward the front of the stove) to
free it from the stove; you may
need to “bump” the side panel
forward with the palm of your hand
to free it.
• Locate the oil port on exhaust blower

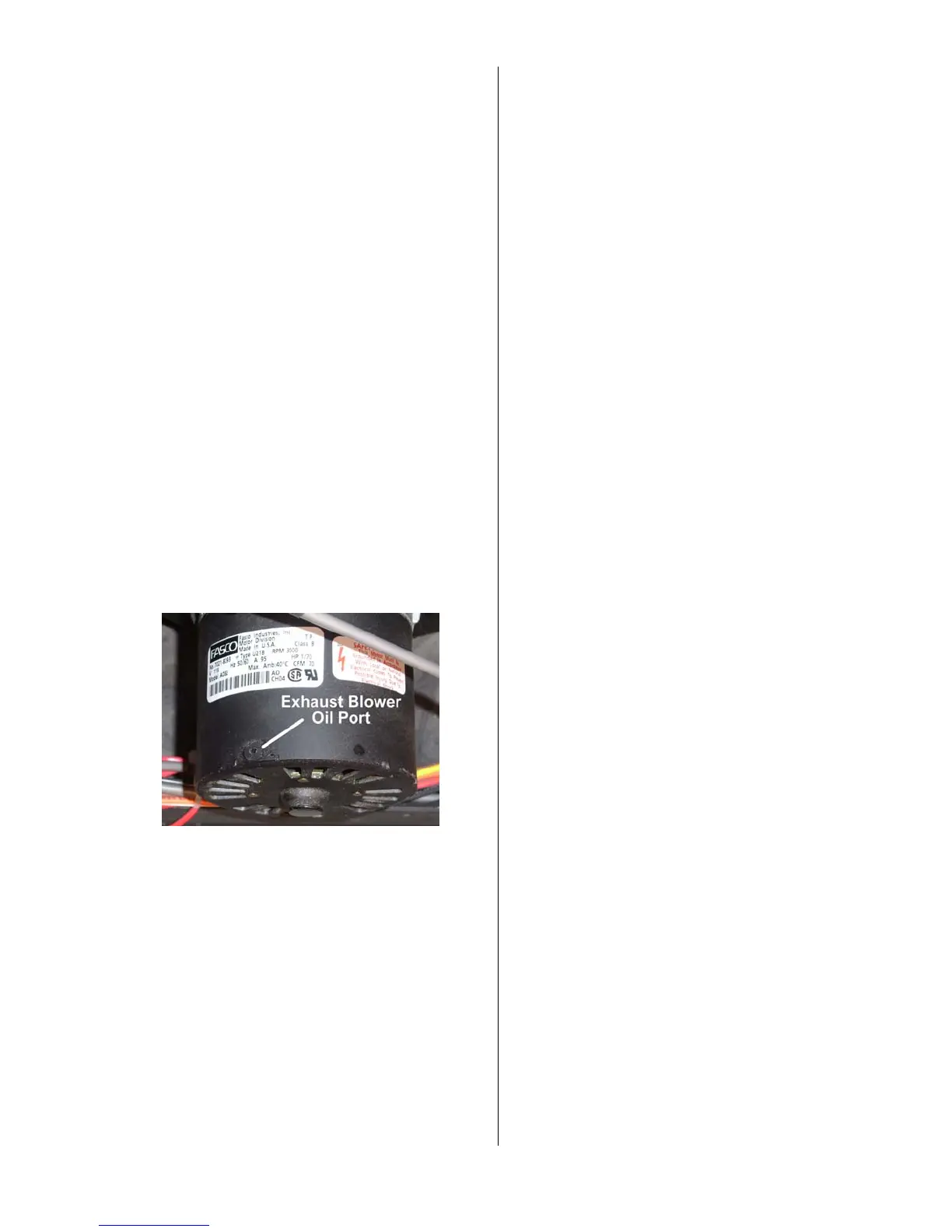

(figure 26).
Figure 26
• Put two drops of oil into oil port on the
exhaust blower.
• Reinstall left side panel.
o Open the burn chamber and heat
exchanger doors to approximately
45 degrees.
o Holding the side panel with two
hands, align the front of the side
panel so it fits around the hinges of
both doors.
o Moving the front of the panel as far
forward as possible (front of panel
just behind the end of the burn
chamber and heat exchanger
doors) push the front of the panel
flush against the side of the stove.
o Holding the front of the panel flush
against the side of the stove, slide
the panel toward the rear of the
stove. The front of the panel has
two slots, which will catch behind
Phillips head screws mounted on
the side of the stove (one near the
top, one near the bottom) to hold
the front of the panel in place.
o After the front of the panel is
secured behind the two Phillips
head screws, push the back lip of
the panel around the back of the
stove.
o Reattach the back of the side panel
to the stove using two screws
mounted through either holes or
slots on the back of the side panel.
• After the stove has been fully
reassembled, reattach the power cord
• Toggle the power switch to the “On”
position to turn the power on and
immediately hold the set button and
low buttons down to lower the set
temperature of the stove. Lower the
set temperature to the lowest available
setting, 50F.
• The exhaust blower will turn on and
run for 30 minutes. This 30 minutes of
run time will give the oil applied to the
exhaust motor sufficient time to
thoroughly lubricate the exhaust motor.
• After 30 minutes the exhaust blower
will turn off.
Resume normal stove operation.
