Specifications
Heating Specifications
BTU output range: 6,500 to 42,000 BTU
Circulation blower size: 265 CFM
Efficiency: 87%
Flue size: 3”
Air intake size: 2”
Approximate maximum heating capacity: 1200 to 1800+ sq. ft.
Burn Rate: 0.8 to 5.0 lbs./hour
Maximum burn time at lowest setting (manual control): 62 hours (50/0.8)
Maximum burn time (automatic temperature control): 72 hours plus*
*
Dependent upon thermal load of the installation
Hopper Capacity, Standard: 50 lbs.
Hopper Capacity, Extended: 90 lbs.
Dimensions
Width (A): 26”
Depth (G): 29”
Height, standard hopper (B): 30”
Height, extended hopper: 37”
Exhaust location
Side to center of exhaust (D): 3 7/8”
Bottom to center of exhaust (E): 17 1/8”
Fresh air intake location
Side to center of fresh air intake (C): 8 3/8”
Bottom to center of fresh air intake (F): 13 3/8”

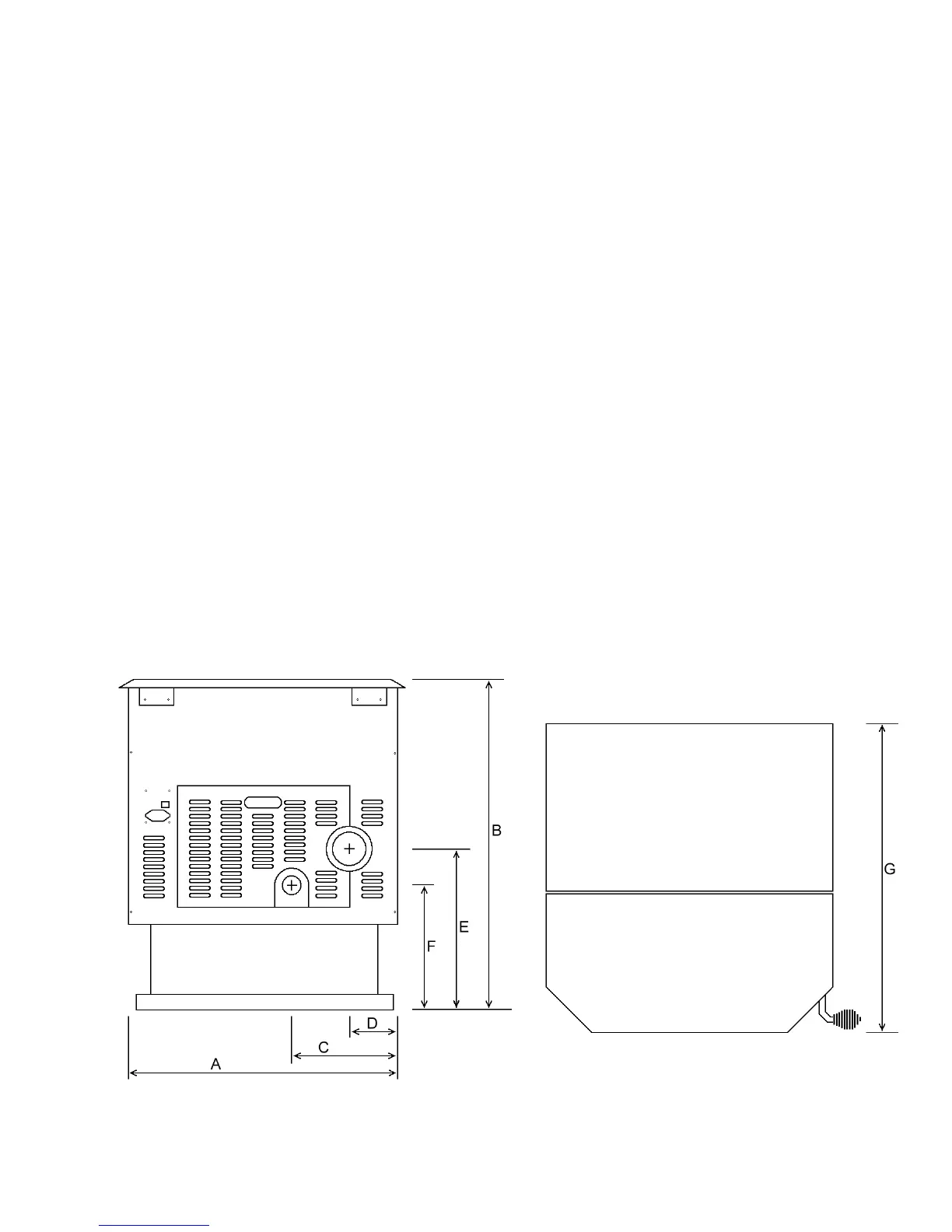

Figure 1: Rear view Figure 2: Top Down View
