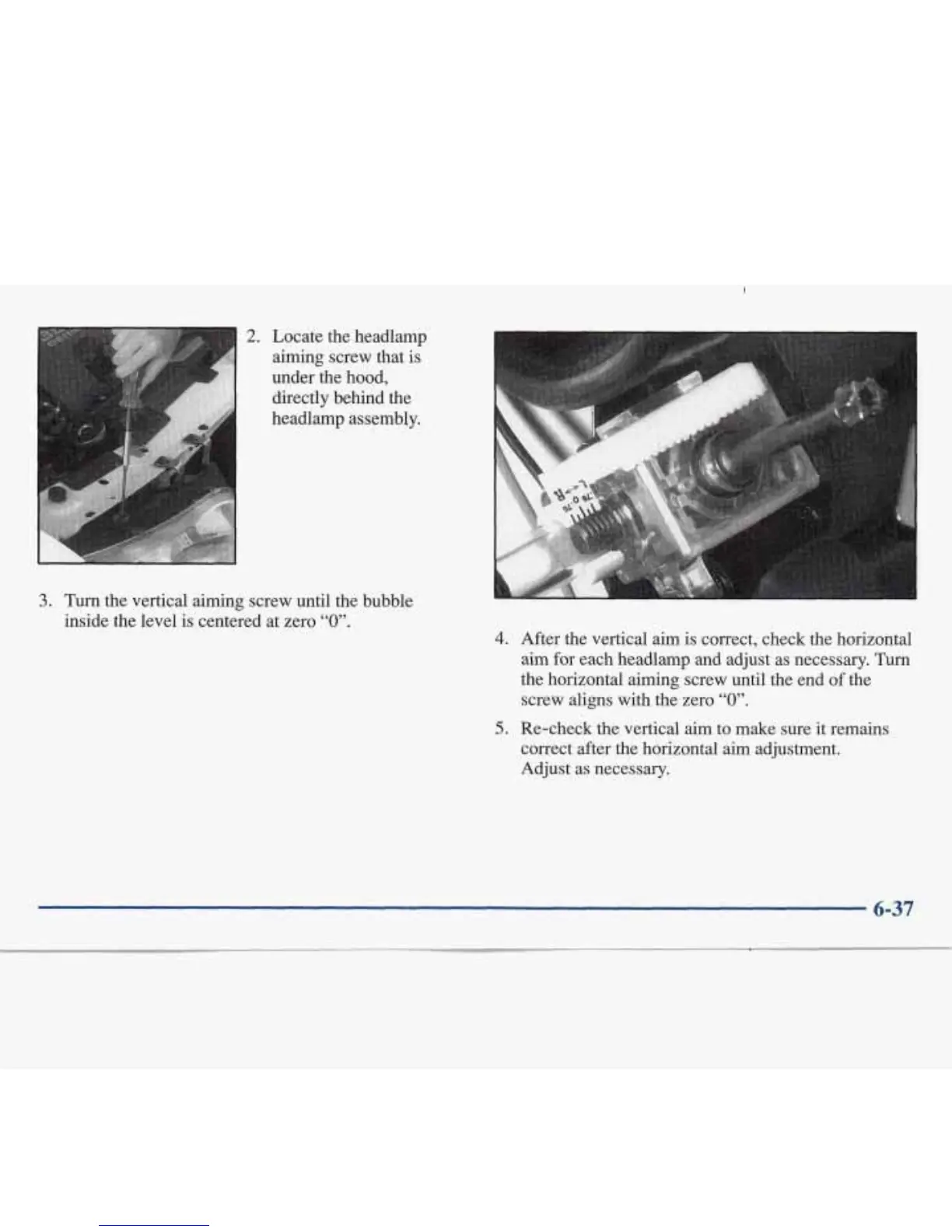

2.
Locate the headlamp
aiming screw that is
under the hood.
3.
Turn
the vertical
aiming
screw until the bubble
inside the level is centered at zero
“0”.
4.
After the vertical aim is correct, check the horizontal
aim for each headlamp and adjust as necessary.
Turn
the horizontal aiming screw until the end
of
the
screw aligns with the zero
“0”.
5.
Re-check the vertical
aim
to make sure it remains
correct after the horizontal aim adjustment.
Adjust as necessary.
6-37
