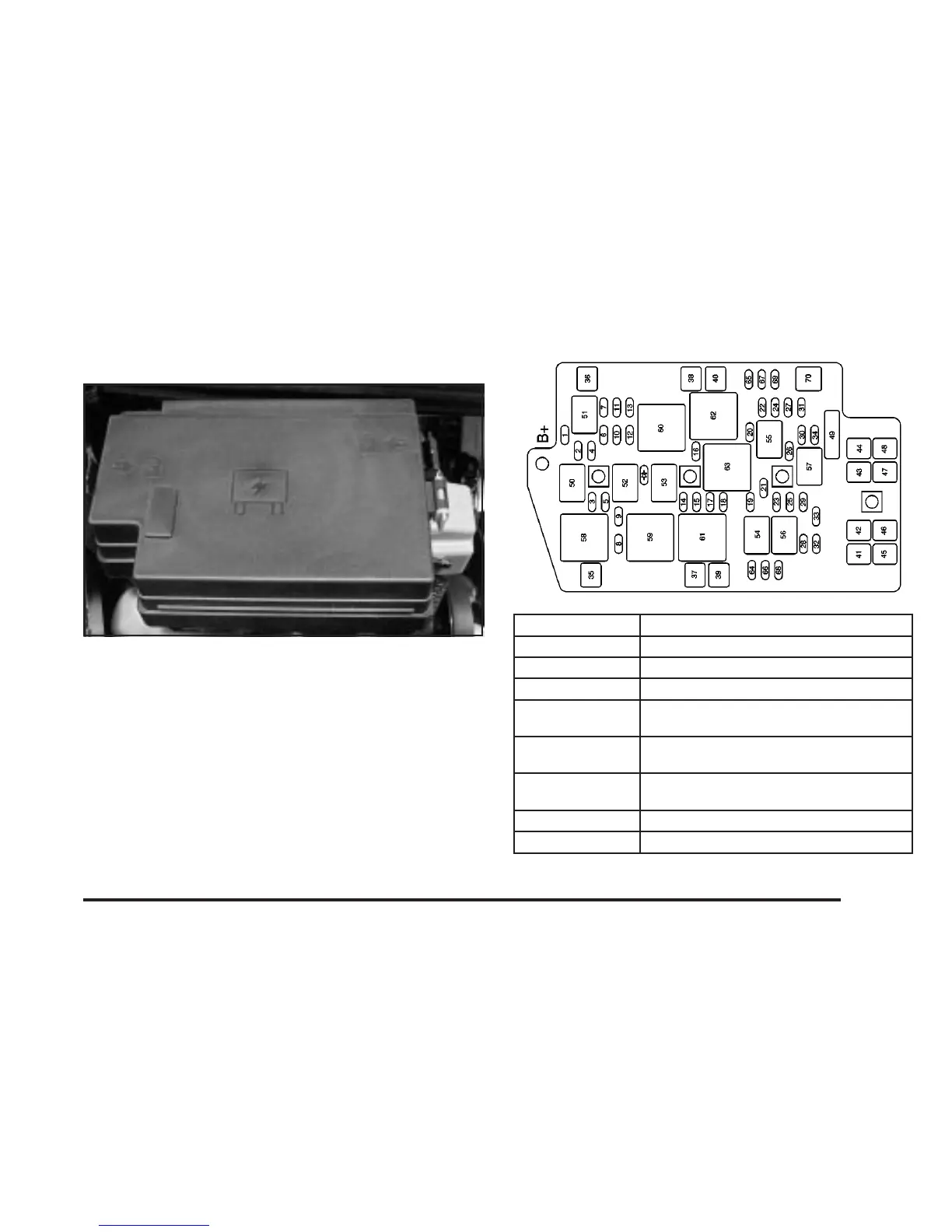

Underhood Fuse Block
This fuse block is located in the engine compartment,
on top of the windshield washer fluid reservoir.
See
Engine Compartment Overview on page 5-10
for
more information on location.
The fuses marked spare are available if a replacement
fuse is needed.
To remove the cover, press the two tabs in and lift up
the cover.
Fuse Usage
1 Fuel Pump
2 Air Conditioning Compressor Clutch
3 Horn
4
Engine Controls-Emissions and
Sensors
5
Power Control Module
(PCM)-Battery Power
6
Anti-Lock Brakes (ABS) Control
Module
7 Transaxle Solenoids
8 Spare
