OX CNC Assembly Instructions 10 v1.1
© Bulk Man 3D 2019
X-Axis Gantry Assembly – Back Plate

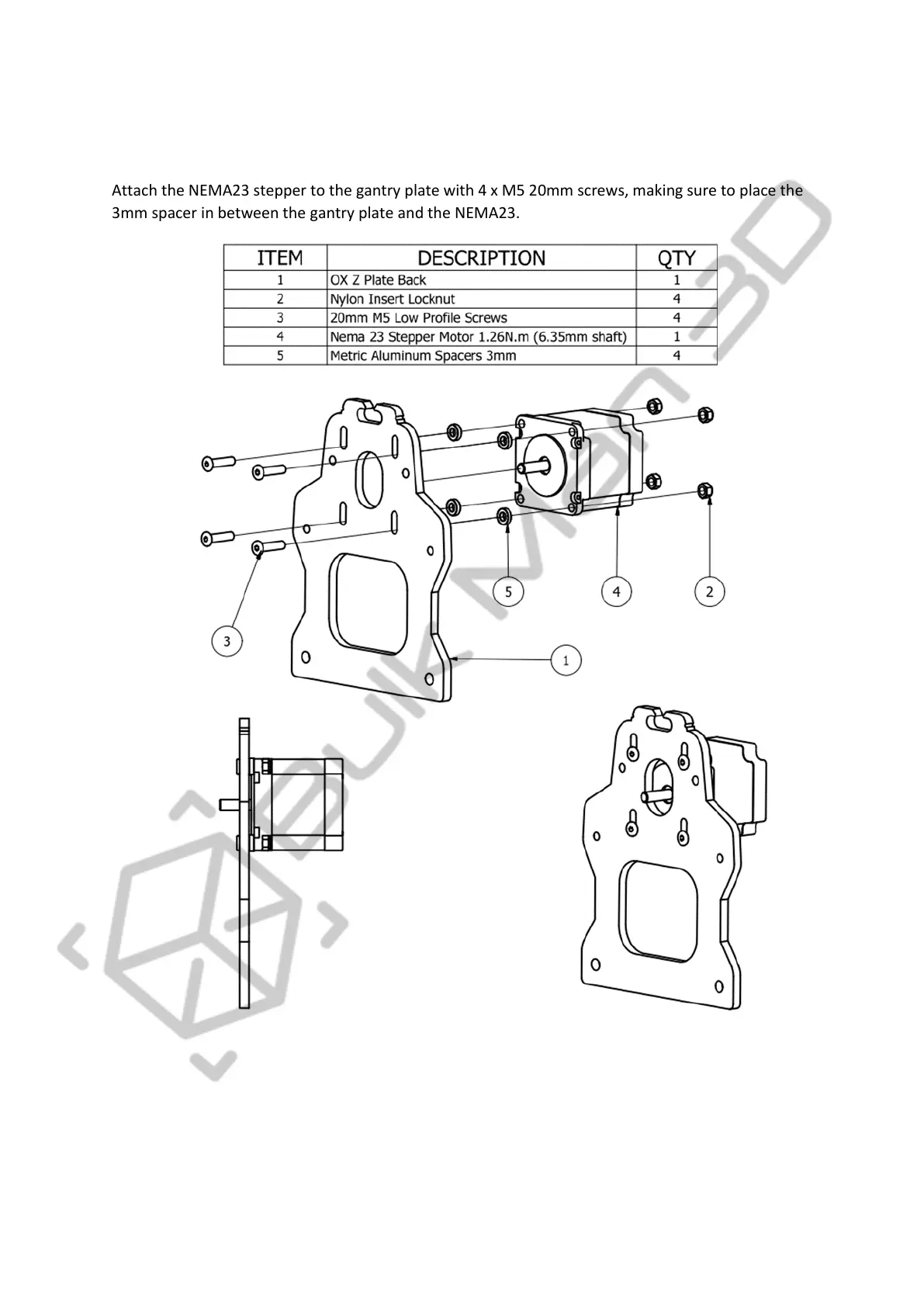

Attach the NEMA23 stepper to the gantry plate with 4 x M5 20mm screws, making sure to place the
3mm spacer in between the gantry plate and the NEMA23.
