OX CNC Assembly Instructions 11 v1.1
© Bulk Man 3D 2019
X-Axis Front and Back Plate Assembly

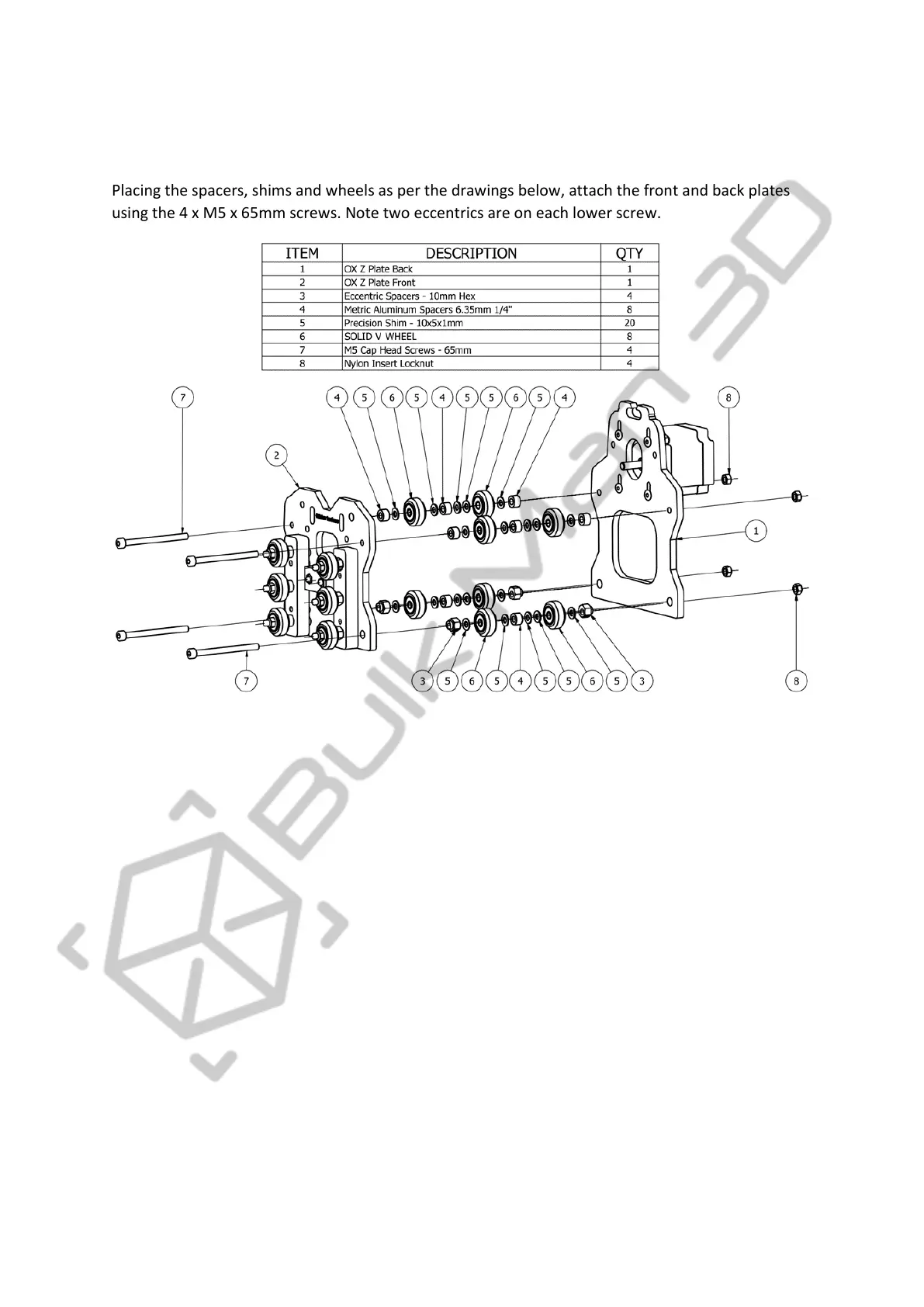

Placing the spacers, shims and wheels as per the drawings below, attach the front and back plates
using the 4 x M5 x 65mm screws. Note two eccentrics are on each lower screw.
