OX CNC Assembly Instructions 19 v1.1
© Bulk Man 3D 2019
X-Axis Gantry Assembly

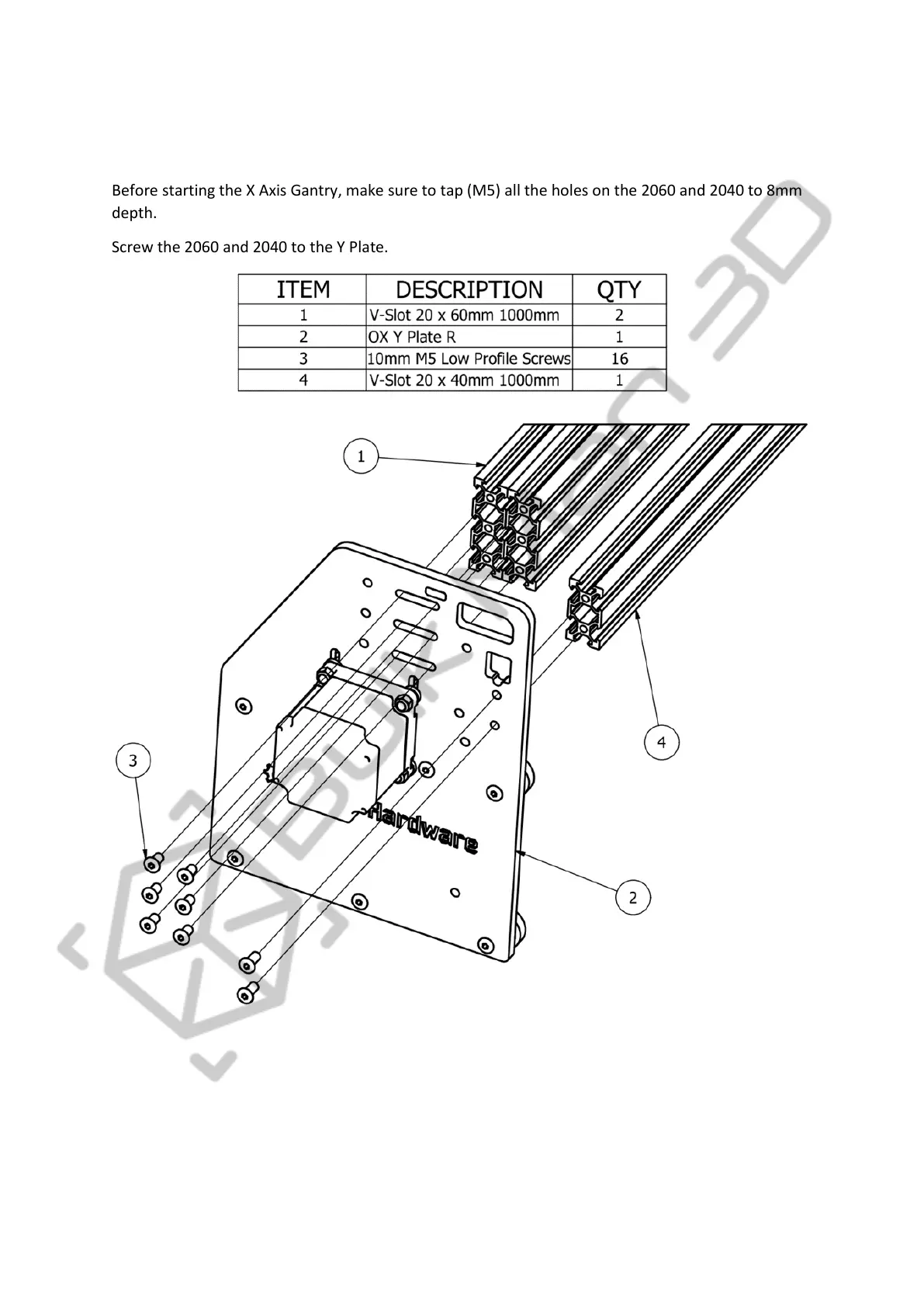

Before starting the X Axis Gantry, make sure to tap (M5) all the holes on the 2060 and 2040 to 8mm
depth.
Screw the 2060 and 2040 to the Y Plate.
